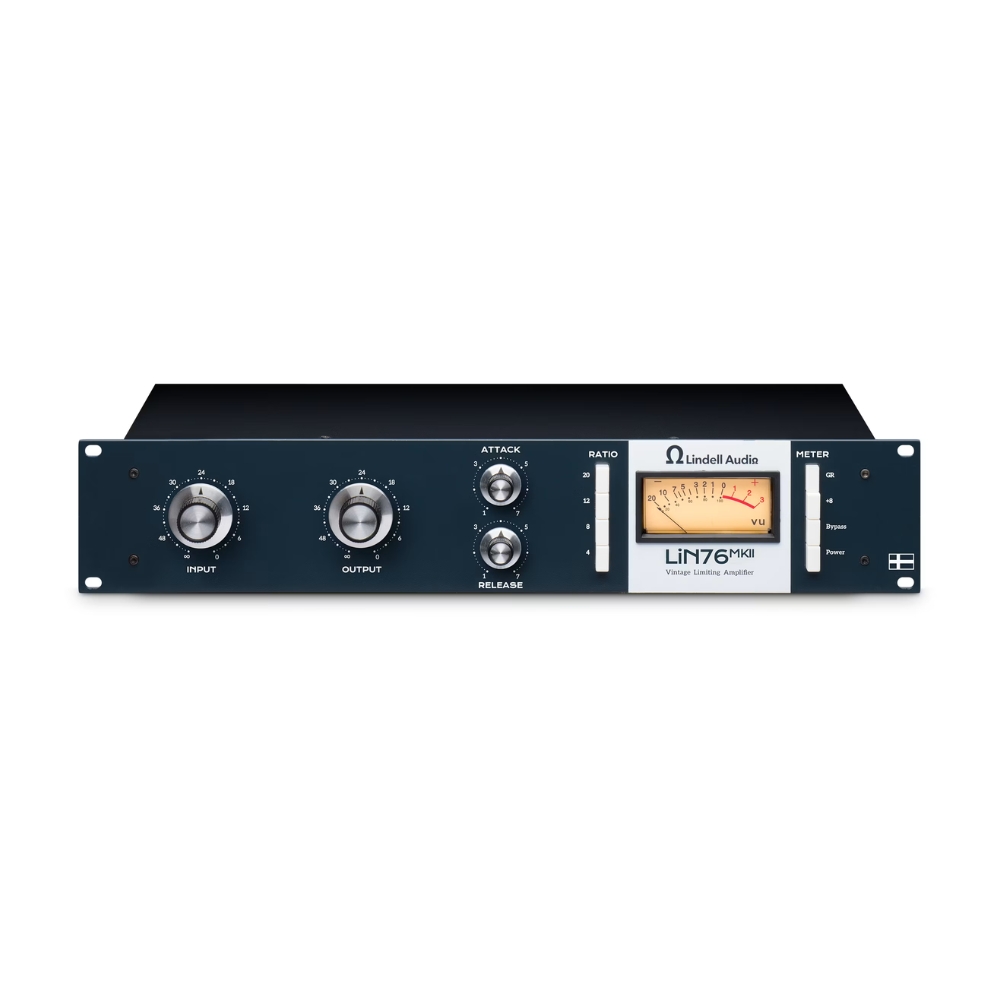

Lindell Audio LiN76 MkII – Classic 76-Style Compressor w/ True Bypass, Stereo Linking & Redesigned Compression Circuit

OVERVIEW

The Lindell Audio LiN76 MkII builds on the success of the original LiN76 with a series of updates developed from four years of customer feedback and feature requests. At its core is a versatile 76-style compressor capable of everything from gentle, transparent programme compression to aggressive, pulsing drum processing. Its traditional 76 control scheme provides variable attack and release times, including ultra-fast settings, while five compression modes – 4:1, 8:1, 12:1, 20:1 and All-Buttons-In – provide extensive control over dynamics and character.

The LiN76 MkII takes a “best of all worlds” approach to its analogue architecture, combining elements inspired by multiple classic 76 circuit revisions. Its input stage draws on the clean preamplification characteristics of the classic Rev. G and Rev. D designs, while the compression stage incorporates a FET selected for its tone character and a custom-made transformer designed for Lindell Audio. The output stage takes inspiration from the Rev. A circuit, known for becoming noticeably dirty when pushed, allowing the compressor to move from clean and controlled to gritty and colourful depending on how its input and output stages are driven.

The MkII also introduces a redesigned compression circuit with higher performance and low noise, along with a new internal power supply and IEC cable that eliminates the need for a bulky external power supply. True bypass makes A/B comparisons fast and straightforward, while an RCA stereo-link connection allows two LiN76 MkII units to operate as a balanced, matched stereo pair. A new meter calibration control provides additional flexibility for fine-tuning VU meter performance, making the LiN76 MkII a refined and highly versatile addition to professional studio setups.

KEY HIGHLIGHTS

Classic 76-Style Dynamics Processing

The LiN76 MkII delivers a broad range of 76-style compression, from subtle programme control and vocal shaping through to aggressive, heavily compressed and characterful drum processing.

Best-of-All-Worlds Analogue Circuit Design

Lindell Audio combines selected characteristics from multiple classic 76 revisions, using different circuit influences across the input, compression and output stages to provide a versatile range of tonal options.

Redesigned Low-Noise Compression Circuit

The MkII features a completely redesigned compression circuit developed to provide higher performance and lower noise while retaining the character expected from a classic 76-style compressor.

Custom-Made Transformer

A custom-made transformer is used within the compressor circuit, contributing to the unit’s analogue character and helping provide a broad range of tonal possibilities.

Five Compression Ratio Modes

Selectable 4:1, 8:1, 12:1 and 20:1 ratios provide conventional dynamics control, while the All-Buttons-In mode delivers a more aggressive and characterful compression response.

True Bypass

True bypass allows the compressor to be quickly removed from the signal path, making A/B comparisons of processed and unprocessed signals simple and immediate.

Matched Stereo Linking

Two LiN76 MkII units can be linked for balanced, matched stereo operation using the dedicated RCA stereo-link connection.

Ultra-Fast Attack & Variable Release

Variable attack and release controls provide flexible dynamics shaping, including ultra-fast attack settings for controlling sharp transients and creating more aggressive compression effects.

Vintage-Style VU Meter

The vintage-style VU meter provides visual monitoring of compressor operation, while the new meter calibration control allows fine-tuning of meter performance.

Integrated Power Supply

The MkII incorporates a new internal power supply and IEC cable, eliminating the need for a bulky external power supply and simplifying studio installation.

FEATURES

• Classic 76-style FET compression
• Versatile dynamics processing from transparent programme compression to aggressive, crushed effects
• “Best of all 76 worlds” circuit design
• Input circuit inspired by classic Rev. G and Rev. D designs
• Compression circuit featuring a FET selected for its tone character
• Output circuit inspired by the Rev. A design
• Custom-made transformer
• Completely redesigned compression circuit
• Higher-performance, low-noise compression
• Traditional 76-style Attack and Release control scheme
• Variable attack and release times
• Ultra-fast attack options
• 4:1 compression ratio
• 8:1 compression ratio
• 12:1 compression ratio
• 20:1 compression ratio
• All-Buttons-In compression mode
• True bypass
• Stereo linking for matched stereo operation
• Vintage-style VU meter
• Meter calibration control
• Balanced audio operation
• Internal power supply
• IEC power connection
• Suitable for vocals, drums, instruments, mix processing and creative compression

TECHNICAL SPECS

Product & Circuit Specifications

Product Type: 76-style FET compressor
Processing Type: Analogue dynamics processing
Circuit Design: Best-of-all-worlds combination of classic 76-inspired circuit revisions
Input Circuit Inspiration: Rev. G / Rev. D
Compression Circuit: Redesigned FET-based circuit
Compression FET: FET selected for tone character
Output Circuit Inspiration: Rev. A
Transformer: Custom-made transformer
Compression Circuit Performance: Redesigned for higher performance and low noise

Compression Controls

Compression Ratios: 4:1 / 8:1 / 12:1 / 20:1 / All-Buttons-In
Attack: Variable
Release: Variable
Attack Character: Ultra-fast attack options
Control Scheme: Traditional 76-style Attack / Release operation

Metering & Monitoring

Meter: Vintage-style VU meter
Meter Calibration: Internal calibration control for fine-tuning VU meter performance
True Bypass: Yes
A/B Comparison: Supported via true bypass

Stereo Linking

Stereo Link: Yes
Connection: RCA jack
Operation: Balanced, matched stereo operation using two LiN76 MkII units

Audio Connections

Input: Balanced
Output: Balanced

Power & Physical Configuration

Power Supply: Internal
Power Connection: IEC cable
External Power Supply: Not required
Chassis Configuration: Rackmount studio processor

DOWNLOADS

• LiN76 MkII – Owner’s Manual
• LiN76 MkII – Product Brochure
