Black Lion Audio PBR XLR 16F DSub – 16-Point Gold-Plated Female XLR/DB25 Patchbay

OVERVIEW

Studio Grade Connectivity

Your studio needs more than just accessible patching – exceptional audio quality through the entire signal path is crucial! Black Lion has been improving already-great gear through their modification service for years, and they have channelled all that know-how straight into the PBR XLR 16F DSub.

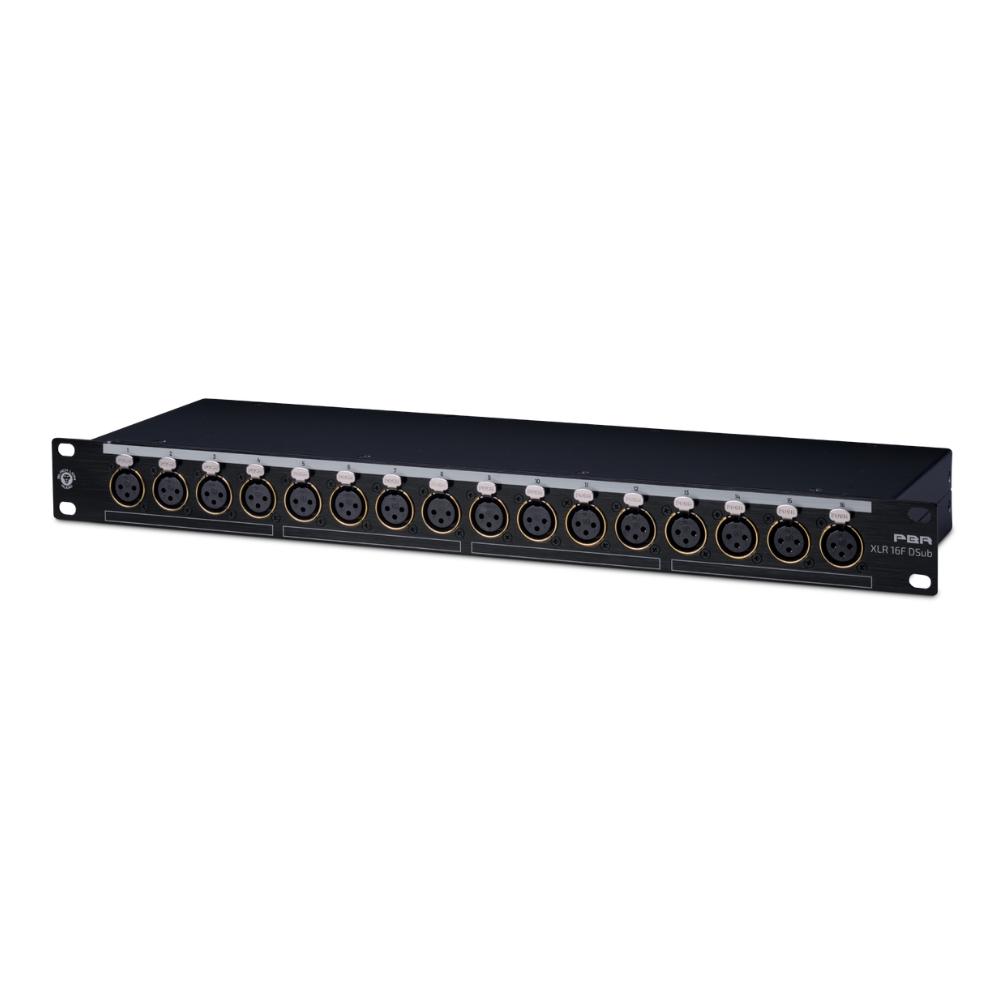

The PBR XLR 16F DSUB is a 16-point female XLR/DB25 patchbay, suitable for the most robust routing imaginable in a single rack space. You’ll minimise the cable chaos when connecting up to 16 mics to your mixer, interface, or outboard hardware… no more throwing your back out or bonking your head on the underside of your desk trying to access hard-to-reach inputs.

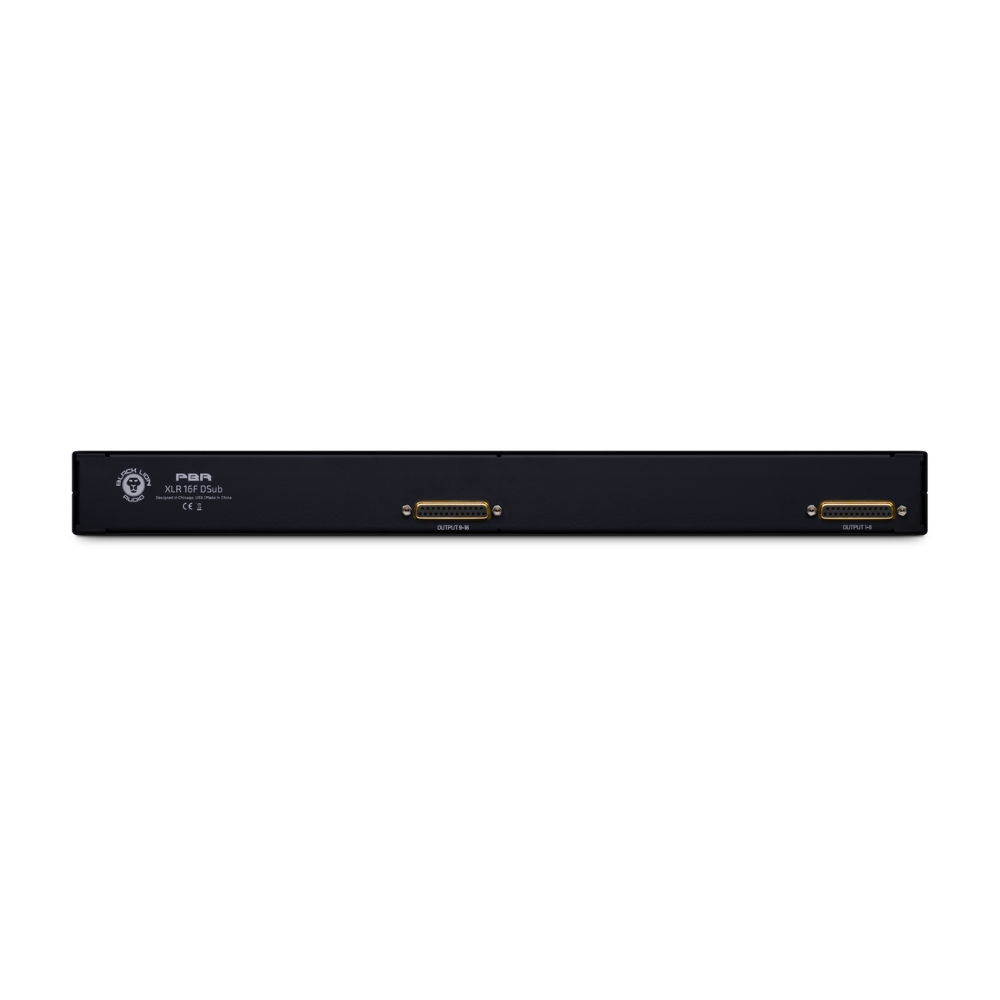

Its 16 audiophile-grade, gold-plated XLR connections ensure maximum signal conductivity and signal clarity. The two rear-mounted DB25 connections are ideal for connecting to your mixer or interface, and are securely mounted to an internal steel backplate to prevent wear from frequent reconnections.

Black Lion’s team of engineers have worked tirelessly to ensure that the PBR XLR 16F DSub delivers proper quality through-and-through. It’s built Black Lion-tough, with a reinforced steel chassis and black-anodised aluminium faceplates that make for a matched and sophisticated look.

Custom patch labels are included, and also available at blacklionaudio.com or from our partners at PatchCAD.

Not Your Average Patchbays

Configure your studio with the best: Black Lion Audio PBR Series Patchbays. Your recordings deserve the best, and maintaining a great signal path is crucial!

Also available:

• PBR TRS: 48-Point Gold-Plated TRS Patchbay
• PBR TRS3: 48-Point Gold-Plated TRS Patchbay
• PBR TT: 96-Point Gold-Plated TT/DB25 Patchbay
• PBR XLR: 16-Point Gold-Plated XLR Patchbay
• PBR XLR 32 DSub: 32-point Gold-Plated XLR/DB25 patchbay
• PBR XSplit8: 8-channel Gold-Plated passive XLR mic splitter
• PBR TRS3 LIT: 48-Point Gold-Plated TRS Patchbay with 3-way switching and customizable LED display
• PBR TT LIT: 96-Point Gold-Plated TT/DB25 Patchbay with customizable LED display
• PBR 8-500: 500-Series 8-Slot Rack/PSU with Built-in Patchbay

KEY HIGHLIGHTS

Studio-Grade Signal Integrity:

Built with audiophile-grade, gold-plated XLR and DB25 connectors, the PBR XLR 16F DSub ensures maximum conductivity, minimal signal loss, and pristine audio clarity from mic to mixer.

Eliminate Cable Chaos:

Route up to 16 microphones into your interface, mixer, or outboard gear in a single rack space, keeping your studio organised and your workflow efficient.

Built Black Lion Tough:

A reinforced steel chassis with a black-anodized aluminium faceplate delivers durability for demanding studio environments while maintaining a clean, professional aesthetic.

Secure DB25 Connectivity:

Rear-mounted chassis-secured DB25 connectors are fixed to an internal steel backplate, preventing wear and ensuring reliability even with frequent re-patching.

Expandable Patchbay Ecosystem:

Part of the Black Lion Audio PBR Series, making it easy to expand or match your studio routing with compatible TRS, TT, XLR, and splitter solutions.

FEATURES

• 16 audiophile-grade gold-plated XLR connectors
• 2 audiophile-grade gold-plated DB25 connectors
• Black-anodized aluminium faceplate, reinforced steel chassis, and secure chassis-mounted DB25 connectors
• Includes front panel labels
• Exceptional value for the price
• Built Black Lion tough

TECHNICAL SPECS

Type: 16-Point XLR to DB25 Patchbay

XLR Connections: 16 × Audiophile-Grade Gold-Plated Female XLR

DB25 Connections: 2 × Audiophile-Grade Gold-Plated DB25

Rack Size: 1RU, 19” Rack-Mount

Chassis: Reinforced Steel Construction

Front Panel: Black-Anodised Aluminium Faceplate

DB25 Mounting: Secure, Chassis-Mounted Connectors with Internal Steel Backplate

Labelling: Includes Front Panel Patch Labels

Custom Labels: Compatible with PatchCAD Custom Labelling
