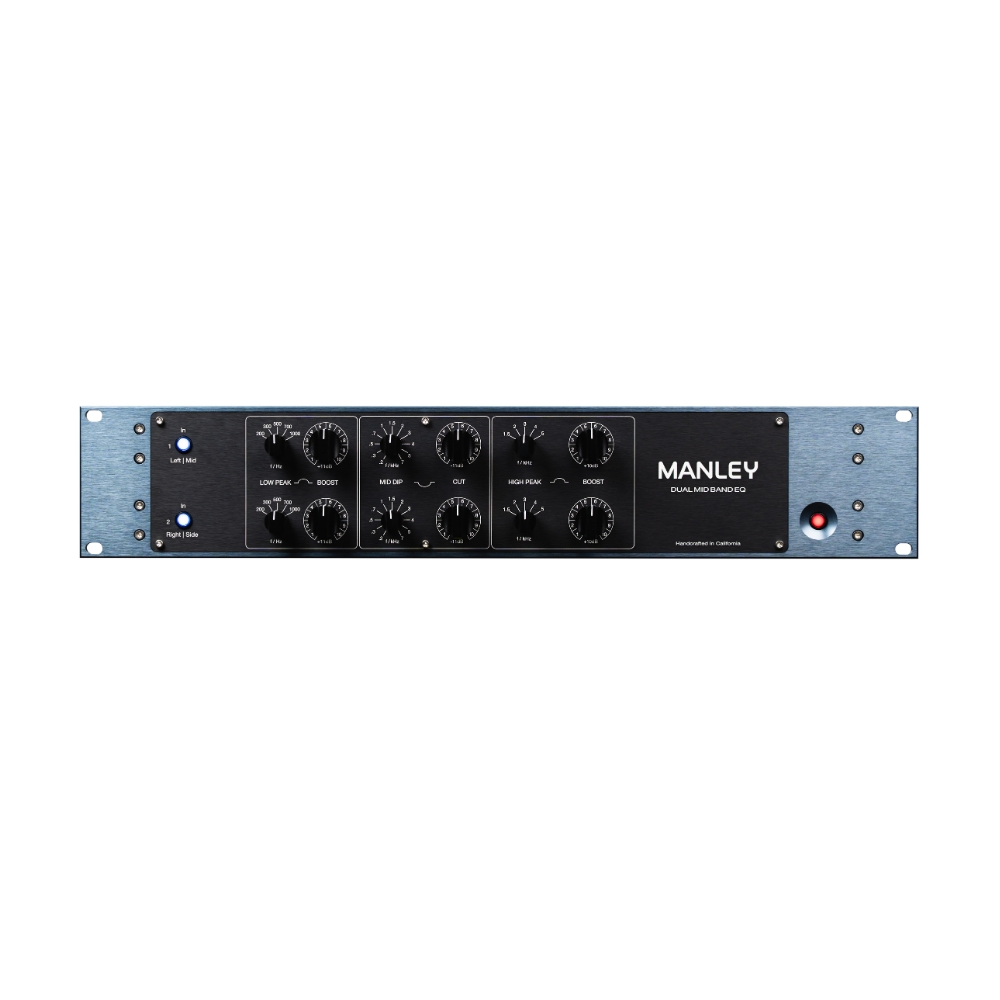

Manley Dual Mid Band EQ – 2-Channel Passive Inductor-Based Equalizer

INTRODUCTION

The Manley Labs Dual Series EQs take a classic passive topology and push it to maximum performance. Each unit combines a passive inductor-based equalization network, high-voltage tube makeup gain, and custom Manley transformer-coupled outputs into a single signal path designed to enhance source content while creating needed flexibility and adjustment.

The passive network provides broad, phase-coherent frequency shaping. The tube amplification stage preserves dynamics and headroom. The transformers contribute weight, dimensionality, and harmonic character. The whole design centres around stereo image stability, low-frequency authority, perceived depth, transient behaviour, and overall musical cohesion.

Expanded frequency selections, precision stereo pairing, dual-channel operation, and modern mastering-grade performance extend the flexibility of the platform without sacrificing the intuitive control interaction that has made this style of equalizer a studio favourite for decades.

“Some equalizers change frequency response. The best equalizers change the way a record feels.”

The Dual Mid Band EQ and Dual Main EQ were built around that distinction. Both combine passive inductor-based EQ networks, high-voltage tube gain stages, and custom Manley Iron transformers into dual-channel processors capable of shaping far more than tonal balance alone.

The Dual Mid Band EQ focuses on intelligibility, separation, and focus. The Dual Main EQ excels at adding weight, dimension, and authority. Used independently or together, they provide a powerful and cohesive set of tools for recording, mixing, and mastering engineers.

The Dual Series as a System

The Dual Mid Band EQ and Dual Main EQ were designed together as a complete analog master-bus EQ system. The Dual Mid Band EQ handles the midrange; the Dual Main EQ handles lows and highs. Together they cover the full frequency spectrum with a coherent, matched character — and the Manley sound throughout.

OVERVIEW

The Manley Dual Mid Band EQ is one of Manley’s 2026 flagship equalizers, along with the Dual Main EQ — modernised, true-stereo evolutions of two of the most respected passive EQ designs in professional audio. Built for mix-bus work, mastering chains, and high-end tracking. Individually exceptional, together unmatched.

Each unit combines a passive inductor-based EQ network, high-voltage tube makeup gain, and custom in-house wound Manley Iron transformers into a dual-channel signal path designed to do more than adjust tone. The result is equalization that shapes weight, dimension, depth, and musical cohesion — not just frequency balance.

The Dual Mid Band EQ provides mastering-grade midrange control with smooth, musical precision — shaping presence, clarity, and punch without harshness. The Dual Main EQ delivers authoritative low-end weight, open and musical highs, and dimensional depth. Together they form a complete master-bus EQ system; each equally capable as a standalone processor on sources, stems, buses, and mastering chains.

Updated ergonomics, L/R and M/S labelling, and the new Manley logo. Universal switchmode power supply — compatible with all mains voltages, contributing to the unit’s extended headroom and low noise floor. Handbuilt in California.

KEY HIGHLIGHTS

The Curve Is Only Part of the Sound

The Dual Series combines passive filtering, tube makeup gain, custom transformers, and high-headroom analog operation into a complete signal path. The interaction of the filters, boost, and cut overlaps results in highly musical curves — but the components behind the scenes are why these equalizers sound substantial, dimensional, and composed in ways beyond their frequency behaviour alone.

Passive Inductor-Based Equalization

The Dual Series uses passive inductor-based networks rather than active gain stages inside the EQ circuit. This approach is less convenient and more expensive to execute well, but it remains one of the reasons passive equalizers continue to be valued by serious engineers. The curves are broad, natural, and interactive — encouraging decisions based on musical relationships rather than isolated frequency problems.

Natural Curves and Phase-Coherent Behaviour

The passive networks create tonal changes that remain integrated into the source. Large moves do not automatically sound heavy-handed, and small moves can change the perspective of a mix without calling attention to the tool. The result is equalization that tends to preserve depth, transient behaviour, and musical continuity.

Manley Tube Makeup Gain

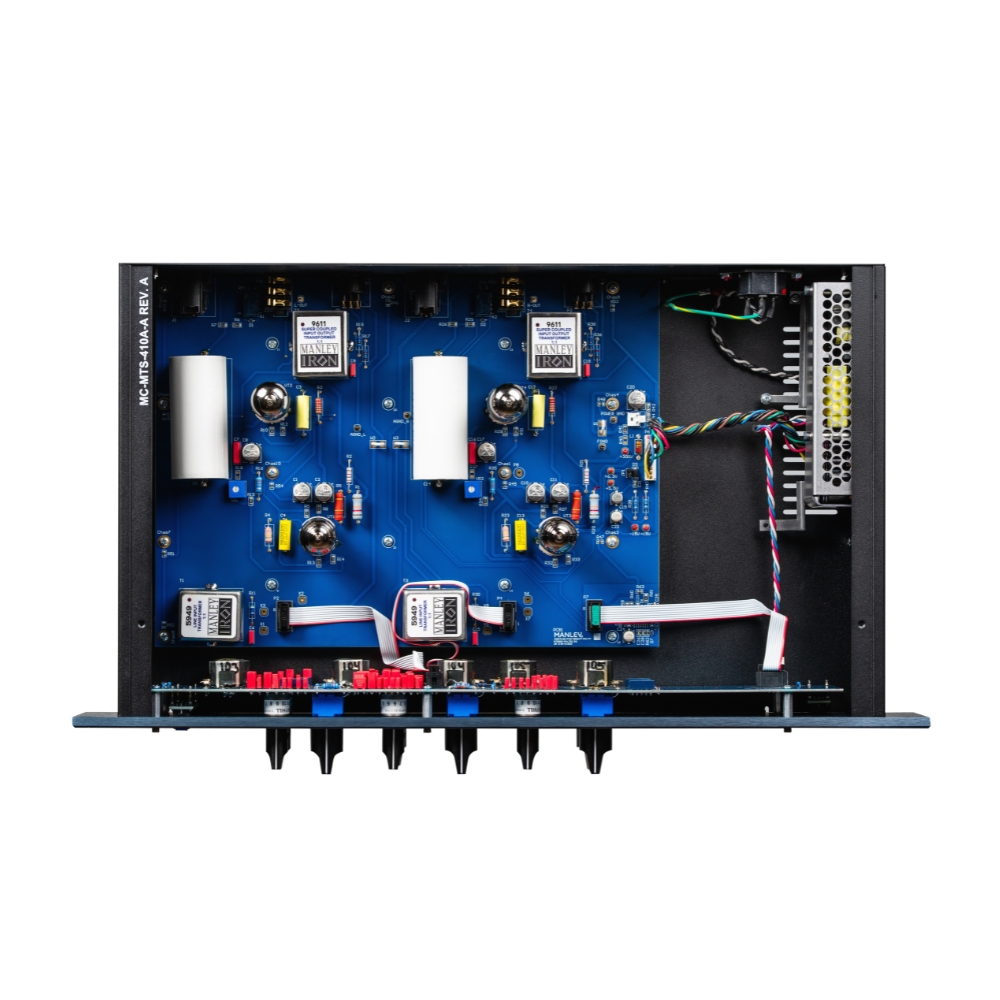

Passive EQ networks lose level by design. Restoring that level is central to their sound. The Dual Series uses Manley tube makeup gain stages that benefit from decades of experience building high-end tube equipment. The 5751 input stage and 12BH7 output contribute the dimensionality, harmonic structure, and authority that define the Manley sound.

Manley Iron

The in-house wound Manley transformers are central to the way these equalizers present low-frequency weight, transient density, and sonic authority. Custom input and output transformers, scrupulously developed and hand-selected for maximum euphonic performance.

Mastering-Capable, Not Mastering-Only

The Dual Series was designed for recording, mixing, and mastering workflows. Its performance is thorough enough for mastering applications but equally useful on individual sources, stems, instrument buses, and mix buses.

Extended Bandwidth and Serious Headroom

Output capability exceeding +30 dBu, 26 dB of output headroom referenced to +4 dBu, and frequency response flat within ±0.1 dB from 20 Hz to 22 kHz. Total response extends from 10 Hz to 70 kHz. Built for modern professional operating levels and the most demanding analog chains.

Mid/Side Ready

Front-panel labelling supports both Left/Right stereo operation and Mid/Side processing. No internal matrix is included — the unit integrates with external M/S encoders and decoders, hardware (such as the Manley Mastering Backbone) or DAW-based, allowing independent equalization of the Mid and Side components of a stereo signal.

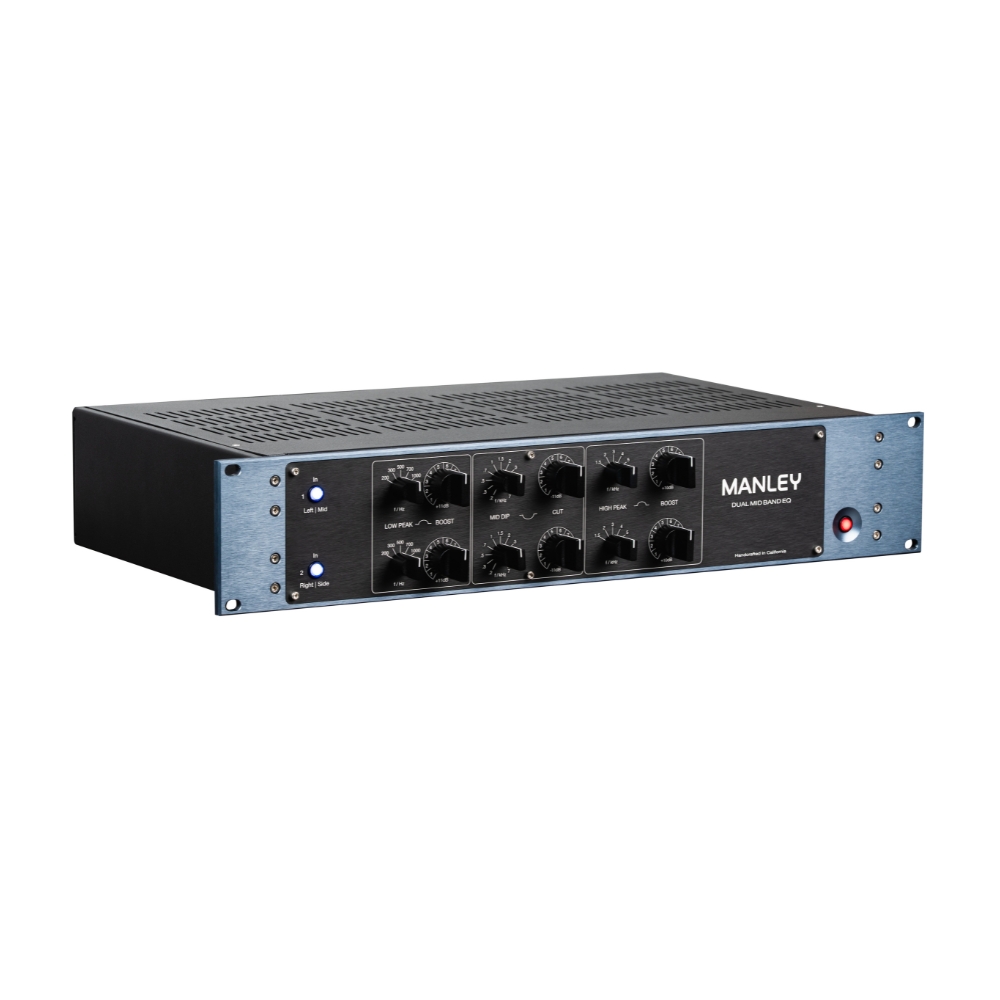

Modern Manley Design

Updated ergonomics, clearer layouts, and new logos to match. The Dual Series is the first Manley product line to feature the updated brand identity — refined for contemporary professional environments without compromising the circuits that made these designs truly exceptional.

Built to Last

Serious mechanical construction, carefully chosen components, satisfying control feel, and a universal switchmode power supply that outperforms the best linear designs available — compatible with all mains voltages worldwide and contributing to the unit’s extended headroom and low noise floor. Every Dual Series equalizer is handbuilt in California.

FEATURES

• Passive inductor-based equalization — broad, natural, phase-coherent curves
• High-voltage all-tube signal path — 5751 input stage, 12BH7 output stage
• Custom in-house wound Manley Iron transformers on input and output
• True stereo dual-channel operation — Left/Right or Mid/Side compatible (no internal matrix included)
• Frequency response: flat within ±0.1 dB from 20 Hz–22 kHz  ·  Total response: 10 Hz–70 kHz
• Output exceeding +30 dBu  ·  26 dB headroom referenced to +4 dBu
• THD / Noise: <0.01%
• Designed for mix-bus, mastering, tracking, and stem processing
• Universal switchmode power supply — compatible with all mains voltages, contributes to extended headroom and low noise floor
• 2U rackmount — 3.5″ × 19″ × 7″ • 5kg (11 lbs)
• Handcrafted in California, USA

TECHNICAL SPECS

	Dual Mid Band EQ
Format	Stereo / Dual Mono
Topology	Passive EQ
Tube Stage	2× 5751, 2× 12BH7
Frequency Response (flat within ±0.1 dB)	20 Hz–22 kHz
Frequency Response (Total)	10 Hz–70 kHz
THD / Noise	<0.01%
Signal to Noise Ratio	89 dB
Max Output	+30 dBu
Dynamic Range	115 dB
Input Impedance	5 kΩ
Output Impedance	150 Ω

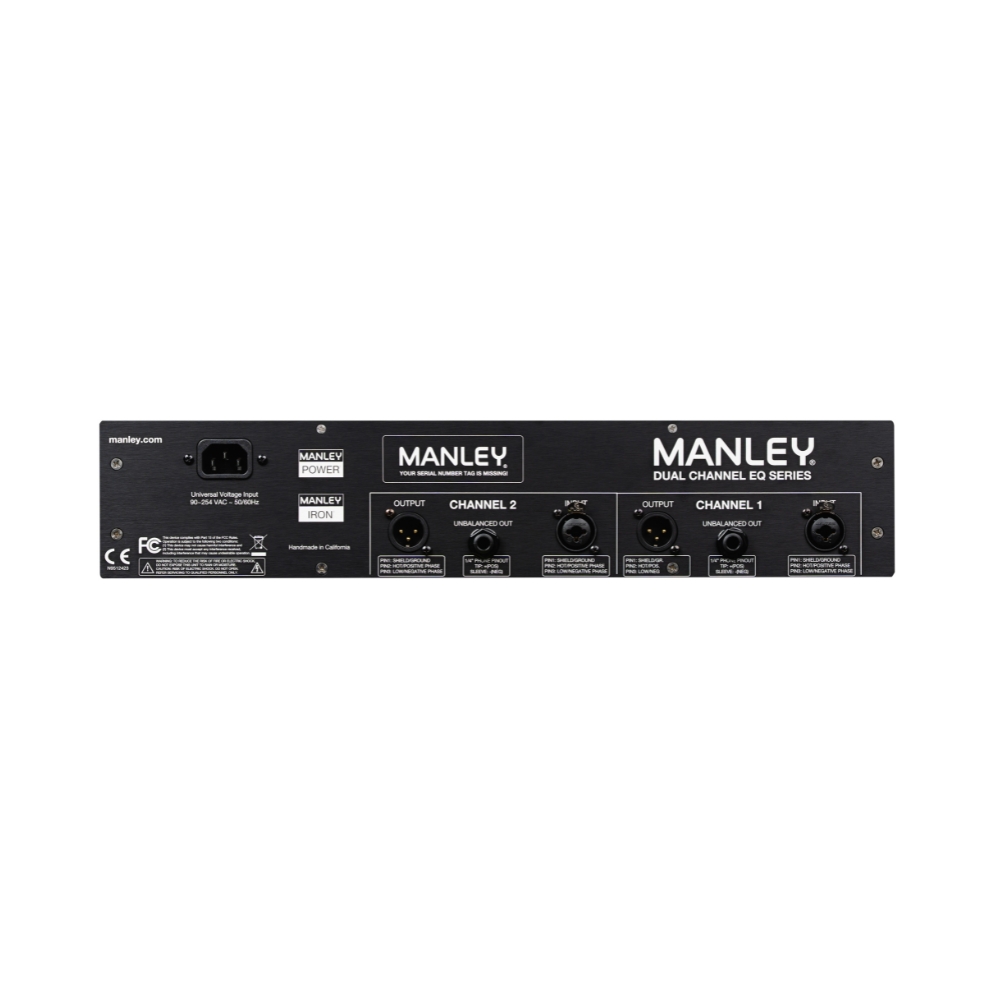

Inputs	Balanced XLR, transformer-coupled
Outputs	XLR balanced — transformer coupled  ·  ¼” unbalanced — direct coupled
Transformers	Manley Iron (in & out)
Bypass	All-tube path (not hardwire bypass)
Controls	Conductive plastic pots
Power Supply	Universal switchmode
Rack Space	2U
Dimensions (H×W×D)	3.5″ × 19″ × 7″
Unit Weight	5kg (11 lbs)
Shipping Weight	7.7kg (17 lbs)
Origin	Handcrafted in California, USA

FAQs

Do both units need to be purchased together?

No. The Dual Main EQ and Dual Mid Band EQ are sold individually. They are designed to work as a system but are fully functional as standalone equalizers.

Does it include a Mid/Side matrix?

No. The L/R and M/S labelling indicates compatibility with external M/S workflows. Users supply their own encoder/decoder — hardware or DAW-based. In standard use, connect and operate as a conventional stereo or dual-mono equalizer.

What voltage does it run on?

The universal switchmode power supply is compatible with all mains voltages worldwide. No voltage selection or modification required.

Why do controls interact with each other?

This is characteristic of passive inductor-based EQ topology. Multiple controls share portions of the same circuit, so adjusting one parameter can subtly affect adjacent settings. The resulting curves are more natural and integrated than isolated EQ moves — this is by design.
