Wave Distribution WD500 – 2-Slot Horizontal 500 Series Chassis with Stereo Linking & Ground Lift

OVERVIEW

The Wave Distribution WD500 is a compact, dual-slot horizontal 500 Series chassis designed to house and power two standard 500 Series modules in a space-efficient 1U rack format. Its recessed slots accommodate standard modules, while the chassis provides stable power with up to 300mA available per voltage rail, making it a practical foundation for building a flexible analogue processing setup. The WD500 features XLR and 1/4-inch connections for straightforward integration with the rest of your studio signal chain.

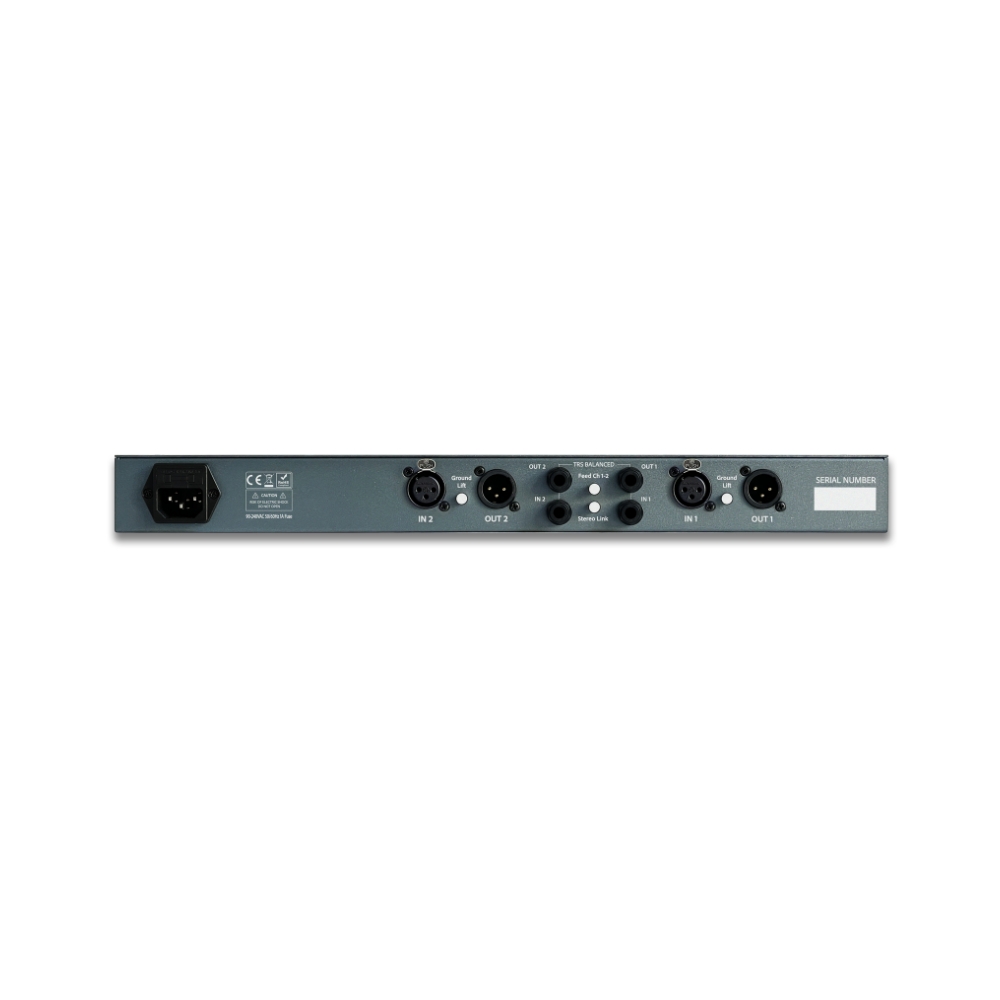

For greater flexibility, a rear-panel Stereo Link switch allows the two installed modules to be configured for linked stereo operation, while individual Ground Lift switches provide a practical way to address unwanted ground-loop hum. This makes the WD500 particularly useful when combining multiple 500 Series processors in a compact rack environment, whether you’re expanding an existing system or creating a dedicated pair of processors for tracking, mixing or outboard processing.

KEY HIGHLIGHTS

Compact 2-Slot 500 Series Chassis

Houses two standard 500 Series modules in a space-efficient horizontal chassis designed to fit a typical 1U rack space.

Stable Module Power

Provides up to 300mA of current per voltage rail to support compatible 500 Series modules.

Stereo Linking

A rear-panel Stereo Link switch provides convenient routing flexibility when using two modules together for stereo applications.

Individual Ground Lift

Dedicated Ground Lift switches for each slot help isolate unwanted ground-related hum and noise.

Flexible Connectivity

Each slot provides XLR and 1/4-inch input and output connections for straightforward integration with studio equipment.

FEATURES

• 2-slot horizontal 500 Series chassis
• Fits into a typical 1U rack space
• Houses and provides power to two standard 500 Series modules
• Recessed slots accommodate standard 500 Series modules
• Up to 300mA of current per voltage rail
• Rear-panel Stereo Link switch for flexible stereo routing
• Individual Ground Lift switches for each slot
• Ground Lift helps eliminate unwanted 60Hz/ground-loop hum
• 2 x XLR inputs
• 2 x 1/4-inch inputs
• 2 x XLR outputs
• 2 x 1/4-inch outputs
• Standard IEC AC power connection
• Compact solution for expanding a 500 Series processing setup

TECHNICAL SPECS

General

• Number of Slots: 2
• Format: Horizontal 500 Series Chassis
• Rack Space: 1U
• Module Compatibility: Standard 500 Series modules
• Stereo Link: Rear-panel switch
• Ground Lift: Individual switches per slot

Connections

• Inputs: 2 x XLR, 2 x 1/4″
• Outputs: 2 x XLR, 2 x 1/4″

Power

• Module Power: ±16V DC
• Current Capacity: Up to 300mA per voltage rail
• Power Supply: Standard IEC AC cable
