Avantone Pro CLA-Sub – 300-Watt 10” Studio Subwoofer

OVERVIEW

Monumental Bass

The CLA-Sub is an ideal studio subwoofer for producers and engineers who work with cinema sound or any modern music genre that prioritises deep bass. While the CLA-Sub is designed to be a perfect match for the CLA-series of white cone studio monitors, its filter options make it a fantastic sub for any recording studio or home theatre.

The CLA-Sub can be configured in either downward-firing or frontward-firing modes to best suit the acoustics of your mix room. Simply remove and reattach the rubber feet to deploy the configuration that best serves your room and your music.

• Front-firing mode – provides the cleanest possible reproduction from CLA-Sub, as the woofer does not couple with the floor of the room.
• Downward-firing mode – deliberately takes advantage of coupling to the room to increase output by +3 dB.

The CLA-Sub’s repositionable feet employ a special vibration-dampening material that minimises the mechanical coupling between the CLA-Sub in your room to reduce sympathetic vibrations that can colour the playback of your mix. No aftermarket acoustic isolation pads required!

Exclusive Dual-Magnet Driver for Clarity and Volume

At the heart of CLA-Sub is our custom dual-magnet driver, not available in any other speaker.

Every element of the custom driver was designed to minimise distortion while increasing output volume. Other manufacturers’ subwoofers will often deliver as much low-end as possible through deliberate distortion and colouration. This approach can cause signals to be perceived as louder when they, in fact, just have more harmonic content through distortion.

We find this practice to be at best dishonest, and at worst an insult to your music. We took the opposite approach with our custom driver. We did all we could to ensure it delivers clean, clear bass at shockingly high volume.

First, its stacked dual ferrite magnet design grants CLA-Sub the power to push and pull air with more efficiency and control than comparable drivers. To avoid harmonics and overtones, we experimented with several cone substrates before settling on a particularly rigid paper that minimises distortions while still providing a quick, snappy transient response. With CLA-Sub, you’ll hear the low end of your tracks with clarity and honesty.

Configuration Options for the Most Demanding Studios

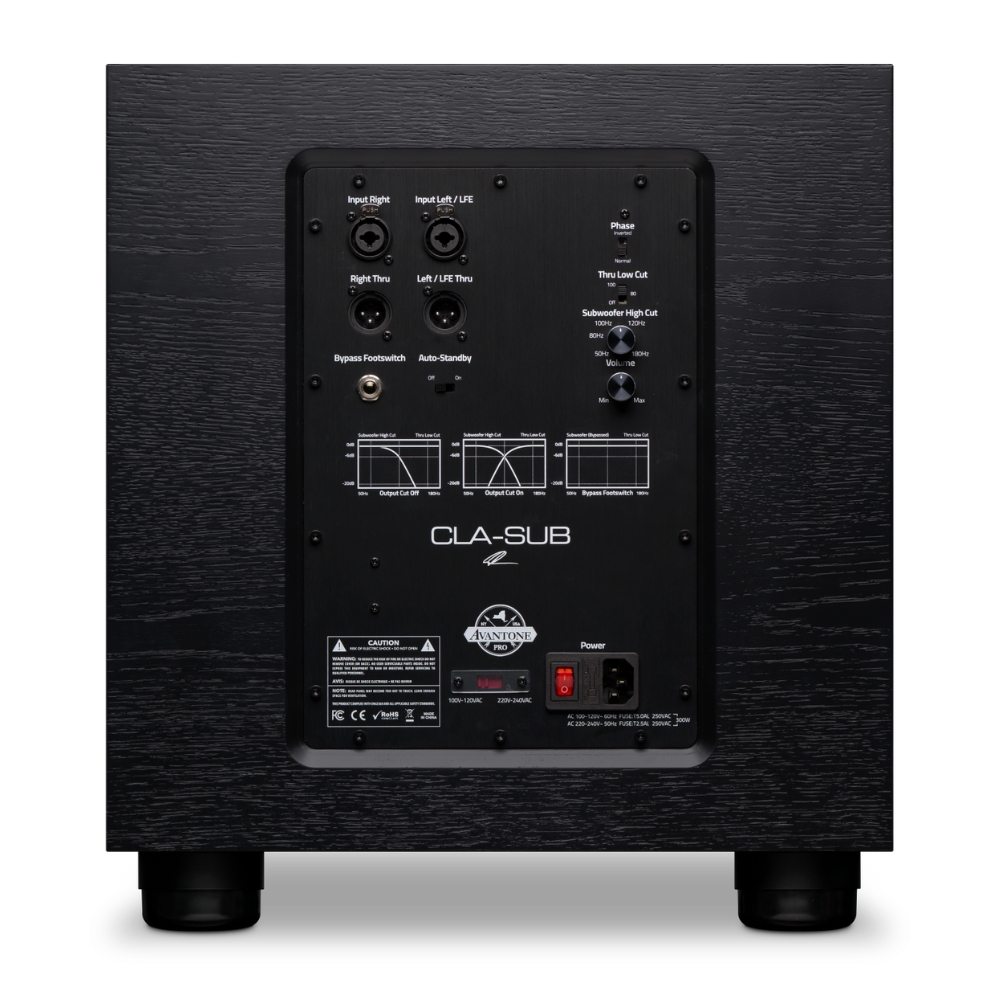

A sweepable high-cut control lets you dial in your crossover point from 50-180 Hz; the output low-cut filter lets you trim the fat at 80 or 100 Hz for the signal sent to your studio monitors. You also get phase and gain controls. A switchable power-saving standby mode is available, putting CLA-Sub into a power-efficient sleep mode after 30 minutes of inactivity.

Locking XLR / ¼” TRS combo inputs keep your audio connections tight and secure, even when those 808 kicks are rattling the fillings in your teeth.

CLA-Sub’s operation can be toggled using a footswitch for quick A/B comparisons of your mixes with and without the sub.

KEY HIGHLIGHTS

Dual-Firing Flexibility:

Choose front-firing for maximum accuracy or downward-firing for increased room-coupled output.

Exclusive Dual-Magnet Driver:

Custom-designed dual ferrite magnet woofer delivers powerful low end with minimal distortion and superior control.

Honest, High-Volume Bass:

Engineered for clarity at high SPL without artificial hype or harmonic colouration.

Studio-Grade Integration:

Sweepable crossover, phase, and gain controls make it easy to integrate with any monitor system.

Built for Modern Studios:

Perfect for music production, cinema sound, and home theatre environments where low-end accuracy matters.

FEATURES

• 300-watt 10” studio subwoofer with custom dual-magnet driver
• Front-firing and downward-firing configurations to suit your mix environment
• Exclusive dual-magnet driver with rigid paper cone for maximum volume and minimal distortion
• Ported enclosure for low-end extension
• Sweepable high-cut control from 50-180 Hz
• 80/100 Hz low-cut filter for thru output to studio monitors
• No aftermarket acoustic isolation pads required
• Switchable power-saving standby mode
• Footswitch-togglable operation
• Also suitable for home theatre setups

TECHNICAL SPECS

Type: Active Studio Subwoofer

Power Output: 300 Watts

Driver Type: Custom Dual-Magnet Woofer

Driver Basket Diameter: 10”

Voice Coil Diameter: 2”

Cone Material: Stiffened Paper

Surround Material: Butyl

Magnet Material: Double Stacked Ferrite

Frequency Response: 25 Hz – 180 Hz

THD: > 55 Hz ≤1%

Max. Peak SPL: ≥ 116 dB

Crossover Frequencies: 50 – 180 Hz

Enclosure: Ported Cabinet Design

Firing Modes: Dual (User Configurable)

• Front-Firing
• Downward-Firing

High-Cut Filter: Sweepable 50 – 180 Hz

Low-Cut Filter (Thru): 80 Hz or 100 Hz

Controls:

• Gain
• Phase
• Crossover

Inputs: Locking XLR / ¼” TRS Combojack

Thru: XLR

Operation: Footswitch-Toggleable On/Off

Power Saving: Automatic Standby After 30 Minutes of Inactivity

Applications:

• Studio Monitoring
• Cinema Sound
• Home Theatre

Dimensions:

• Height — 457 mm (18”) x  W x 419 mm D
• Width — 419 mm (16.5”)
• Depth — 419 mm (16.5”)

Weight: 25 kg (55.12 lbs.)

DOWNLOADS

• Avantone CLA-Sub – Brochure
