PMC12 XBD – 12″ Three-Way, Four-Driver, Dual-Cabinet ATL™ Active Reference Monitor (Pair)

OVERVIEW

The PMC12 XBD represents a significant step up from the PMC10 XBD in its scale, dynamics, bass extension, and maximum SPL, and is designed for the most demanding professional environments. This system is ideally suited to high-end music recording, mixing, and mastering studios, as well as to larger broadcast, television, and film post-production facilities working in both stereo and immersive sound, where accuracy, power, and enormous LF headroom are critical requirements.

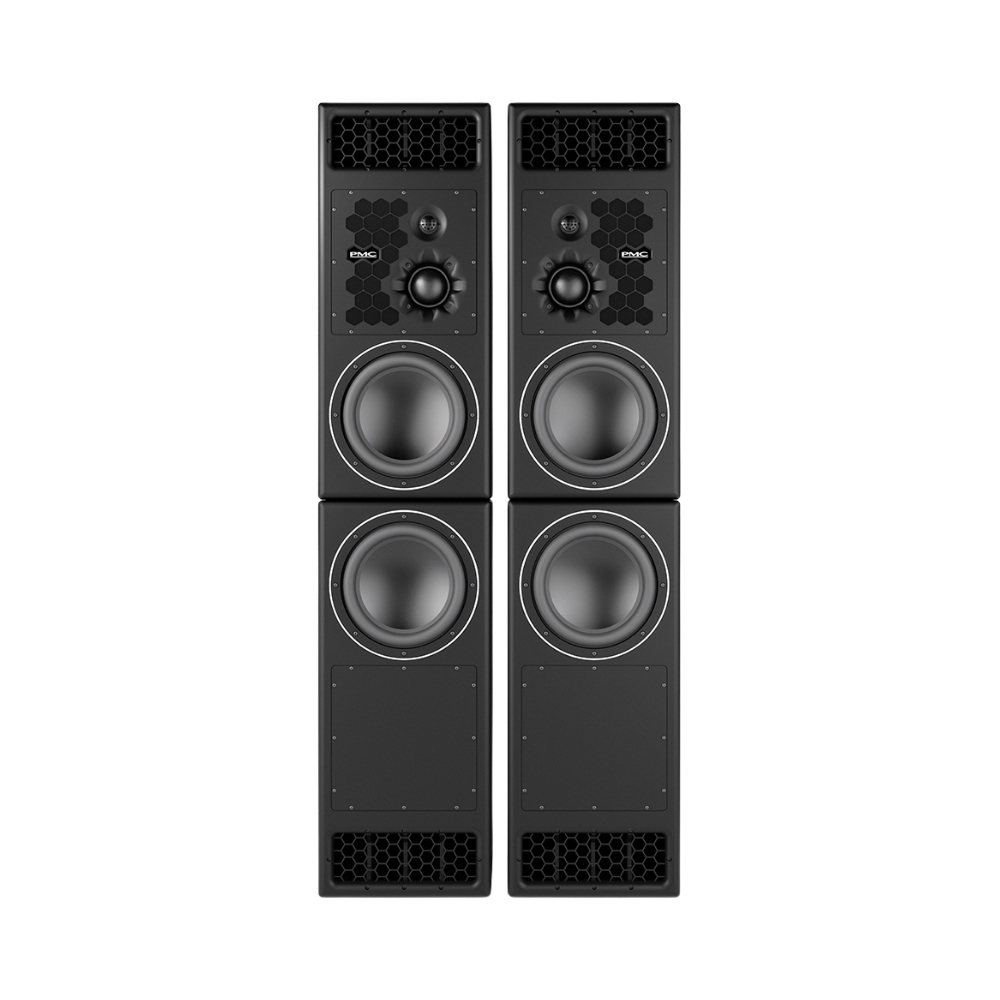

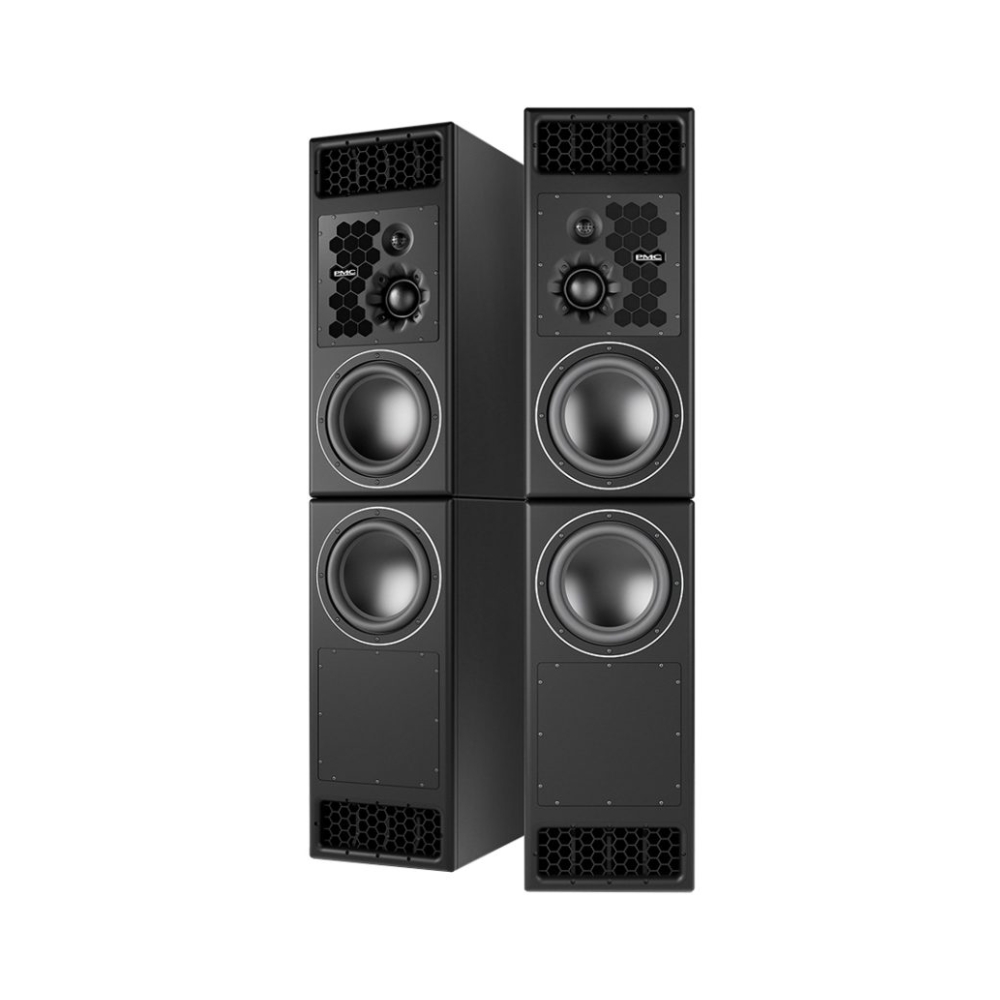

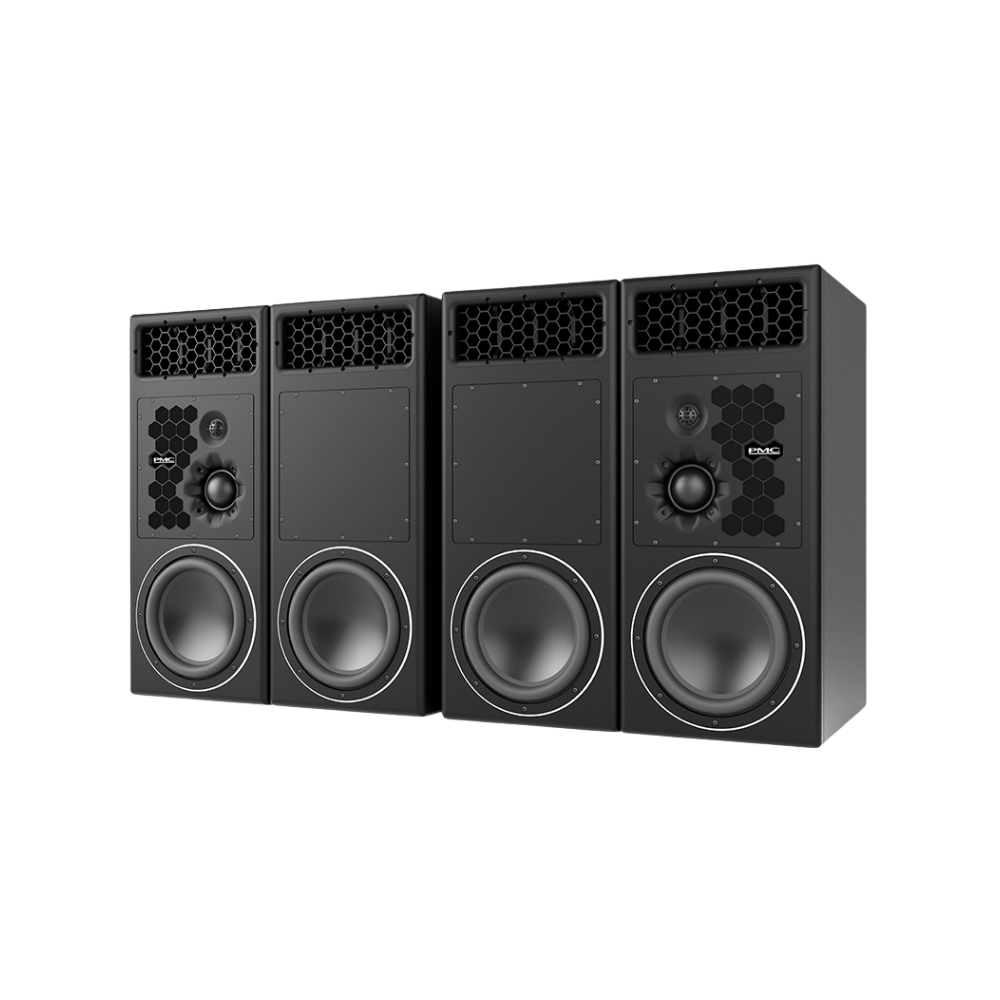

Each PMC12 XBD system comprises a pair of latest-generation Advanced Transmission Line (ATL™) cabinets, engineered with LaminairX™ venting to deliver uncompromising low-frequency extension, control, and efficiency. The primary cabinet features a hand-built 34mm soft-dome tweeter and a PMC75v3 midrange driver, both enhanced by PMC’s proprietary n-compass™ waveguide, which guarantees precise dispersion, phase integrity, and absolute tonal consistency – ensuring every critical decision translates without question.

Low frequencies are reproduced by both cabinets using two newly developed, in-house designed 12-inch bass drivers. Each unit features double-stacked magnets, three-inch, three-layer voice coils, and highly stable suspensions that maintain linear motor force over extraordinarily extended pistonic excursions. This complex, innovative design delivers ultra-low distortion at all monitoring levels.

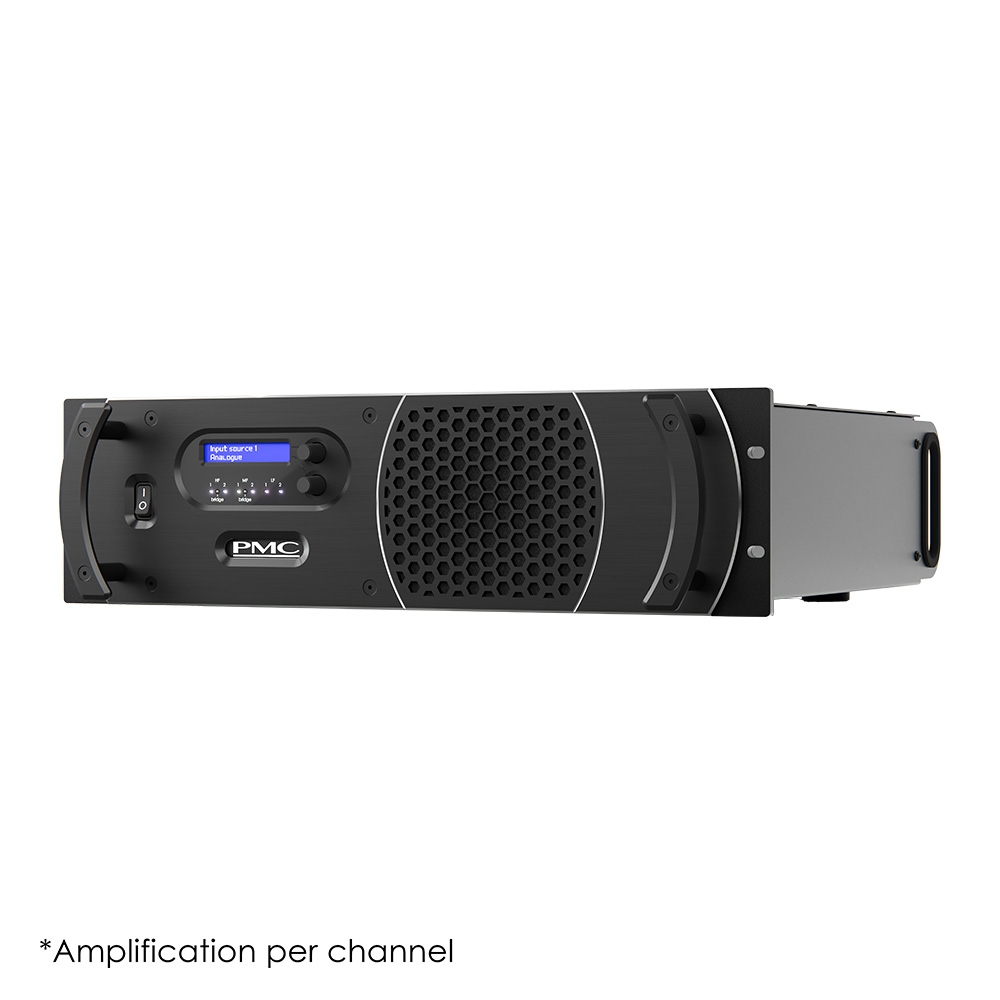

Power for the system is provided by PMC’s master36 rack-mount DSP and amplification platform, delivering 800W each to the high- and mid-frequency drivers and 1000W to each bass driver – a massive 3.6kW of effortless power in all. Precision DSP provides optimised crossovers, transparent driver protection, and comprehensive room EQ via PMC’s SoundAlign2 browser-based interface.

FEATURES & TECHNICAL SPECS

Type: 3-Way, Four-Driver, Dual-Cabinet ATL™ Active Reference Monitor

Drive Unit Complement (per Dual Cabinet Tower):

• LF 2 x 12-inch
• MF 75mm Soft-Dome
• HF 34mm Soft-Dome

Effective ATL™ Length: 2 x 3.5m (2 x 11.5 ft.) – per dual cabinet tower

Full DSP Room Alignment EQ Facilities with SoundAlign2

Input: Analogue & Digital (Up 192kHz) Inputs

Power per Cabinet: 3600W

Electronics per Channel: 1 x PMC master36 DSP/Power Amplifier

Amplifier Power per Channel:

• HF 800W
• MF 800W
• LF 2 x 1000W

Dimensions (per Dual Cabinet Tower):

• Height — 1740mm (870mm per unit)
• Width — 380mm
• Depth — 535mm (+10mm LF Driver Surround)

Weight: 114 kg (per dual cabinet tower)

• Master 3-Way — 62 kg
• SUBxbd — 52 kg

*Subject to change without notice.
