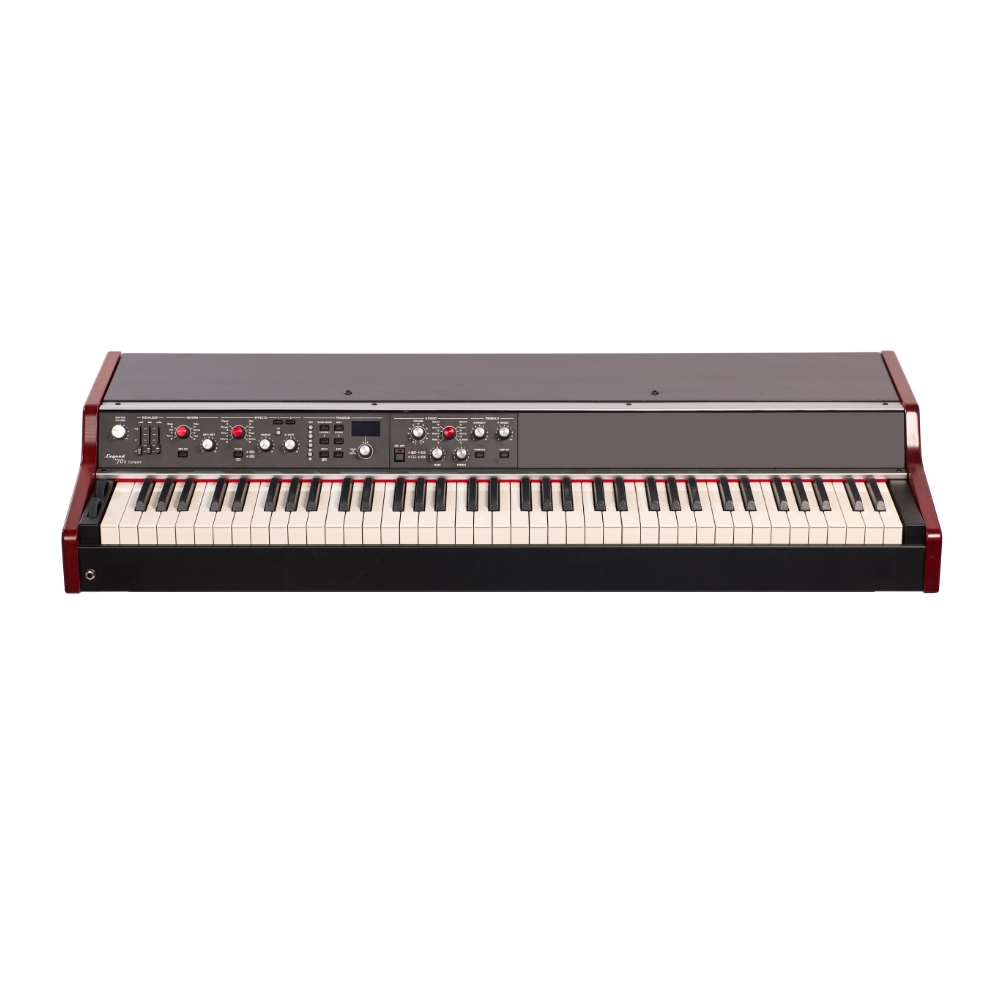

Viscount Legend 70’s MKII Compact Keyboard 73 – Modular Stage Piano with 73-Note Keyboard and E.Piano Module

OVERVIEW

The Viscount Legend ’70s MKII Compact is a 73-key modular stage piano designed for discerning musicians who want authentic sounds in a compact, vintage-style cabinet, without sacrificing the flexibility of a modern digital piano.

Powered by a newly developed double-core DSP architecture, the MKII Compact significantly expands processing performance while reducing operational noise and increasing sonic detail. Its premium wooden construction, updated EPROM with expanded programs, and refined aluminium knobs provide a professional playing experience that feels both classic and contemporary.

Supplied with the Electric Piano module and three additional expansion slots, the instrument offers exceptional flexibility for performers and producers alike. With extensive onboard effects, programmable presets, USB audio and MIDI connectivity, and support for additional modules including acoustic pianos, FM synthesis, Clavi, and synth engines, the Legend ’70s MKII Compact is designed to evolve alongside modern creative workflows.

KEY HIGHLIGHTS

Dual DSP Performance Engine

Advanced double-core DSP processing delivers enhanced sound quality and increased performance power.

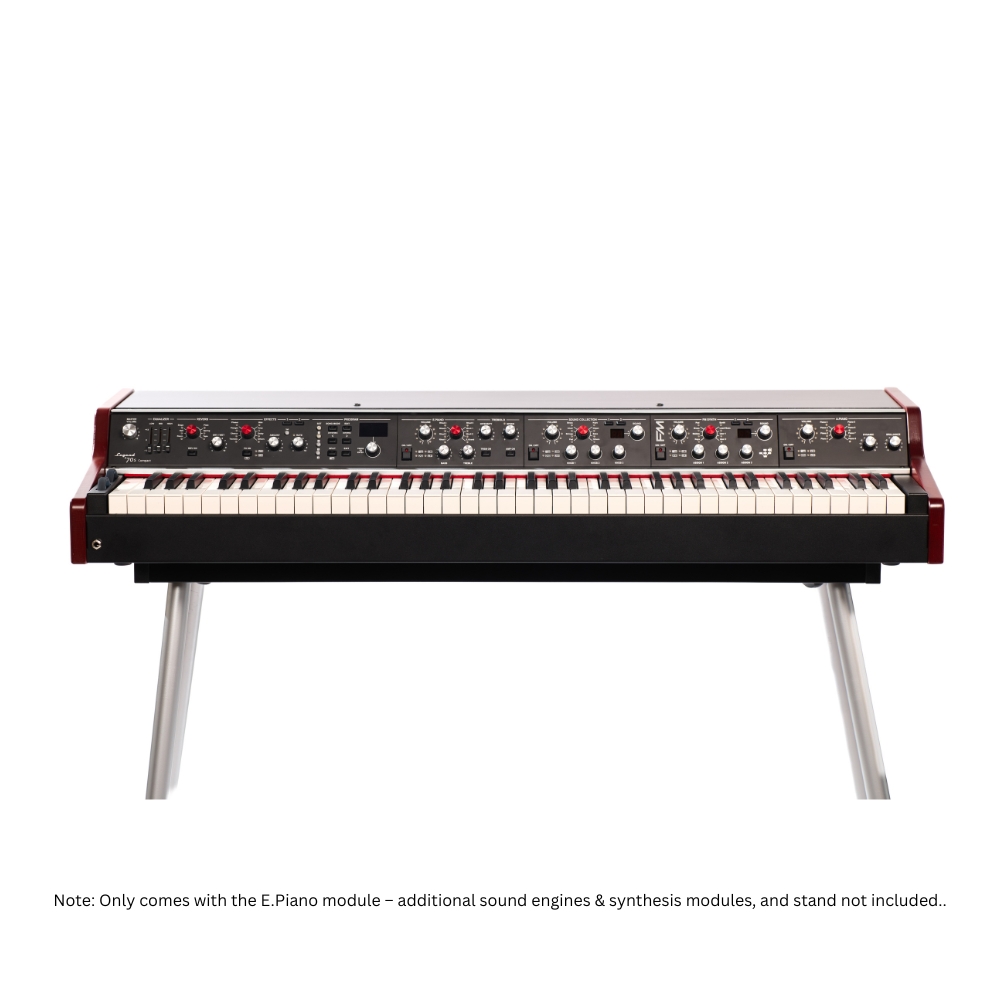

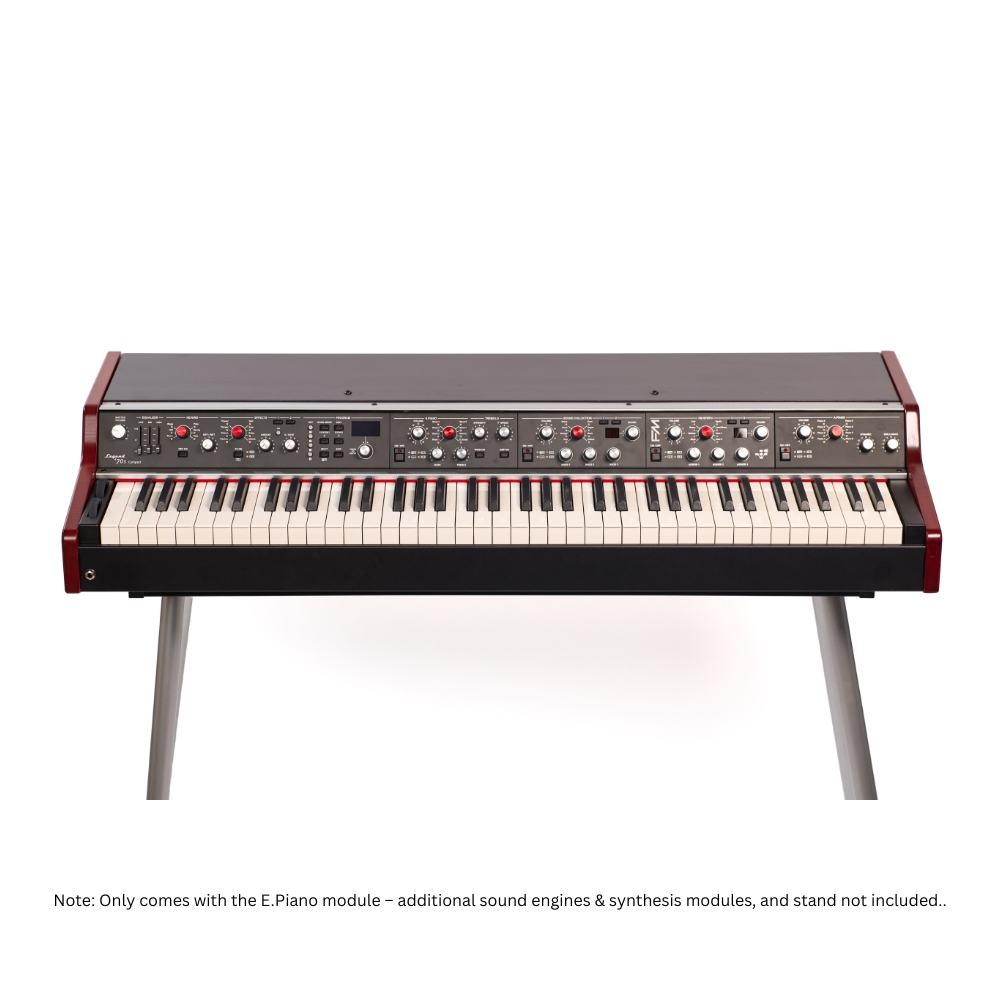

Modular Expansion System

Three empty module slots allow users to expand the instrument with additional sound engines and synthesis modules.

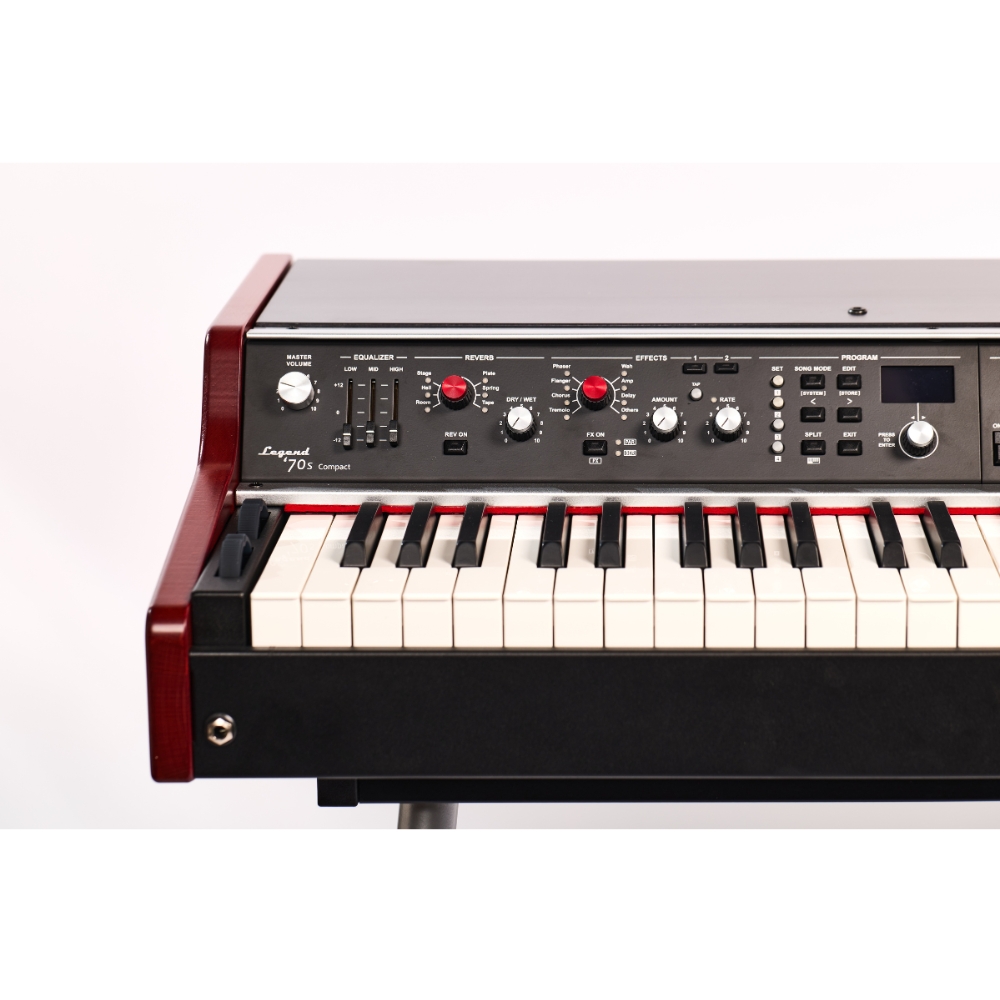

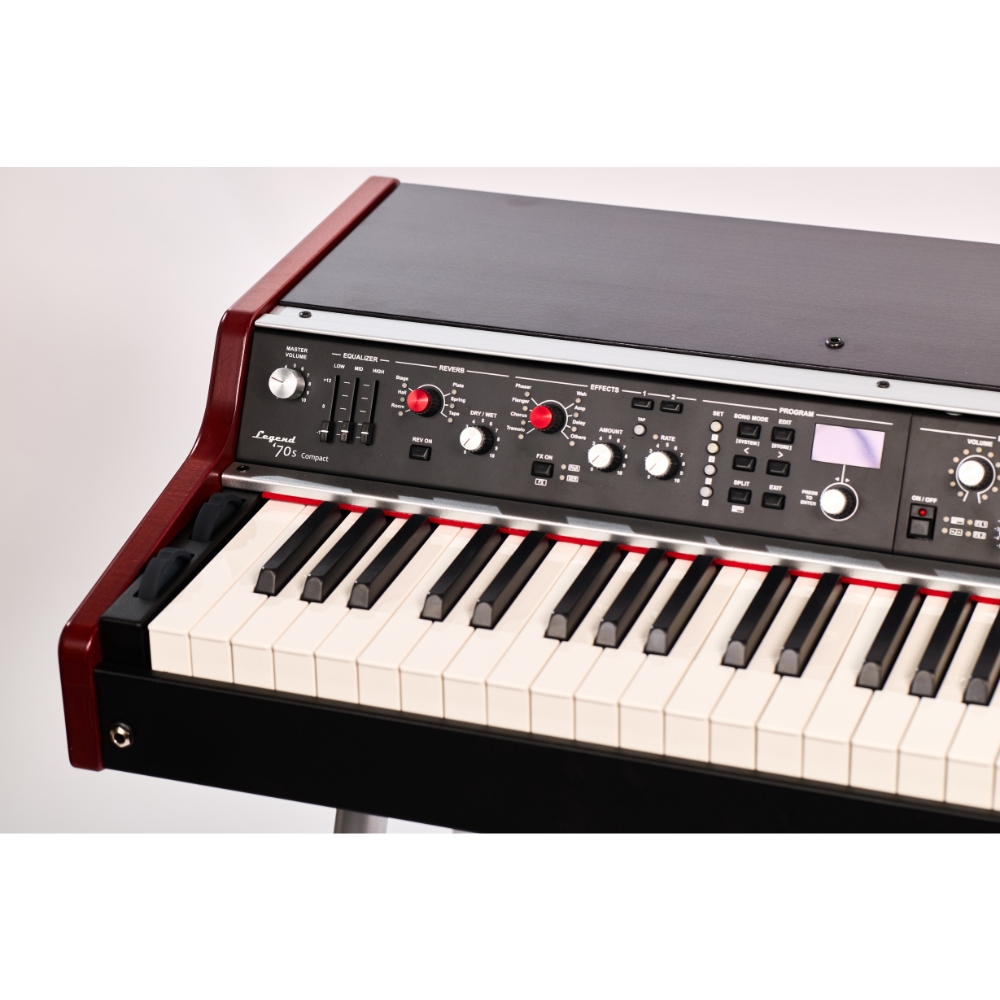

Premium Vintage-Inspired Design

Wooden side panels and aluminium controls combine classic aesthetics with modern reliability.

Extensive Effects Processing

Includes reverb, chorus, tremolo, rotary, delay, EQ, compression, and amp simulations.

Compact Professional Format

73-note layout offers portability without sacrificing expressive playability.

FEATURES

Included Modules	Electric Piano 3 Empty Slots
Available Modules	A. Piano 2GB >a href=”https://www.viscountinstruments.com/products/professionals/piano-keyboards/legend-70s-keyboards/fm-synth-module/”>FM synth Synth-8 Sound Collection Clavi External
Computing Power	New Double DSP main circuit
Midi	In, Out, and USB
Control Connections	2 x 1/4″ foot controller inputs 2 x 1/4″ footswitch inputs 1/4″ sustain input 1/4″ program change input
Onboard Controllers	Pitch bend wheel Mod wheel
Effects	Reverb: room, hall, stage, plate, spring, tape Tremolo, Vibrato, Chorus, Flanger, Phaser, Wah-wah, Amps, Rotary, Delay, Equalisers, Compressor
Audio Inputs	(1/8″) 3.5 mm stereo audio input
Audio Outputs	Dual 1/4″ stereo main output Dual 1/4″ stereo aux output
Programs/Presets	384 (24 banks × 16 programs each)
Number of Songs	9 x lists of 40 songs 4 x sets for each song)
Split Feature	Yes
Transpose Feature	Yes
USB Flash Drive Port (to Device)	Program/Preset Storage
USB Port (to Host)	MIDI;Audio
Voices of Polyphony	Electric Piano module: Full Acoustic Piano module: 128 Clavi module: Full Sound Collection module: 128

TECHNICAL SPECS

Keyboard: 73-note TP110 piano keyboard

Included Modules:

• Electric Piano module
• 3 empty expansion slots

Available Modules:

• A.Piano 2G
• FM Synth
• Synth-8
• Sound Collection
• Clavi
• External

Processing: New double DSP main circuit

MIDI:

• MIDI In
• MIDI Out
• USB MIDI

Control Connections:

• 2 x 1/4″ foot controller inputs
• 2 x 1/4″ footswitch inputs
• 1/4″ sustain input
• 1/4″ program change input

Controllers:

• Pitch bend wheel
• Mod wheel

Effects:

• Reverb: Room, Hall, Stage, Plate, Spring, Tape
• Tremolo
• Vibrato
• Chorus
• Flanger
• Phaser
• Wah-wah
• Amp simulations
• Rotary
• Delay
• Equalizers
• Compressor

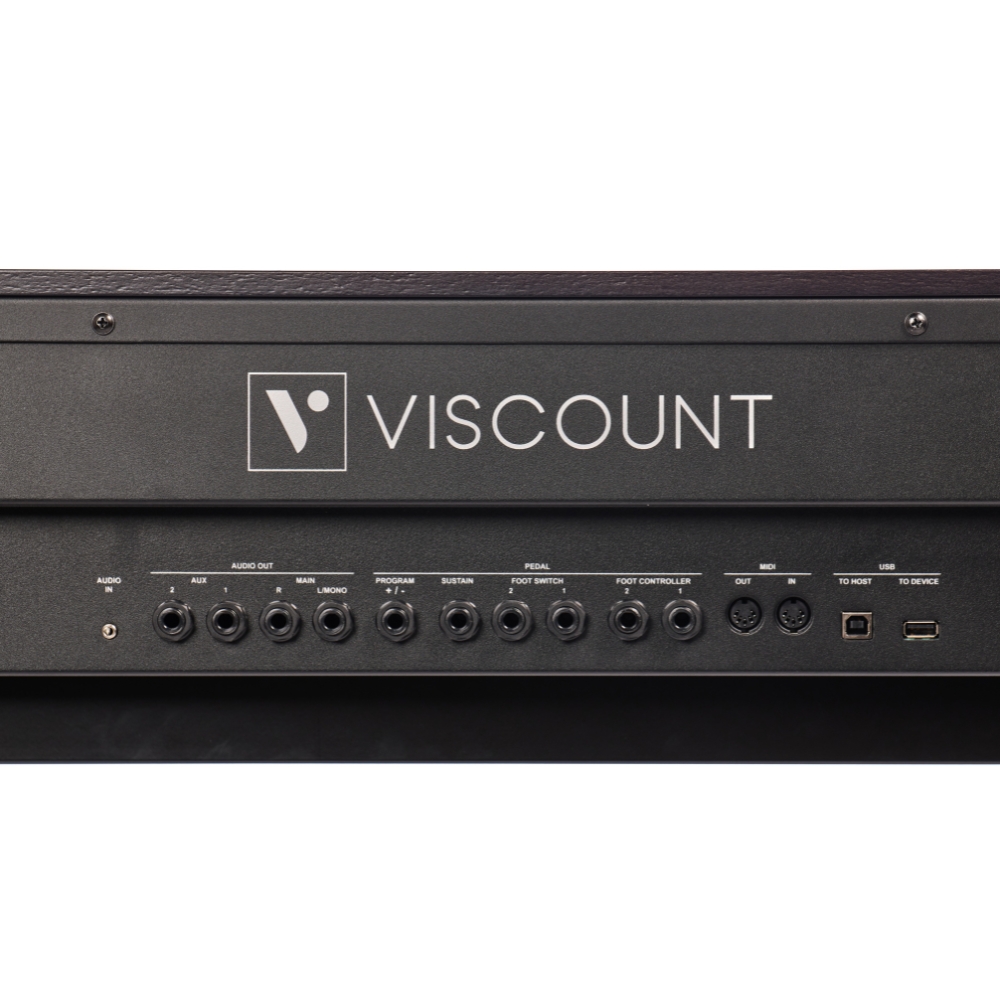

Audio Inputs: 3.5 mm stereo input

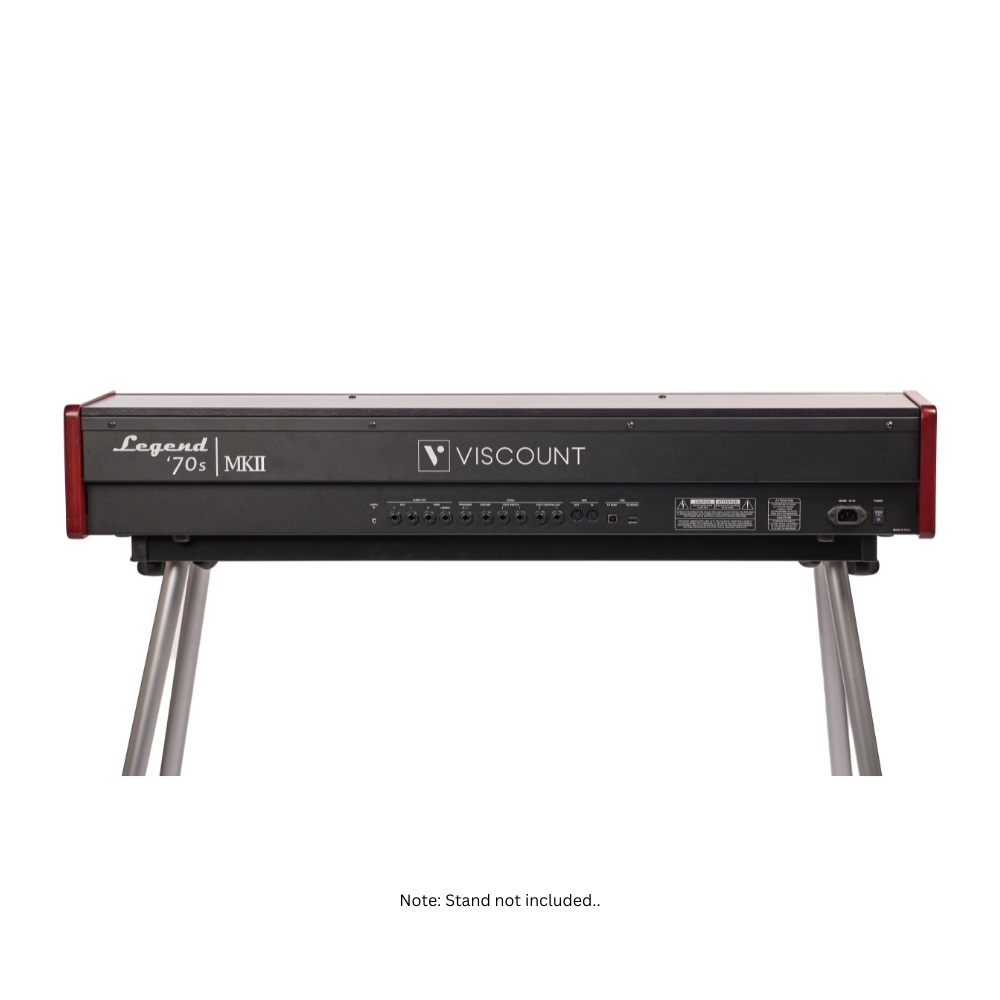

Audio Outputs:

• Dual 1/4″ stereo main outputs
• Dual 1/4″ stereo aux outputs

Programs & Presets: 384 programs (24 banks × 16 programs)

Song Lists:

• 9 song lists
• 40 songs per list
• 4 sets per song

Additional Functions:

• Split
• Transpose

USB:

• USB to Device: Program/Preset storage
• USB to Host: MIDI and Audio

Polyphony:

• Electric Piano: Full
• Acoustic Piano: 128 voices
• Clavi: Full
• Sound Collection: 128 voices

Dimensions:

• Width: 1108 mm (43.62″)
• Depth 467 mm (18.38″)
• Height: 182 mm (7.16″)

Weight:

• 19.5 kg (43 lbs)

Construction:

• Black metal chassis
• Painted mahogany side panels
