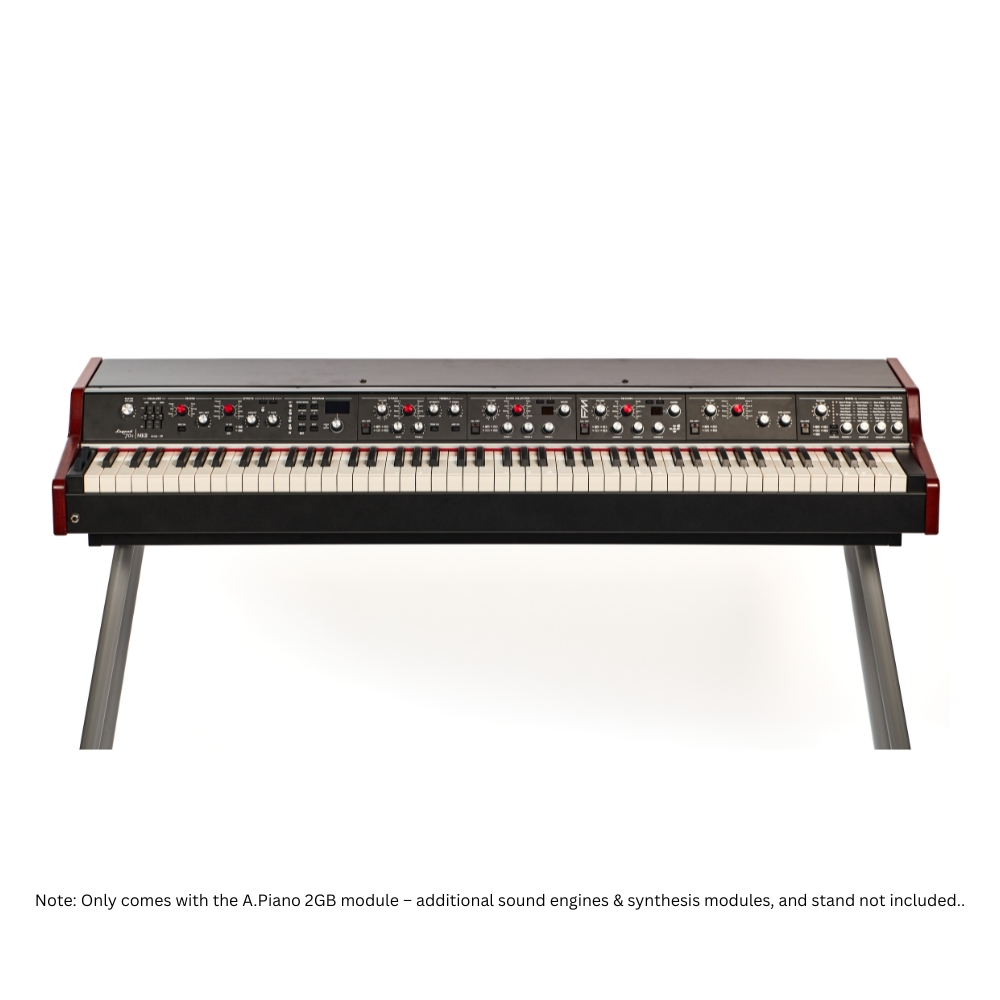

Viscount Legend 70’s MKII Artist-W Keyboard 88 – Modular Stage Piano with 88-Note Keyboard and A.Piano Module 2GB

OVERVIEW

The Viscount Legend ’70s MKII Artist-W is an 88-key modular stage piano featuring graded weighted action and select wood keys. It is designed for pianists who refuse to compromise on expressiveness and touch, and who seek the authentic sound of great vintage electric pianos in an instrument with a deeply modern and versatile soul.

At the heart of the instrument is Viscount’s advanced dual DSP processing engine, delivering increased computing power, expanded sonic detail, and reduced background noise. The updated wooden keyboard action enhances realism and responsiveness, while the premium cabinet construction and redesigned aluminium controls reinforce its refined vintage-inspired aesthetic.

Bundled with the A.Piano 2GB module and four (4) available expansion slots, the Artist-W offers extensive tonal versatility for professional stage and studio environments. Comprehensive effects processing, programmable performance setups, USB audio and MIDI integration, and support for additional synthesis and sound modules make it an exceptionally powerful and future-ready performance instrument.

KEY HIGHLIGHTS

Weighted Wooden Keyboard Action

88 premium graded wooden keys provide a highly authentic piano-playing experience.

Extensive Effects Processing

Includes reverb, chorus, tremolo, rotary, delay, EQ, compression, and amp simulations.

Included A.Piano 2GB Module

Features detailed acoustic piano sounds with advanced multisampling technology.

Expanded Modular Flexibility

Four available expansion slots support future sound modules and synthesis options.

Professional Connectivity

USB audio/MIDI, foot controller inputs, and stereo outputs support modern performance setups.

Vintage Styling with Modern Dual DSP Power

Combines elegant wooden side panels and retro aesthetics with cutting-edge dual-core DSP processing technology.

FEATURES

Included Modules	Acoustic Piano (A.Piano 2GB) 4 Empty Slots
Available Modules	Electric Piano (E.Piano) FM synth Synth-8 Sound Collection Clavi External
Computing Power	New Double DSP main circuit
Midi	In, Out, and USB
Control Connections	2 x 1/4″ foot controller inputs 2 x 1/4″ footswitch inputs 1/4″ sustain input 1/4″ program change input
Onboard Controllers	Pitch bend wheel Mod wheel
Effects	Reverb: room, hall, stage, plate, spring, tape Tremolo, Vibrato, Chorus, Flanger, Phaser, Wah-wah, Amps, Rotary, Delay, Equalisers, Compressor
Audio Inputs	(1/8″) 3.5 mm stereo audio input
Audio Outputs	Dual 1/4″ stereo main output Dual 1/4″ stereo aux output
Programs/Presets	384 (24 banks × 16 programs each)
Number of Songs	9 x lists of 40 songs 4 x sets for each song)
Split Feature	Yes
Transpose Feature	Yes
USB Flash Drive Port (to Device)	Program/Preset Storage
USB Port (to Host)	MIDI;Audio
Voices of Polyphony	Electric Piano module: Full Acoustic Piano module: 128 Clavi module: Full Sound Collection module: 128

TECHNICAL SPECS

Keyboard: 73-note TP110 piano keyboard

Included Modules:

• Electric Piano module
• 3 empty expansion slots

Available Modules:

• A.Piano 2G
• FM Synth
• Synth-8
• Sound Collection
• Clavi
• External

Processing: New double DSP main circuit

MIDI:

• MIDI In
• MIDI Out
• USB MIDI

Control Connections:

• 2 x 1/4″ foot controller inputs
• 2 x 1/4″ footswitch inputs
• 1/4″ sustain input
• 1/4″ program change input

Controllers:

• Pitch bend wheel
• Mod wheel

Effects:

• Reverb: Room, Hall, Stage, Plate, Spring, Tape
• Tremolo
• Vibrato
• Chorus
• Flanger
• Phaser
• Wah-wah
• Amp simulations
• Rotary
• Delay
• Equalizers
• Compressor

Audio Inputs: 3.5 mm stereo input

Audio Outputs:

• Dual 1/4″ stereo main outputs
• Dual 1/4″ stereo aux outputs

Programs & Presets: 384 programs (24 banks × 16 programs)

Song Lists:

• 9 song lists
• 40 songs per list
• 4 sets per song

Additional Functions:

• Split
• Transpose

USB:

• USB to Device: Program/Preset storage
• USB to Host: MIDI and Audio

Polyphony:

• Electric Piano: Full
• Acoustic Piano: 128 voices
• Clavi: Full
• Sound Collection: 128 voices

Dimensions:

• Width: 1320 mm (51.97″)
• Depth: 467 mm (18.38″)
• Height: 182 mm (7.16″)

Weight:

• 23.5 kg (51.8 lbs)

Construction:

• Black metal chassis
• Painted mahogany side panels
