WesAudio NG78 – Fully Analog Stereo FET Compressor w/ Digital Recall

OVERVIEW

The WesAudio NG78 reimagines the classic 1176-style compressor for the hybrid era, combining pure analog tone with complete digital recall. With five ratio settings, including the iconic “All-Button” mode and a smooth 2:1 option, it offers unmatched flexibility for everything from subtle vocal smoothing to aggressive drum compression. Its Carnhill transformer output adds a warm analog saturation, while the dedicated Saturation Mode turns the NG78 into a standalone analog colour box.

Designed for modern workflows, the NG78 features USB and Ethernet connectivity, plug-in integration, and total recall across all parameters – so you can automate compression moves directly from your DAW. The Dynamic Link Technology ensures perfect stereo balance, while the advanced sidechain EQ with switchable filters and shelving provides precise control over how the compressor reacts. Whether used on the mix bus or individual tracks, the NG78 delivers the unmistakable punch and clarity of classic FET compression – reborn for the digital age.

KEY HIGHLIGHTS

Classic FET Compressor Controls:

With dedicated Input, Output, Attack, and Release knobs, the NG78 gives engineers precise hands-on control for shaping compression behaviour. From subtle dynamic smoothing to tight transient shaping, these classic parameters deliver that unmistakable 1176-style response and punch.

Selectable THD (Total Harmonic Distortion):

Choose between Low, Mid, and High THD modes to introduce varying levels of harmonic colouration from the FET circuit. This feature lets you add analog character, warmth, or grit – from pristine clarity to bold saturation – depending on your desired sonic flavour.

Fully Digitally Controlled Analog Circuit:

Enjoy the best of both worlds with pure analog audio and digital precision. The NG78’s digitally controlled analog architecture isolates the control path from the signal path, ensuring zero compromise in sound quality while enabling full recall and automation from your DAW.

Hardware A/B Switching:

Quickly compare two completely different compressor setups with a single button press. The A/B function lets you evaluate alternate settings in real time, making it easier than ever to dial in your ideal tone and dynamic response.

Analog Automation in Your DAW:

Experience true hybrid workflow power with analog automation directly from your digital audio workstation. Adjust parameters in real time during playback and recall sessions instantly – blending the tactile feel of analog with the efficiency of digital production.

USB & Ethernet Connectivity:

Flexible USB and Ethernet connections give you multiple options for integrating the NG78 into your setup. Whether you’re in a project studio or a large production environment, connectivity is seamless and reliable for total recall and control.

Form Factor – 2U Rackmount:

Built for professional studios, the NG78’s rugged 2U rackmount chassis combines durability with elegant design. Its layout provides clear access to all controls and meters, ensuring a smooth workflow during both tracking and mixing.

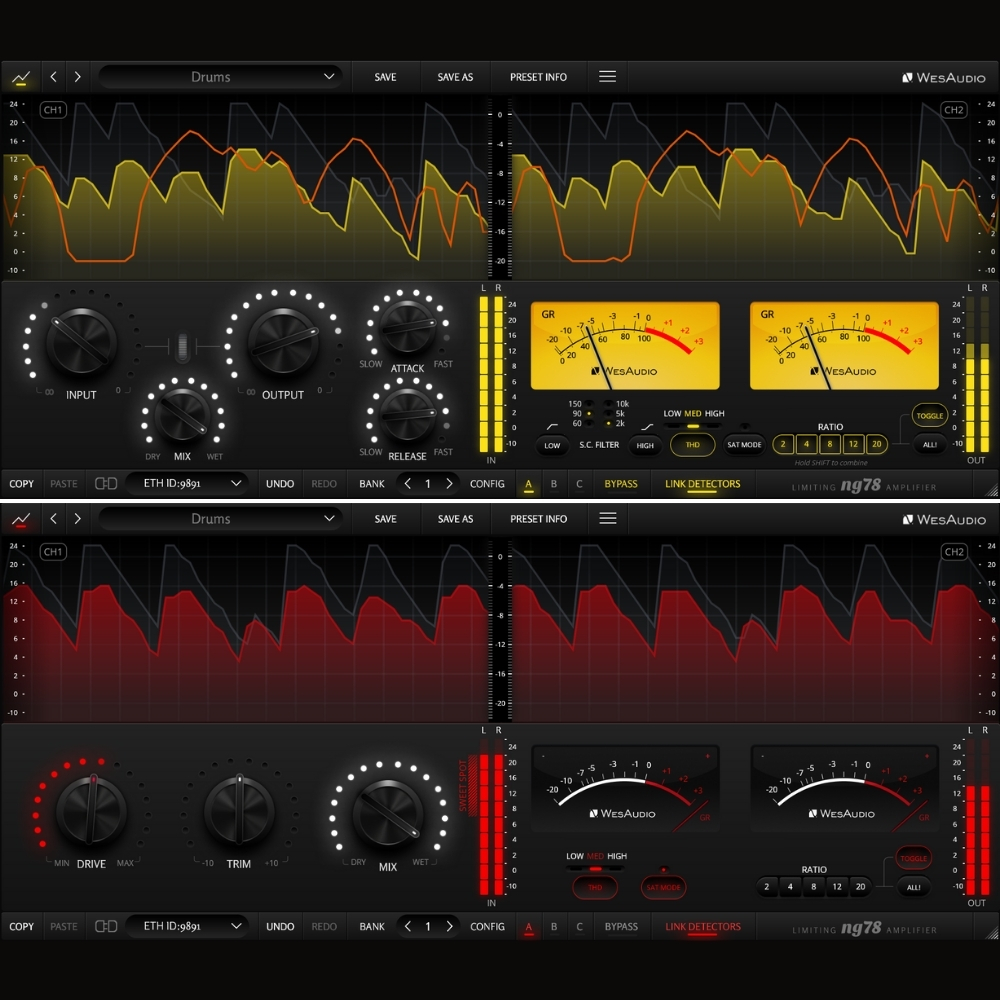

Plug-Ins – for Control and Recall from Your DAW:

The NG78 ships with dedicated plug-ins for all major DAWs, providing intuitive control, session recall, and automation. Manage your compressor like a plug-in – but enjoy the unmistakable warmth and depth of true analog circuitry.

FEATURES

• 100% Analog Stereo FET Compressor (1176-style) with +24dBu of headroom.
• Five Ratio Settings: 2:1, 4:1, 8:1, 12:1, 20:1 – including All-Button Mode and a gentle 2:1 ratio option.
• Extended Attack Range – now starting from slower values for more natural transient control.
• Total Recall & Plug-in Control – seamless integration with most major DAWs.
• Parallel Compression via dedicated MIX knob.
• Carnhill Transformer Output Stage for added analog weight and character.
• Flexible Detector Linking – choose between dual mono stereo compression or true stereo operation.
• Saturation Mode – a dedicated control simultaneously adjusts input and output (compression circuit disabled), turning the unit into a saturation box or clipper.
• Dynamic Link Technology – adaptive circuit that compensates for component tolerances in the sidechain signal, ensuring perfect stereo balance during compression for every parameter combination.

SIDECHAIN & METERING

• Advanced Sidechain EQ with two independent sections:
• High-Pass Filter at 60 Hz / 90 Hz / 150 Hz – preserve low-end while compressing.
• High Shelf at 2 kHz / 5 kHz / 10 kHz – emphasize mid/high content for precise detection.
• 2 Vintage-Style Gain Reduction Meters for classic visual feedback.
• High-Precision Input & Output Metering for accurate level monitoring.

TECHNICAL SPECS

Attack Time: 20us – 20ms

Release Time: 50ms – 1100ms

Compression Ratio: 2:1, 4:1, 8:1, 12:1, 20:1 (all possible combinations)

True Bypass

Side Chain Signal HPF: 60, 90, 150 Hz

Side Chain Signal High Shelf: 2, 5, 10 kHz

Output Impedance: 50ohm

Frequency Response: 20Hz-20kHz (+/- 1dB)

Signal to Noise Ratio SNR: >83dB

Balanced Output and Input

Case Rack: 2U

Power Consumption: 14W

Dimensions:

• Height — 88 mm
• Width — 483 mm
• Depth — 235 mm

Weight: 7kg

Warranty: 2 years
