AEA SNAQBOX – Two-Channel 500 Series Chassis

OVERVIEW

The AEA SNAQBOX™ is a transparent, two-channel, 500-series chassis with separate dual linear regulators for each channel, ensuring complete power isolation between 500 units. The unit is powered by an external switching power supply to keep switching noise away from the unit.

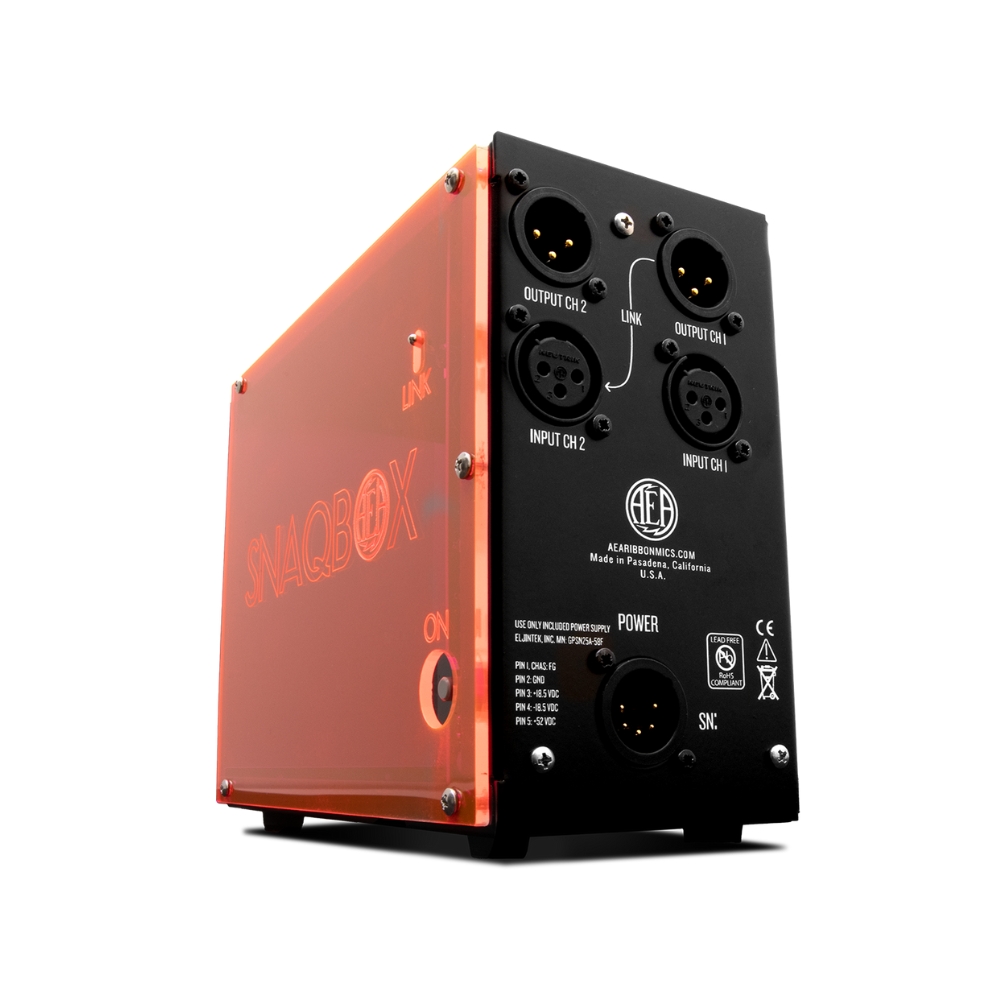

The acrylic sideplate of the unit comes in either clear or fluorescent orange. The chassis is made of steel, and the bottom of the SnaqboxTM is affixed with durable rubber bumpers. All XLRs on the SnaqboxTM are Neutrik brand. Five 1⁄4” flathead 4-40 screws are included with every unit.

The SNAQBOX™ features a LINK/CASCADE switch. When engaged, the audio output of Channel 1 is internally routed to the input of Channel 2. The link switch disconnects the connection from the XLR input of Channel 2, but does not disconnect the output of Channel 1 (thus allowing dry and wet outputs).

KEY HIGHLIGHTS

Two Slots, Fully Isolated:

Dual linear regulators provide full power separation between both channels, ensuring clean performance without crosstalk or interference.

Transparent LINK/CASCADE Switch:

Easily route the output of Channel 1 into Channel 2 internally – great for blending dry/wet signals or stacking effects.

External Switching Power Supply:

Keeps potential switching noise away from the signal path, preserving sonic purity.

Show Off Your Gear in Style:

Available with clear or fluorescent orange acrylic side panels and sturdy steel chassis – perfect for stage or studio use.

Made in the USA:

Built to last with top-tier components like Neutrik XLR connectors and rugged rubber bumpers.

FEATURES

• 2-Slot 500 Series Chassis
• Durable Steel Chassis with Clear or Orange Acrylic Sideplate
• XLR I/O
• Link/Cascade Switch
• External Switching Power Supply
• Made in the USA

TECHNICAL SPECS
