Focusrite RedNet X2P – Channel Mic Preamp, Headphone/Line Out Dante I/O Interface with PoE

OVERVIEW

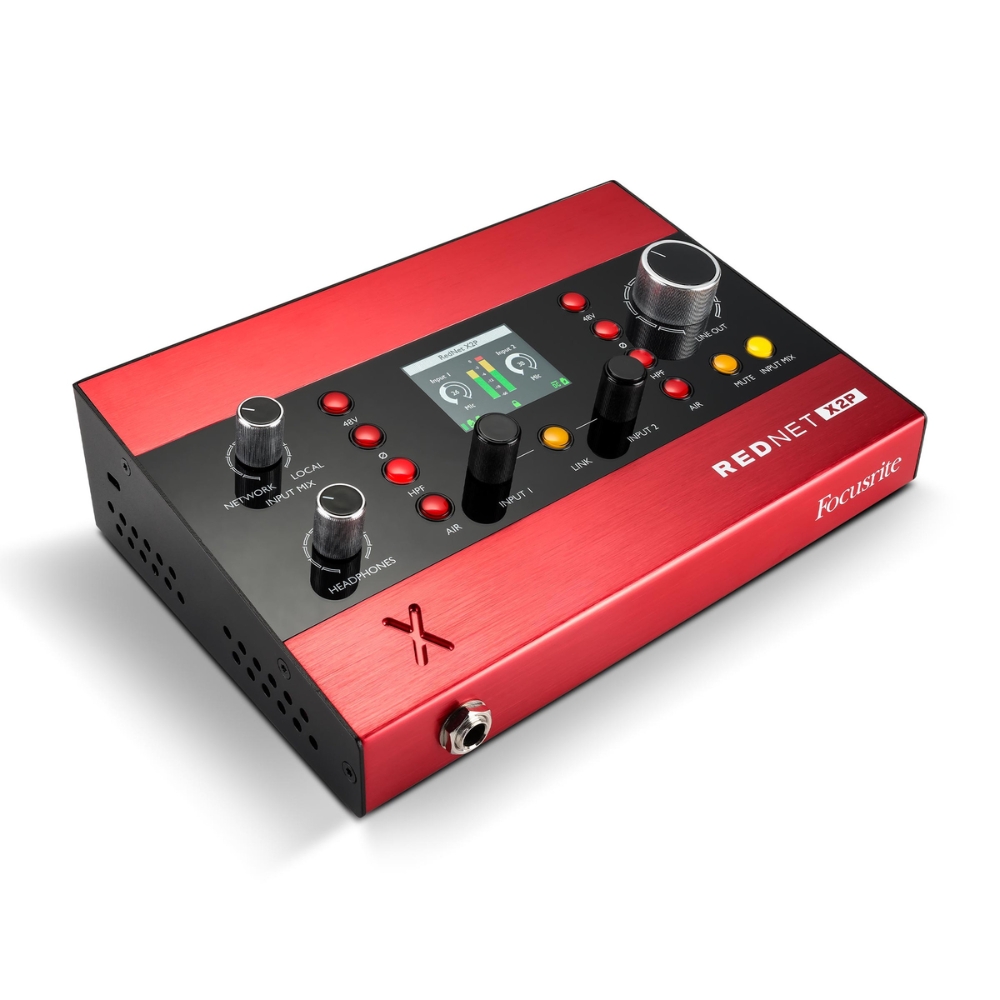

The RedNet X2P is a compact, robust 2×2 Dante™ audio interface featuring two Red Evolution mic pres, stereo line out and a stereo headphone amplifier. RedNet X2P quickly adds I/O to your Focusrite Red interface or any Dante™ audio-over-IP system, and power, audio and remote control are supplied using a single Ethernet cable – simply use a power-over-Ethernet switch or PoE injector. A local input mixer allows ‘more me’ monitoring control, while a control lockout ensures settings remain unchanged when used remotely.

The two digitally-controlled Red Evolution mic pres provide large amounts of ultra-clean gain along with stereo linking, individual phantom power, a high-pass filter and phase reverse. Plus they include Air mode, emulating the sound of Focusrite’s classic transformer-based mic preamps. RedNet X2P provides high-performance audio conversion with over 118dB dynamic range. These converters have been expertly selected and calibrated to provide the best balance of sound quality, dynamic range and conversion latency.

Sometimes it helps to have direct foldback within the interface, so RedNet X2P features a crossfader to enable you to control the level of local inputs versus network inputs that feed either the line outputs or the headphone outputs. The unit can be mounted directly to a mic stand, keeping it out of the way and within reach.

Flexible control locks enable you to lock out local control of mic pre settings, output settings or both. Leave RedNet X2P with your artists and allow them to adjust their headphone mix and level, safe in the knowledge that they cannot accidentally adjust the mic pre gain.

KEY HIGHLIGHTS

2×2 Analogue I/O with 2 x Mic Pres, Headphone and Line Output, PoE Supplied

RedNet X2P is a compact, portable and robust 2×2 Dante™ audio interface featuring two Red Evolution mic pres, stereo line out and a stereo headphone amplifier. RedNet X2P allows you to effortlessly add a high-quality Dante audio interface by integrating power, audio, clock and remote control over a single Ethernet cable – simply use a power over Ethernet switch or PoE injector. A local input mixer allows ‘more me’ monitoring control, while a control lockout mode ensures settings can not be changed when used remotely.

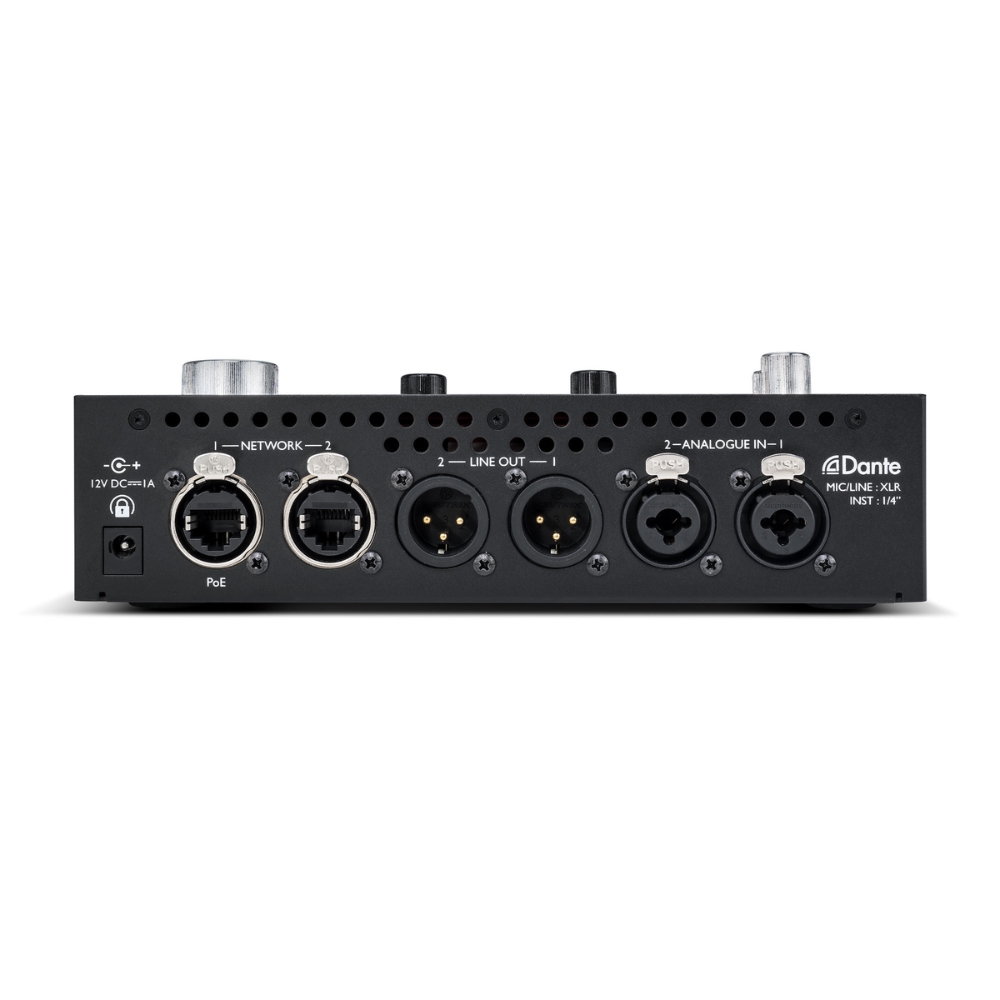

Rear panel XLR outputs offer level-controlled analogue outputs of up to 24dBu, while a front panel 1/4″ connector provides a high-powered headphone output capable of driving both high and low impedance headphones. A pair of combination XLR/1/4″ inputs allow the connection of mic, line or instrument level signals to the mic pres, which include Focusrite’s acclaimed Air mode which emulates the sound of our classic input transformers. The top panel features an array of controls: output level for headphone and line outputs, mic pre controls of gain, high-pass filter, Air, phase invert, phantom power and stereo linking; as well as the crossfader for controlling the balance of mic pre inputs and network receiver channels which are to be sent to the headphone or line outputs.

Brainworx bx_console

The Focusrite Studio Console reborn in your DAW

The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx’s bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.

Enjoy 3 Years of Warranty

All Focusrite products are built to the highest standards and are designed to provide many years of reliable performance.

FEATURES

• Two of our best preamps provide ultra-clean gain, stereo linking, individual phantom power, a high-pass filter, phase reverse and Air mode.
• High-quality conversion, with over 118dB dynamic range.
• Power-over-Ethernet allows a single cable to deliver audio, control and power to RedNet X2P.
• Local input mix allows ‘more-me’ style monitoring for easy foldback control.
• Mic stand mount keeps the unit out of the way and within reach.
• Local control lockout of mic pre settings, output settings or both.

TECHNICAL SPECS

Microphone / Line Inputs

Gain Range: 0dB to 68dB in 1dB steps

Type: Electronically Balanced, Zin = 6.2kO

Max. Input Level: >+24dBu, min gain

Frequency Response: 20Hz – 35kHz ±0.1dB

THD + N: -103dB (0.0007%) @ -1dBFS (@ 24dB Gain)

EIN: <-130dBu ‘A’-Weighted (typical)

Signal-To-Noise Ratio: -120dB ‘A’-Weighted (typical), min gain

Common-Mode Rejection Ratio: 50/60Hz CMRR: -80dB

Phantom Power: +48V, independently switchable per channel.

HPF: High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel

Air Mode: 2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO

Instrument Inputs

Gain Range: 0dB to 68dB in 1dB steps

Type: Electronically Balanced, Zin = 2MO

Max. Input Level: >+15dBu, min gain

Frequency Response: 20Hz – 35kHz ±0.1dB

THD + N: <-100dB (0.001%) @ -1dBFS (@ 16dB Gain)

Signal-To-Noise Ratio: -118dB ‘A’-Weighted (typical), min gain

HPF: High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel

Line Level Outputs

0 DBFS Reference Levels: +18 or +24dBu (switchable)

Frequency Response: 20Hz – 35kHz ±0.1dB

THD + N: <-104dB (0.0006%) @ -1dBFS

Dynamic Range: -120dB ‘A’-Weighted (typical), 20Hz – 20kHz

Headphone Output

0 DBFS Reference Levels: >+19dBm

Frequency Response: 20Hz – 20kHz ±0.2dB

THD + N: <-103dB (0.0007%) @ -1dBFS

Dynamic Range: 117dB ‘A’-weighted (typical), 20Hz – 20kHz

Output Impedance: 5O

Headphone Impedance: 32O – 600O

Digital Performance

Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit

Clock Sources: Internal or from Dante Network Master

Front Panel Connectivity

Headphone Output: 1 x 1/4″ stereo jack

Rear Panel Connectivity

Mic/Line/Inst Inputs: 2 x Locking Combi XLR

Line Outputs: 2 x Male XLR

PSU & Network Connections

PSU (PoE And DC): 1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector

Network: 2 x EtherCON connectors, also compatible with standard RJ45 connectors

Power

Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)

DC Power Supply: 1 x 12V 1.2A DC Power Supply

Power Consumption: PoE: 11.0W – DC: 13.32W (When using supplied DC PSU)
