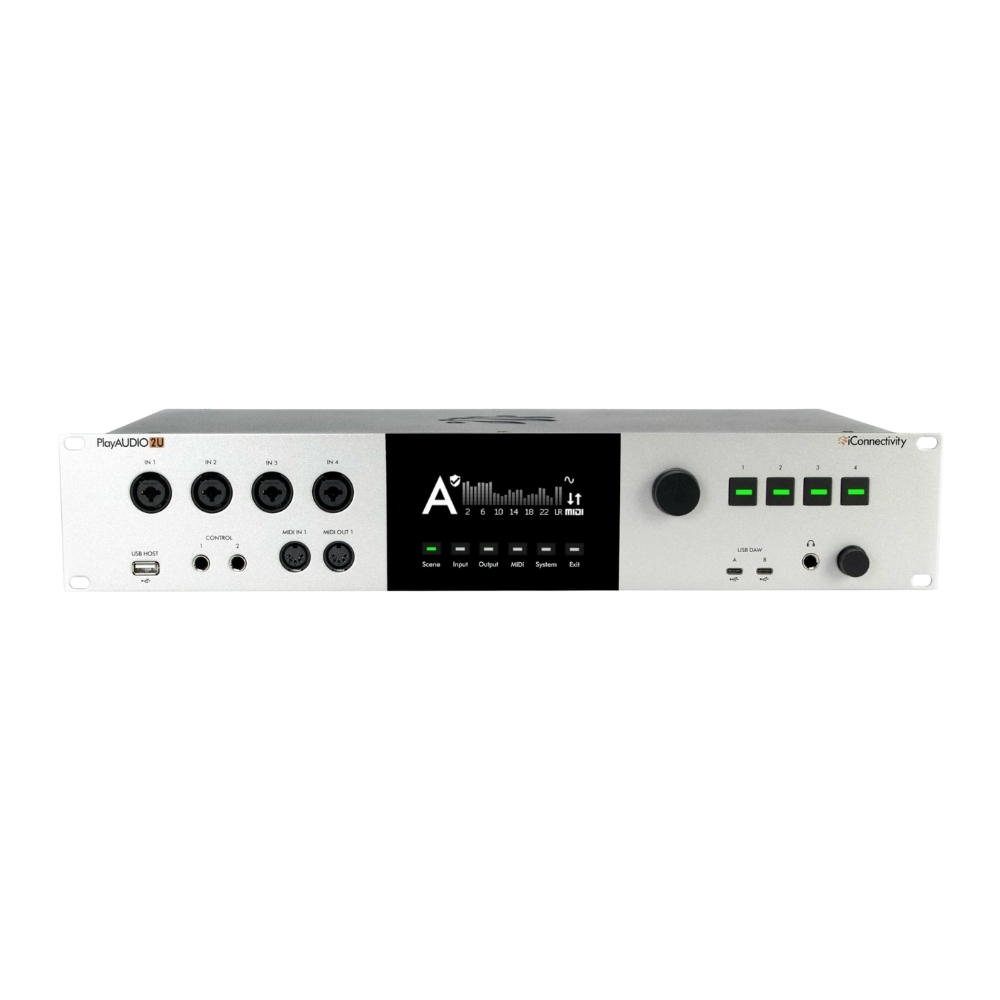

iConnectivity PlayAUDIO2U – Comprehensive Audio + MIDI Interface for Live Performance

OVERVIEW

The PlayAUDIO2U is a first-of-its-kind all-in-one solution built for modern live performance rigs. Designed to replace multiple interfaces, MIDI boxes, and backup systems, it integrates audio inputs and outputs, MIDI I/O, MIDI control, and RTP networking into a single, robust unit. Whether you’re running playback tracks, virtual instruments, or complex MIDI automation, PlayAUDIO2U simplifies your setup while dramatically increasing reliability.

Built with the realities of touring in mind, PlayAUDIO2U offers four pristine XLR/TRS combo inputs with ultra-low noise mic preamps and 48V phantom power, alongside an impressive 24 balanced, panel-reinforced XLR outputs that connect directly to snakes, looms, or stage boxes. High-resolution 24-bit/96kHz conversion ensures studio-quality sound on the biggest stages, while the advanced OLED display keeps critical system information visible at a glance.

At the heart of PlayAUDIO2U is iConnectivity’s legendary redundancy and protection technology. It actively monitors connected computers, audio streams, and MIDI data, instantly switching systems or muting outputs at the first sign of trouble – faster than the audience can hear. With unmatched MIDI routing flexibility, deep software control, and hardware-level safety, PlayAUDIO2U is the ultimate command centre for serious live performance.

KEY HIGHLIGHTS

Comprehensive Audio and MIDI Interface for Live Performance

Take command of your shows with PlayAUDIO2U, a comprehensive audio interface for live performance.

A first-of-its-kind all-in-one solution, PlayAUDIO2U delivers a massive set of tools in a robust tour-ready enclosure. Audio inputs, outputs, MIDI I/O, MIDI control, and RTP networking all integrated through iConnectivity’s legendary redundancy, let you input audio, playback tracks and/or virtual instruments, and connect MIDI throughout the venue.

PlayAUDIO2U streamlines your computer-based rig with one magic box that lets you do it all.

Audio Inputs Built for Live Performance

The PlayAUDIO2U delivers audio inputs tailored for the stage, offering silence when idle and a wide dynamic range to capture every detail with clarity.

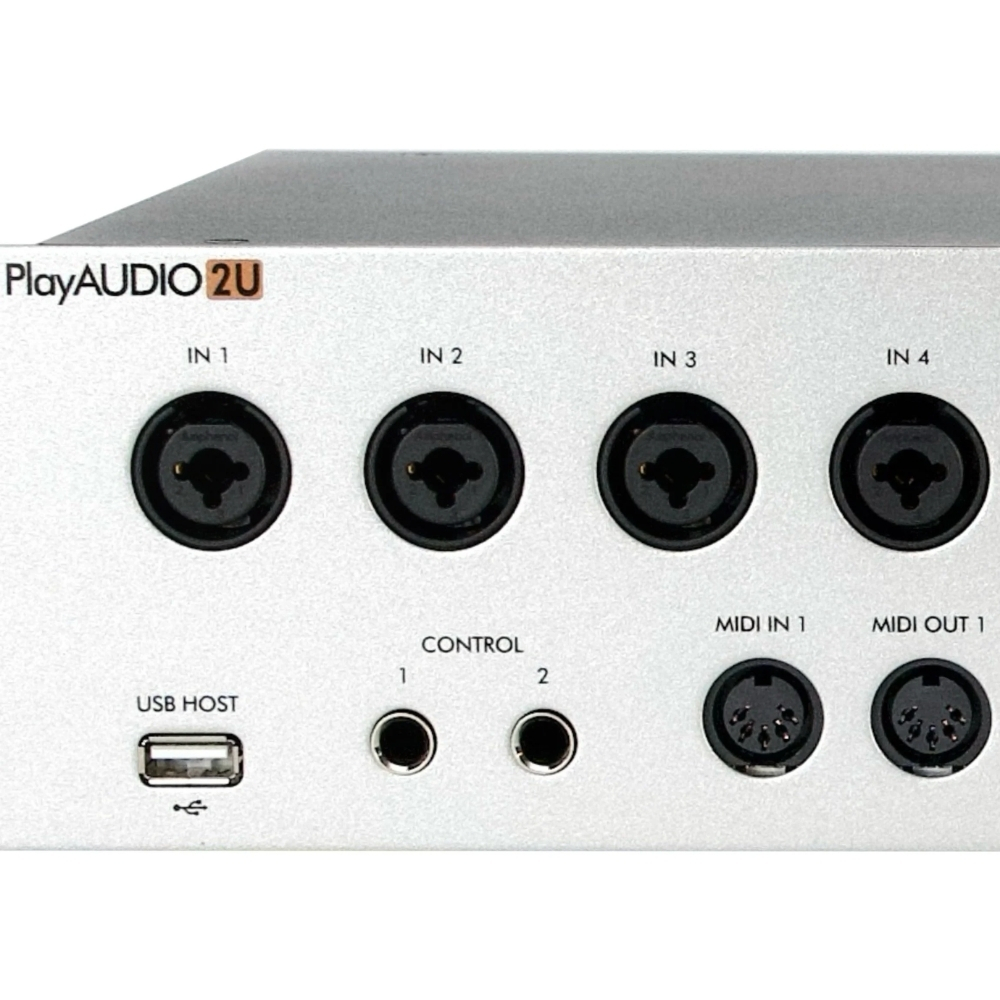

Its four XLR/¼” TRS combo inputs, paired with pristine mic preamps and 48V phantom power, are built to capture vocals and instruments cleanly without colouration or compromise.

Swiftly send audio to redundant performance computers for seamless processing of voices, instruments, and more, all within your tour-ready PlayAUDIO2U setup.

*The extra robust pre-amps merge industrial strength with studio subtlety.

For Aficionados of Outputs

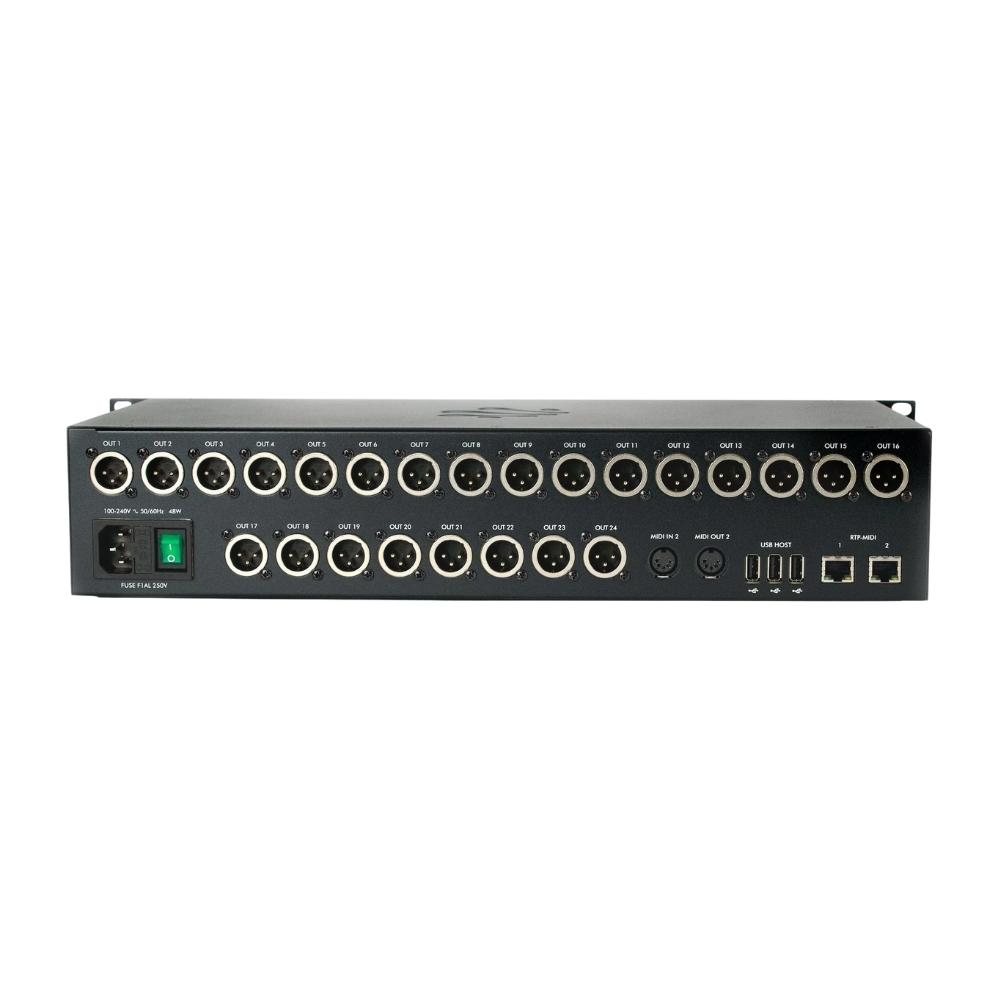

PlayAUDIO2U has a whopping 24 XLR outputs!

PlayAUDIO2U is ready for your performance. Plug it directly into your snake, loom, or stage box and go. Additionally, the XLR jacks are reinforced by the chassis, allowing them to withstand the rigours of the road more effectively.

It’s the perfect combination: top studio quality clarity, packaged for touring.

*Panel reinforced outputs mean your PlayAUDIO2U can be plugged and unplugged with ease before and after every show.

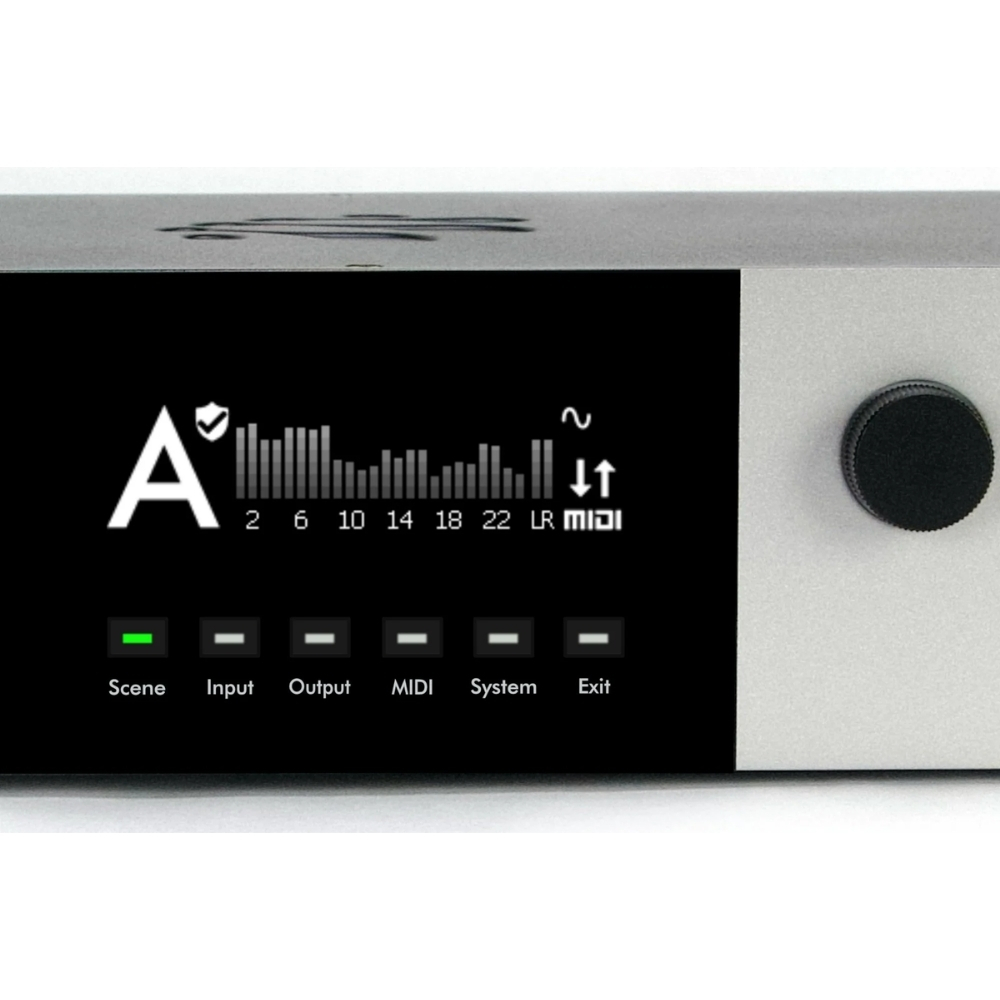

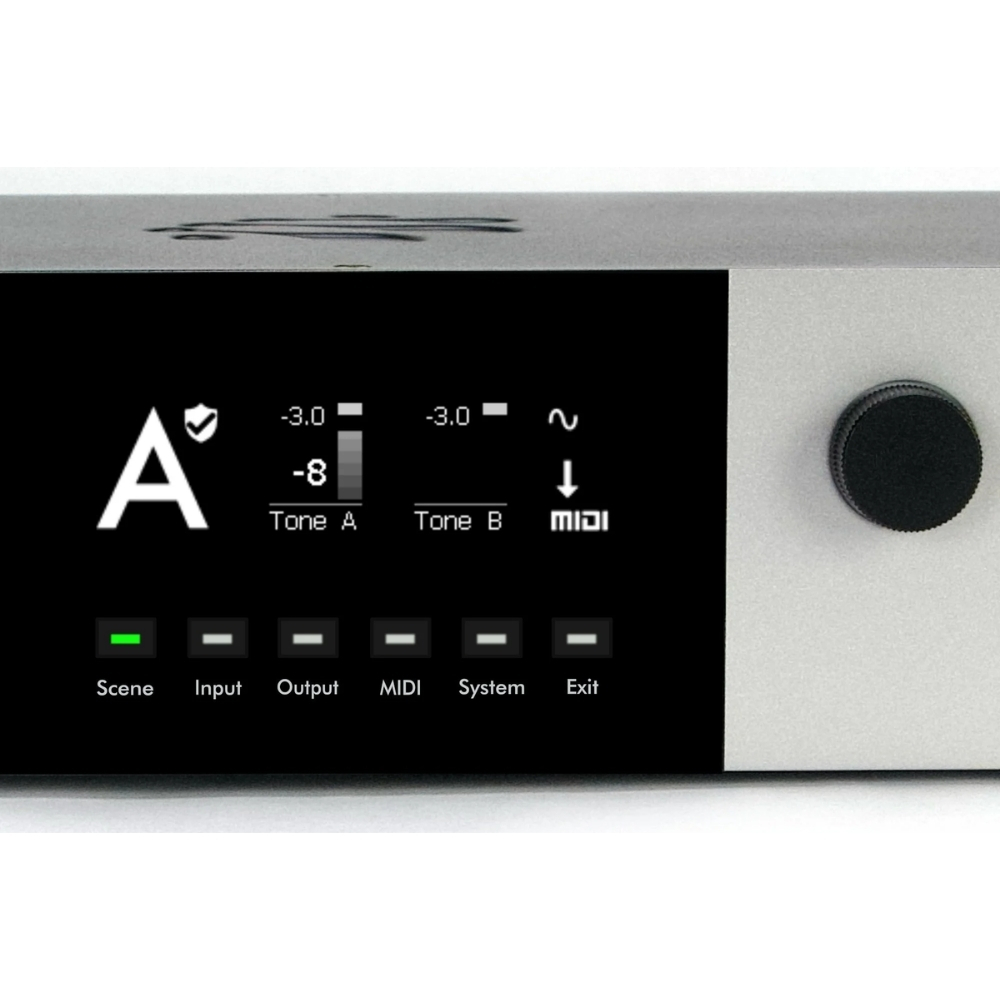

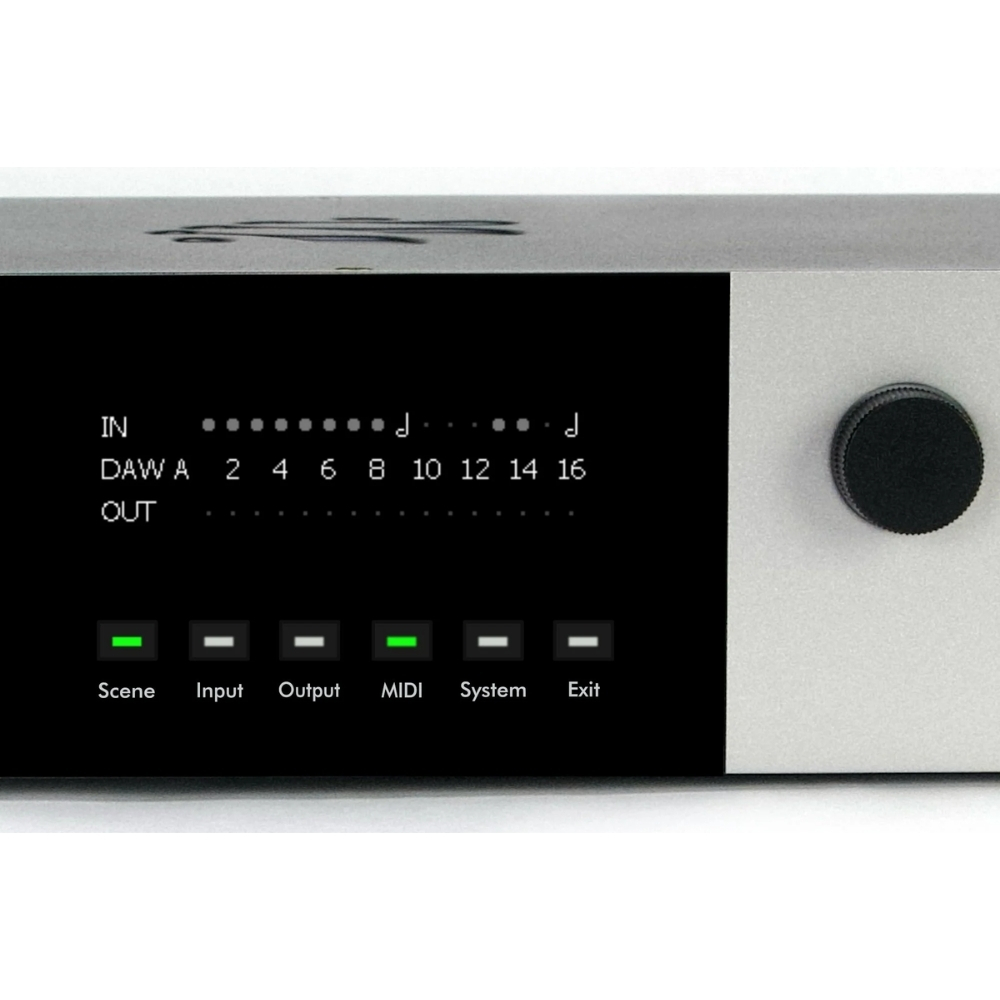

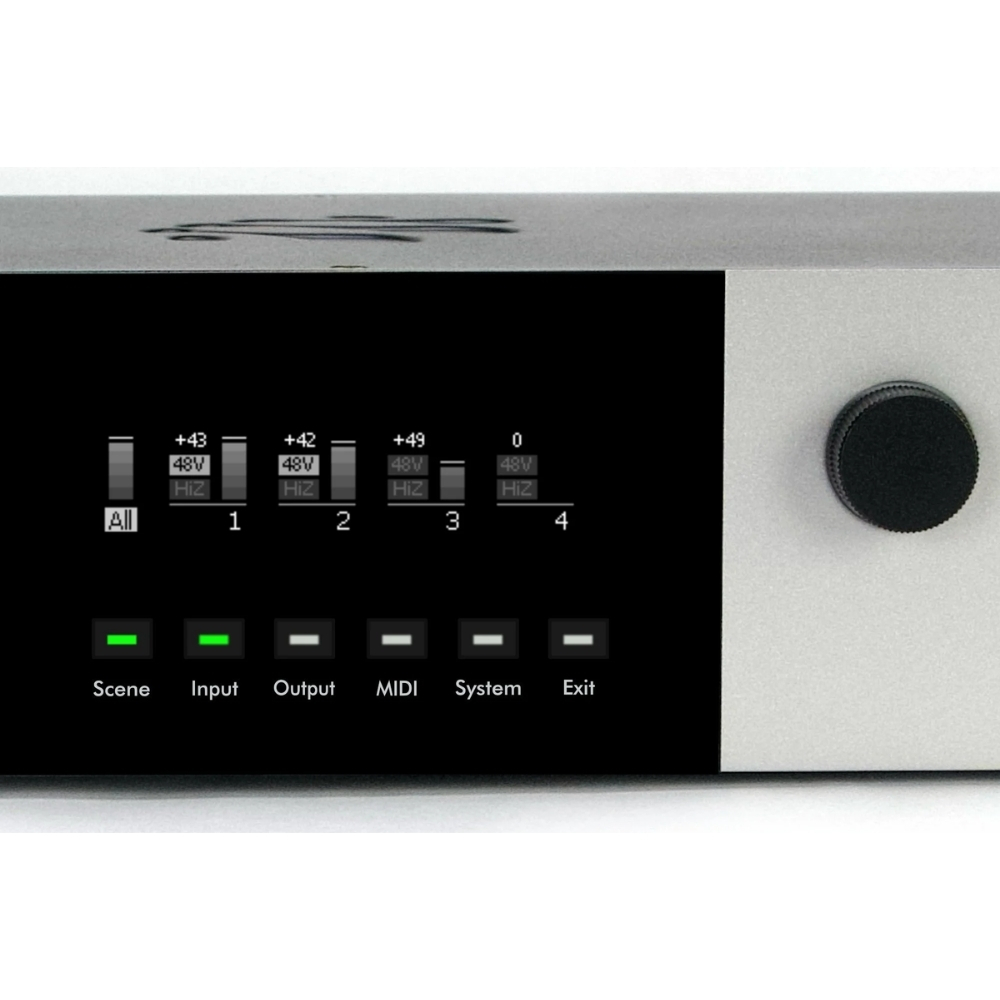

The PlayAUDIO2U Display – Your Live Performance Command Centre

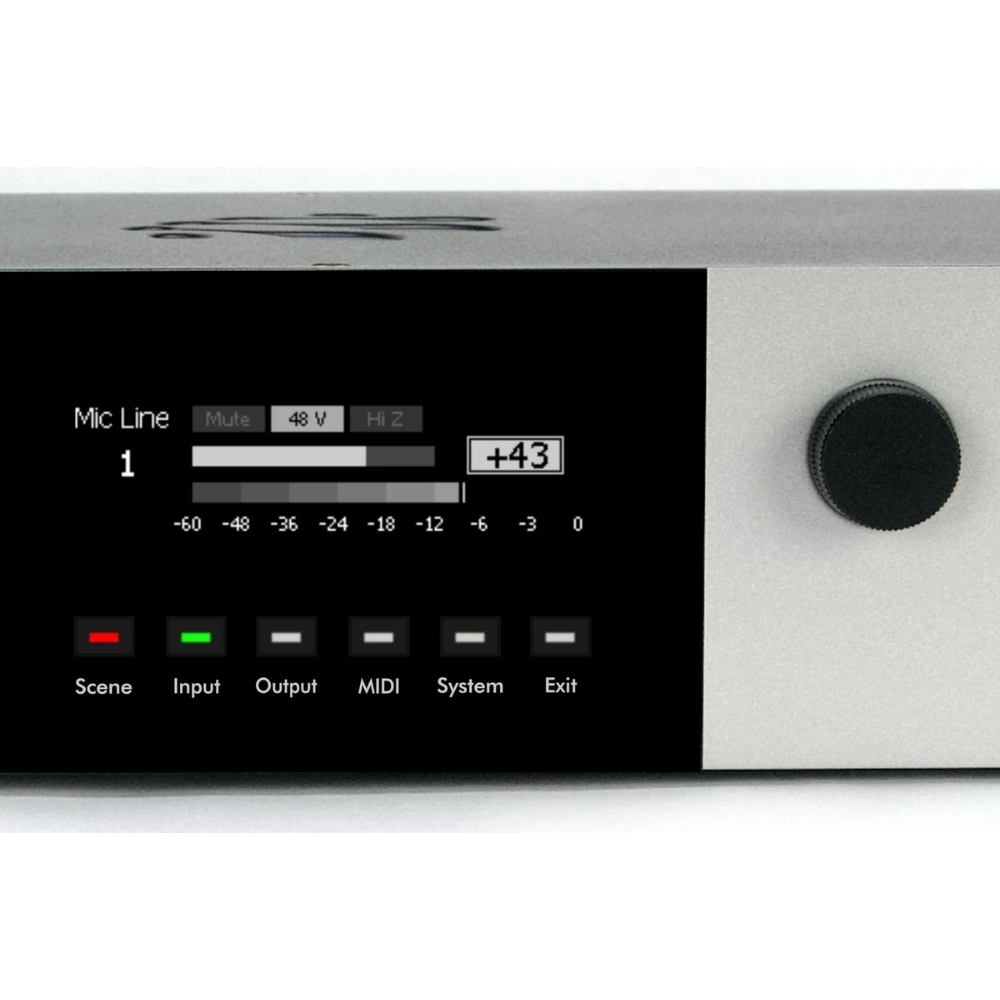

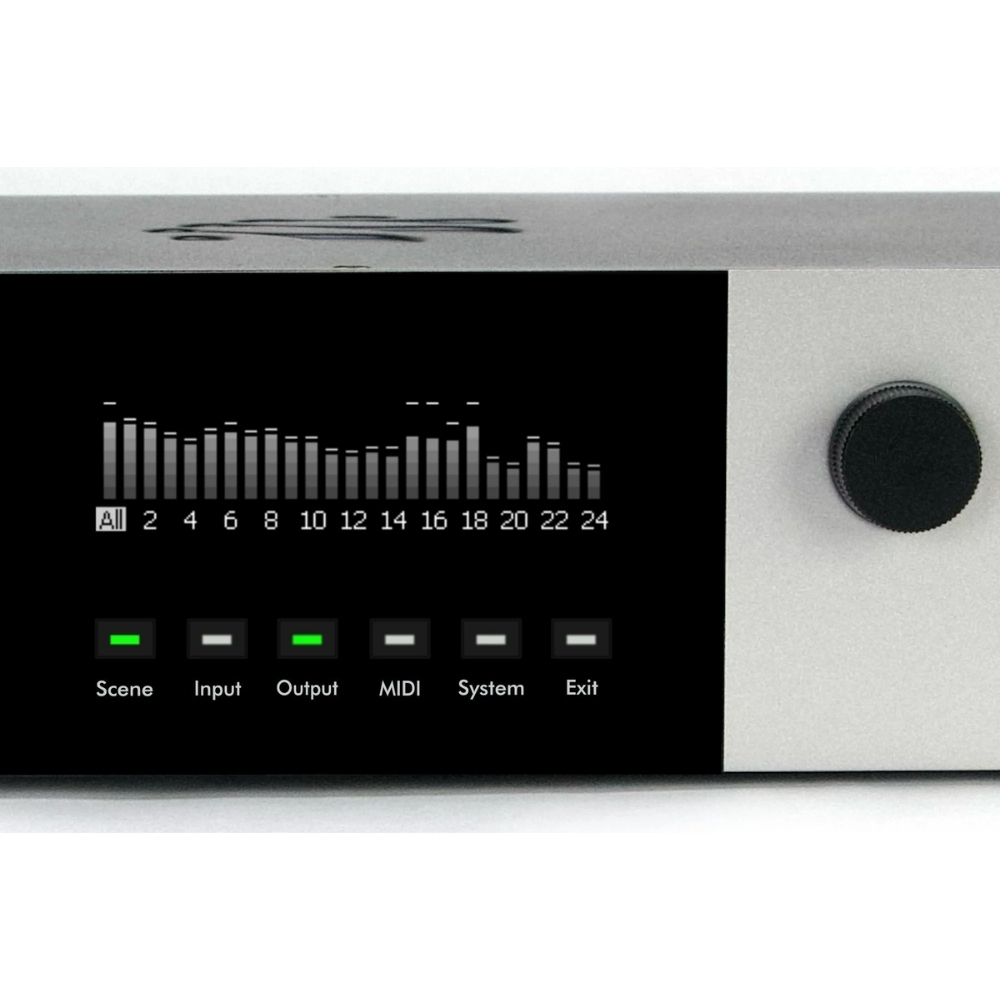

Like a trusted assistant, the PlayAUDIO2U’s advanced display delivers real-time insights into your setup. Monitor MIDI activity, audio levels, and system status at a glance, with instant warnings for computer failures or other issues, keeping you in complete control of your performance.

With the PlayAUDIO2U’s intuitive display, setting up your rig and troubleshooting problems is faster and easier than ever.

PlayAUDIO2U is a MIDI Miracle Worker

iConnectivity has been the leader in MIDI connectivity for years. The PlayAUDIO2U brings that expertise to your live performances. This beast of a MIDI interface and controller provides a staggering multitude of MIDI connectivity to connect performers and operators, allowing you to manage MIDI everywhere throughout your stage and venue.

The PlayAUDIO2U acts as your central MIDI hub and control centre, connecting devices via its integrated 5-pin MIDI DIN, USB host ports, computers, and dual RTP Ethernet ports for venue-wide networking. Its programmable control ports and four (4) assignable front-panel buttons let you even assign MIDI commands directly from the interface to control the show! This comprehensive interface simplifies even the most intricate MIDI workflows and enriches them effortlessly with reliability.

With PlayAUDIO2U, you tailor what MIDI goes where and when. For instance, iConnectivity’s powerful MIDI processing lets you easily send MIDI to connected computing devices while only sending one set of program changes to connected peripherals, send all notes off if computer failure occurs to avoid stuck notes, filter out extraneous CCs, and much more.

It’s a MIDI beast. iConnectivity’s famous flexibility is built in.

Uncompromising Protection for Your Performance

Engineered for the demands of touring, the PlayAUDIO2U ensures every detail is crafted to keep your show flawless.

Seamless Redundancy: The PlayAUDIO2U safeguards your performance with iConnectivity’s renowned multi-computer redundancy, actively monitoring audio signals or MIDI and instantly switching computers if issues arise – faster than anyone can hear.

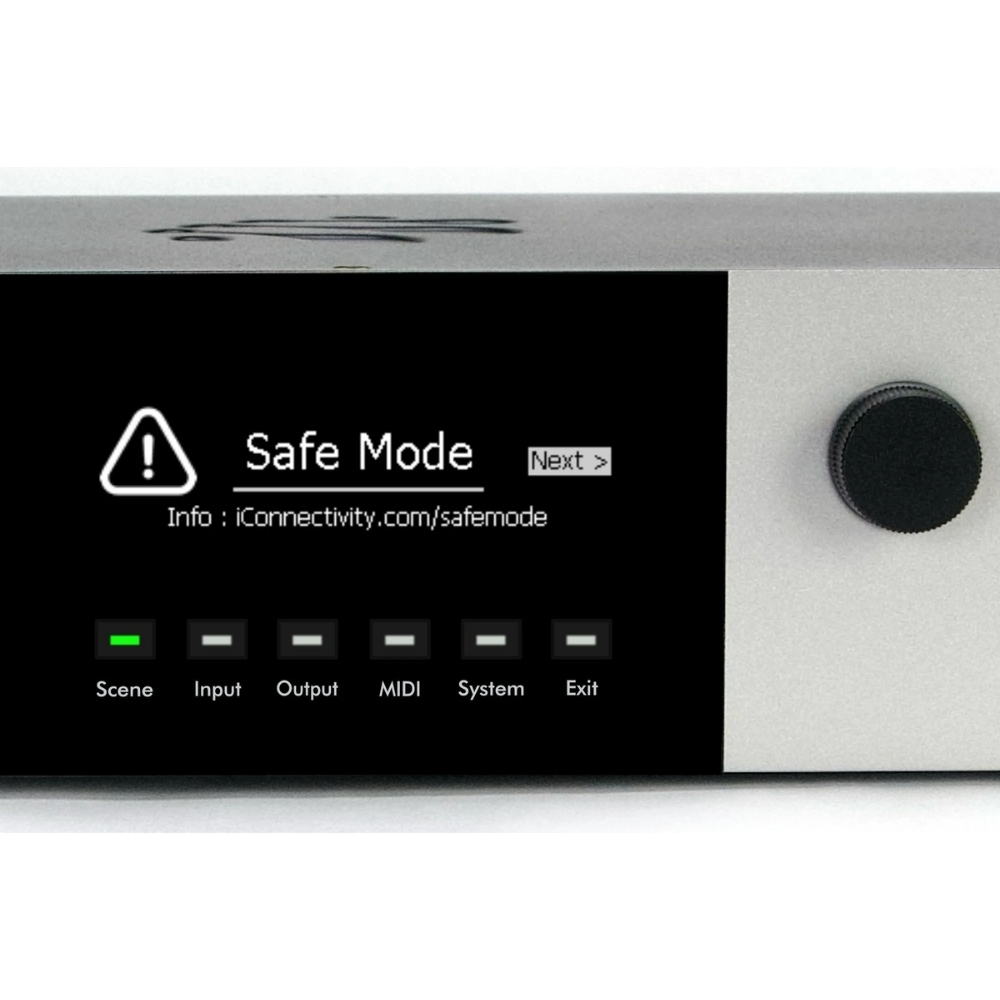

Advanced Audio Protection: Beyond detecting software glitches, it vigilantly monitors audio streams, automatically switching to a Safe Mode, muting outputs at the first sign of any potential trouble, and displaying diagnostics to prevent unwanted noise or glitches from reaching your PA system or monitors.

*PlayAUDIO2U is guarding your performance from issues caused by things like bad venue power, data corruption, etc.

FEATURES

• 2 x USB-C type ports for connecting computing devices
• Automatic and manual computer switching modes, for lightning-fast switching between connected computers

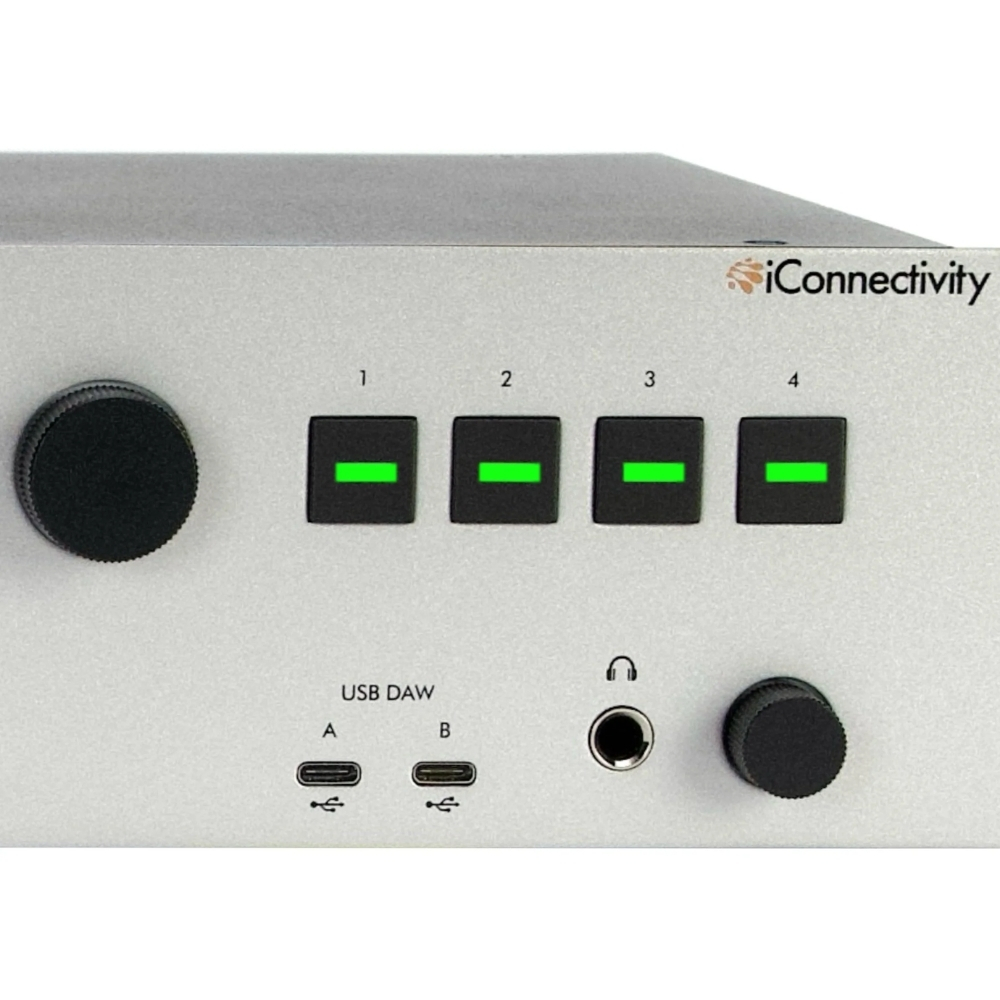

• 4 x user assignable buttons can be mapped to MIDI functions, control numerous functions on the interface and/or send control messages to compatible devices
• 2 x 2 button  “Control” footswitch jacks can be mapped to MIDI functions, control over numerous functions on the interface and/or sending control messages to compatible devices
• Audio Protection helps stop unwanted noise from corrupt audio sources/files from making it into the audience
• Auracle software enables you to tailor the PlayAUDIO2U’s settings to your exact needs
• High-resolution audio – Studio sound quality for the live arena – up to 24-bit/96kHz AD/DA conversion
• “MIDI learn” from external MIDI devices to control key functions on the interface
• Large OLED screen for instantaneous status information and precise control
• 2U ready-to-tour rack-mountable chassis

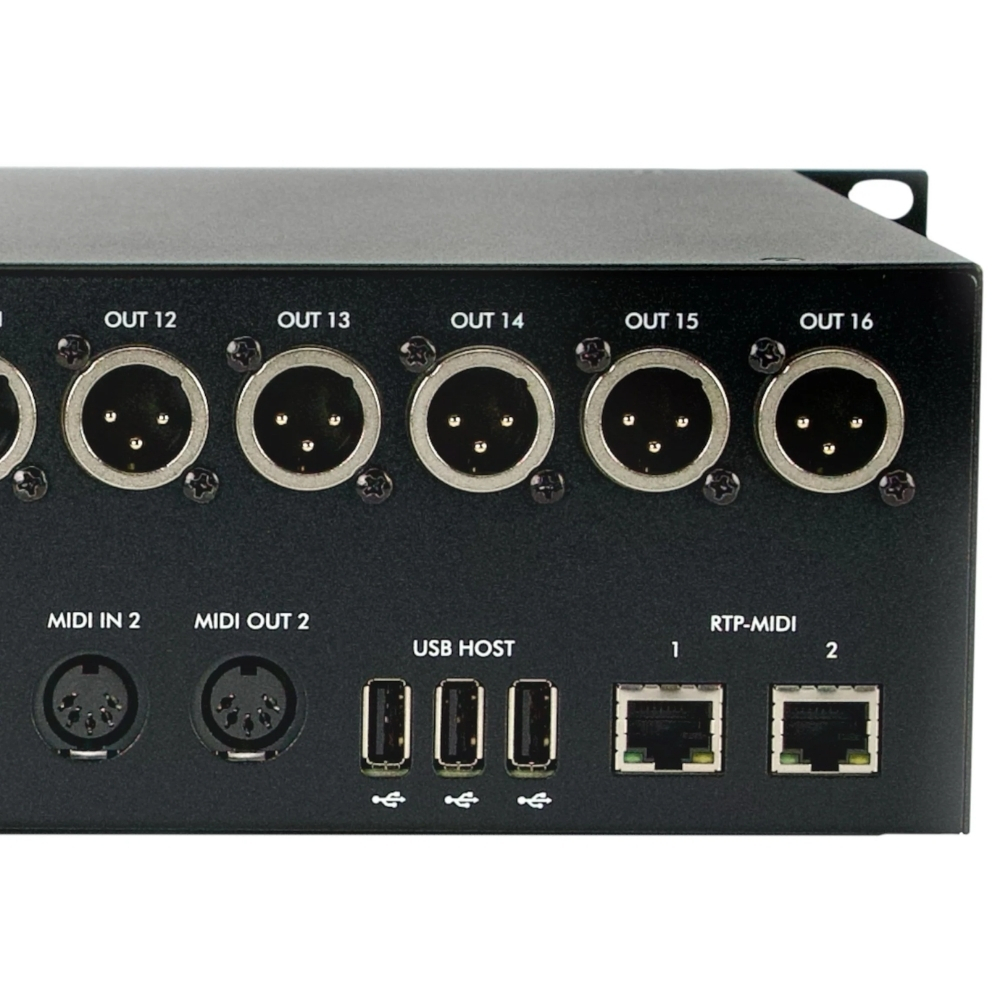

• 24 x Balanced panel reinforced XLR outputs
• 4 XLR / ¼” TRS combo analog inputs
• 4 pristine ultra-low noise microphone preamps with 48V phantom power
• Integrated +48v phantom power resistance on outputs protects your interface from accidental damage when plugging directly into consoles or stage boxes (please note we cannot guarantee 100% protection indefinitely. It is best practice not to send +48v phantom power into any audio interface’s outputs)
• 1 x 1/4” TRS stereo headphone output with dedicated control for convenient headphone monitoring
• 4 x USB MIDI host ports, offering USB MIDI connectivity  for Class Compliant controllers and/or modules
• DIN-MIDI ports built-in (2 in 2 out)
• Dual Ethernet MIDI jacks with a total of 22 ports of connectivity for rugged long-distance MIDI connections
• Comprehensive audio mixing and routing between connected USB computing devices and analog outputs
• Easy-to-use buttons and rotary encoders provide software-less control over PlayAUDIO2U’s key features from the front panel
• 100-240V switching power built-in with Industry-Standard IEC Power Connection

*The features of PlayAUDIO2U are patented and patent-pending. See www.iConnectivity.com/patents for more information.

**Product features are subject to change. iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iConnectivity, iConnectMIDI, PlayAUDIO, iConnectAUDIO, ConnectAUDIO, and Audio passThru are trademarks of iKingdom Corp. Copyright (c) iKingdom Corp. 2025.

BUNDLED SOFTWARE & SOUNDS

Big Fish Audio is a developer and distributor of premium virtual instruments, samples, and loop content. iConnectivity is proud to include a special sampler of Big Fish Audio samples and loops that’s perfect to jumpstart or augment your production when you register your iConnectivity audio interface.

Ableton Live Lite is a fantastic music creation software and also live performance tool. Ableton Live Lite is available upon registration of your PlayAUDIO2U.

TECHNICAL SPECS

Product Type: Audio + MIDI Interface for Live Performance

Audio Resolution: Up to 24-bit / 96kHz AD/DA Conversion

Rack Size: 2U Rackmount

Audio Outputs: 24 × Balanced XLR (panel reinforced)

Audio Inputs: 4 × XLR / ¼” TRS Combo Inputs

Mic Preamps: 4 × Ultra-Low Noise Preamps with +48V Phantom Power

Headphone Output: 1 × ¼” TRS Stereo with Dedicated Level Control

Computer Connections: 2 × USB-C Ports

USB MIDI Host Ports: 4 × USB MIDI Host Ports

DIN MIDI:

• 2 × MIDI In
• 2 × MIDI Out

Ethernet MIDI: Dual RTP Ethernet Ports (up to 22 MIDI connections)

Redundancy: Automatic and Manual Multi-Computer Switching

Display: Large OLED Status and Control Screen

Power: 100–240V Internal Switching PSU, IEC Inlet

Compatibility:

• macOS
• Window
• iOS
• Android

Included Cables:

• 2 × USB-C to USB-C
• 4 × IEC Power Cables

Dimensions:

• Width — 482 mm (18.98”)
• Height — 87 mm (3.43”)
• Depth — 200 mm (7.87”)

Weight: 3.8 kg (8lbs. 6oz)

SYSTEM REQUIREMENTS

Macintosh — Mac OS X 10.13 or later (for Auracle control software)

Windows — Windows 10 or later (for Auracle control software)

iOS — iOS 8 or greater*

CoreMIDI compatible app

*Apple Lightning to USB Camera adapter required for use with Lightning-equipped iOS devices (adapter not included)

Android — Android 8.0 or higher with USB-C connector

*Product features are subject to change. Apple logo, Macintosh, OS X, Mac, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iConnectivity is a registered Trademark of iKingdom Corp. PlayAUDIO2U, PlayAUDIO1U, PlayAUDIO12, AUDIO4C, iConnectMIDI, iConnectAUDIO, ConnectAUDIO, mio, and Audio passThru are trademarks of iKingdom Corp. Copyright (c) iKingdom Corp. 2025.

WHAT’S IN THE BOX?

1 x PlayAUDIO2U Audio + MIDI interface

2 x USB-C to USB-C cables

4 x IEC power cables – Type B, G, F, and I (for Australia) – one per type.

DOWNLOADS

• Product Manual
• Firmware
• Windows Drivers
• Control Software
