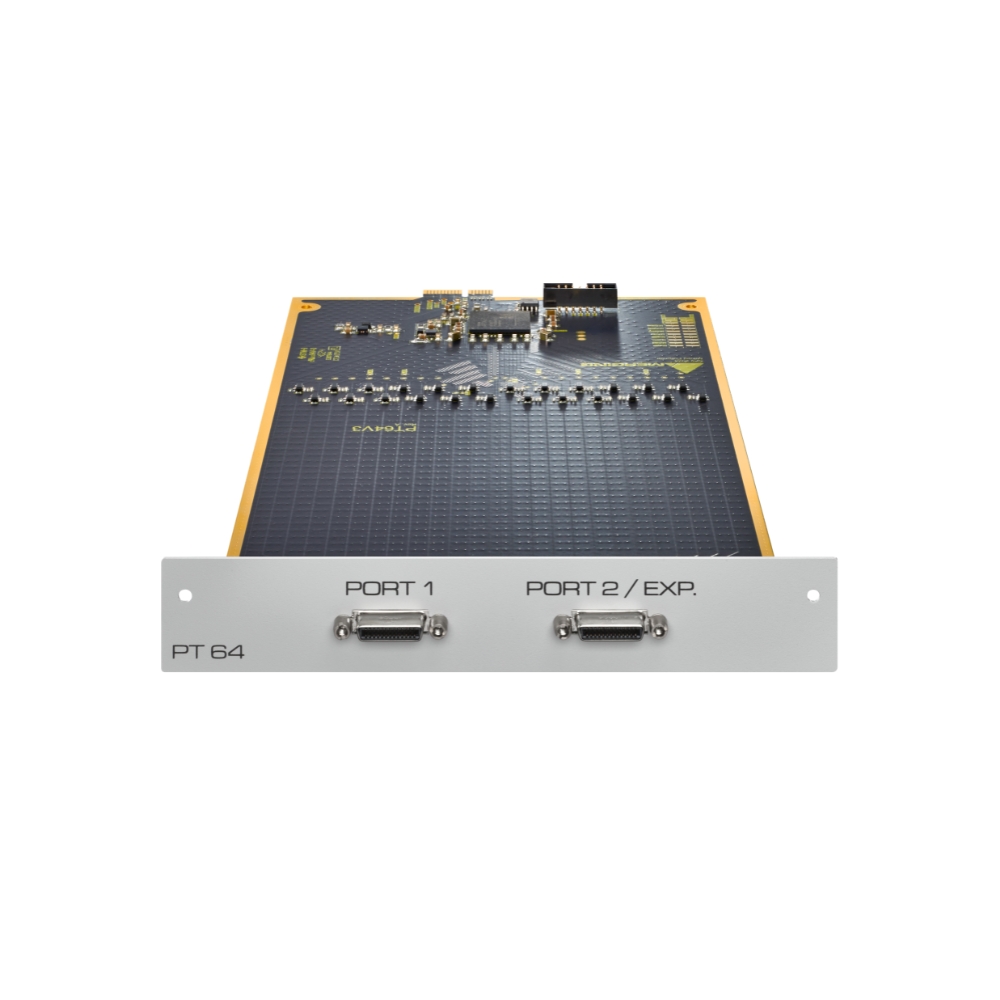

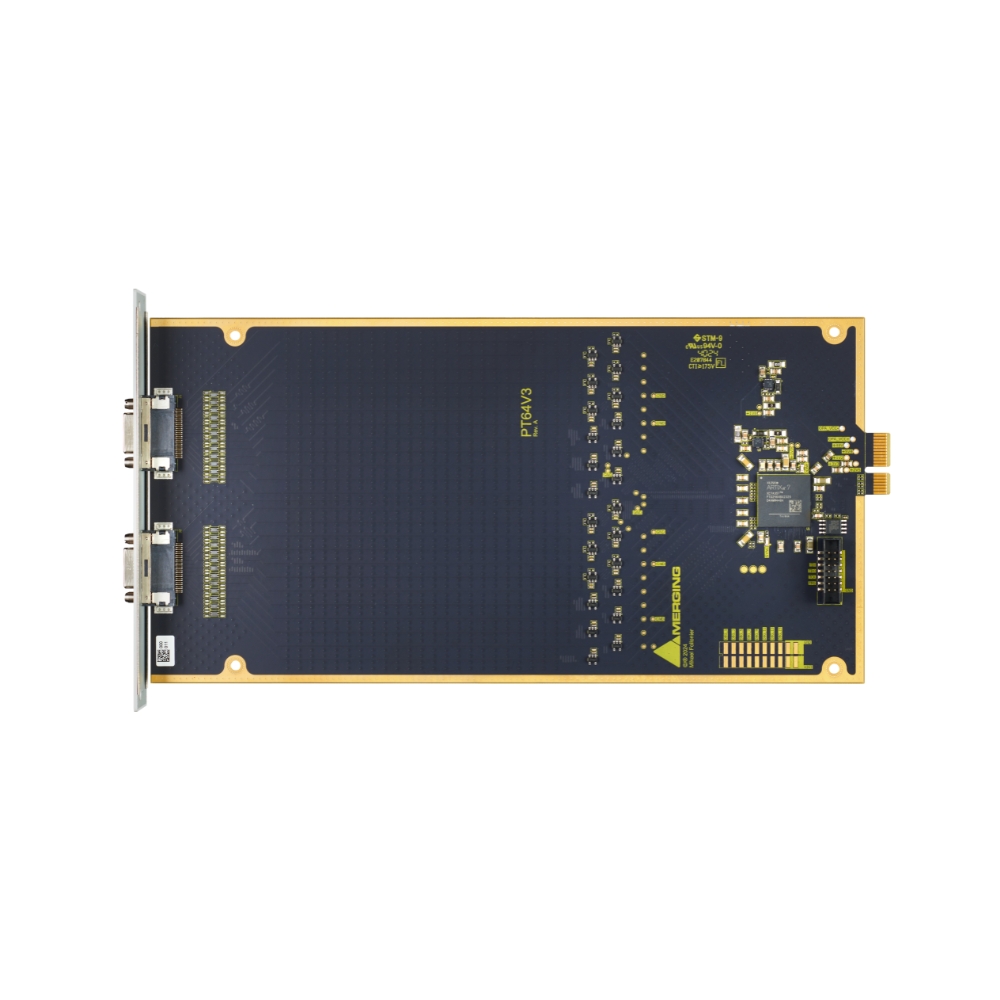

Merging Technologies PT64V3 – 64-Channel Pro Tools DigiLink I/O Expansion Card for HAPI MKIII

OVERVIEW

Seamlessly Connect Pro Tools to Networked Audio

The Merging Technologies PT64V3 is a professional 64-channel Pro Tools DigiLink I/O expansion card designed specifically for the HAPI MKIII. It provides direct, ultra-low-latency connectivity between Avid Pro Tools HDX or HD Native systems and professional RAVENNA/AES67 or Dante audio networks, allowing studios to combine the power of Pro Tools with Merging Technologies’ renowned audio conversion and networked audio ecosystem. Featuring two Mini DigiLink connectors, the PT64V3 supports up to 64 channels at 44.1/48kHz, 32 channels at 88.2/96kHz, and 16 channels at 176.4/192kHz.

Designed for professional music production, broadcast and post-production, the PT64V3 enables users to take full advantage of the HAPI MKIII’s premium microphone preamps, A/D and D/A conversion, while integrating seamlessly with Pro Tools workflows. It also provides direct access to the advanced monitoring capabilities found in Merging Technologies ANUBIS and the Neumann MT 48, making it an excellent solution for immersive monitoring, personal cue mixes and complex networked studio environments.

Supporting Automatic Delay Compensation, multiple hardware emulation modes and scalable multi-card configurations, the PT64V3 is equally suited to small studios and large production facilities. Install up to two PT64V3 cards in a single HAPI MKIII for up to 128 DigiLink channels, or build even larger HDX systems using multiple HAPI units for exceptional flexibility and performance.

KEY HIGHLIGHTS

Native Pro Tools HDX Integration

The PT64V3 provides direct DigiLink connectivity between HAPI MKIII and Pro Tools HDX or HD Native systems, delivering reliable, ultra-low-latency audio performance for professional recording and mixing.

Up to 64 Channels of DigiLink I/O

Each PT64V3 supports up to 64 simultaneous input and output channels at 44.1/48kHz, with automatic scaling at higher sample rates for high-resolution recording sessions.

Connect Pro Tools to RAVENNA or Dante

Bridge Pro Tools directly into RAVENNA/AES67 or Dante networked audio environments, allowing seamless integration with HAPI MKIII, ANUBIS, Neumann MT 48 and other compatible network devices.

Automatic Delay Compensation

Built-in hardware emulation modes accurately replicate Avid interface latency, ensuring Pro Tools maintains precise Automatic Delay Compensation during recording and playback.

Expandable Professional Workflow

Install two PT64V3 cards within a single HAPI MKIII for up to 128 DigiLink channels, enabling scalable systems for music production, broadcast, immersive audio and post-production facilities.

FEATURES

• 64-channel Pro Tools DigiLink I/O expansion card for the Merging Technologies HAPI MKIII.
• Provides direct connectivity between Pro Tools HDX/HD Native systems and RAVENNA/AES67 or Dante audio networks.
• Two Mini DigiLink ports support up to 64 simultaneous input and output channels.
• Supports up to 64 channels at 44.1/48kHz, 32 channels at 88.2/96kHz and 16 channels at 176.4/192kHz.
• Compatible with Pro Tools HDX, HD Native and HD Native Thunderbolt systems.
• Supports Automatic Delay Compensation through multiple hardware emulation modes.
• Hardware emulation includes Avid HD I/O, HD MADI and 192 I/O latency profiles.
• Enables direct access to HAPI MKIII premium microphone preamps and high-end A/D and D/A conversion.
• Integrates with Merging Technologies ANUBIS and Neumann MT 48 monitoring workflows.
• Up to two PT64V3 cards can be installed in a single HAPI MKIII for up to 128 DigiLink channels.
• Ideal for professional recording studios, broadcast, immersive audio and post-production applications.
• Designed specifically for the Merging Technologies HAPI MKIII platform.

TECHNICAL SPECS

General

Product Type: Pro Tools DigiLink I/O Expansion Card

Compatibility: Merging Technologies HAPI MKIII (also compatible with HAPI MKII)

Interface: Internal expansion card

Audio Network Compatibility: RAVENNA/AES67 and Dante (Dante licence required where applicable)

Supported DAWs: Avid Pro Tools HDX, HD Native and HD Native Thunderbolt

DigiLink Connectivity

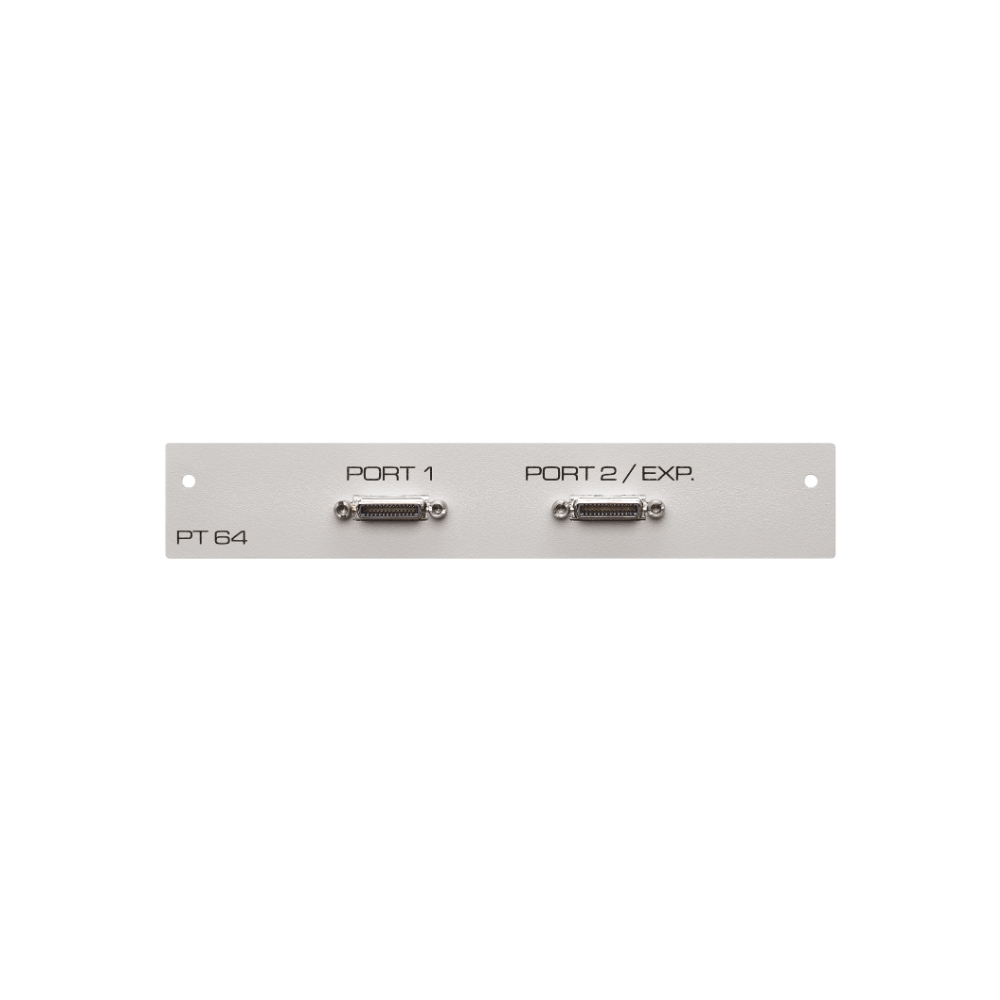

DigiLink Ports: 2 × Mini DigiLink

Port Configuration:

• Port 1: Channels 1–32
• Port 2: Channels 33–64 (44.1/48kHz operation)

Supports single-port operation for 32-channel configurations where applicable.

Channel Capacity

44.1 / 48kHz: 64 Inputs / 64 Outputs

88.2 / 96kHz: 32 Inputs / 32 Outputs

176.4 / 192kHz: 16 Inputs / 16 Outputs

DXD / 384kHz: Not supported

Compatibility

Pro Tools HDX

Pro Tools HD Native

Pro Tools HD Native Thunderbolt

HAPI MKIII

HAPI MKII (RAVENNA/AES67 mode)

ANUBIS Monitoring Engine

Neumann MT 48 Monitoring Missions

Hardware Features

Automatic Delay Compensation support

HD I/O hardware emulation

HD MADI hardware emulation

192 I/O hardware emulation

Ultra-low-latency DigiLink operation

Supports installation of up to two PT64V3 cards per HAPI MKIII

Integrates seamlessly with modular HAPI MKIII expansion architecture

Applications

Professional Music Recording

Mixing & Mastering

Broadcast Production

Film & Television Post-Production

Dolby Atmos & Immersive Audio Workflows

Large-Scale Networked Audio Systems

Pro Tools HDX Studio Integration
