Focusrite RedNet D16R MKII – 16×16 AES3 I/O Interface with Level Control and Redundant Network & Power

OVERVIEW

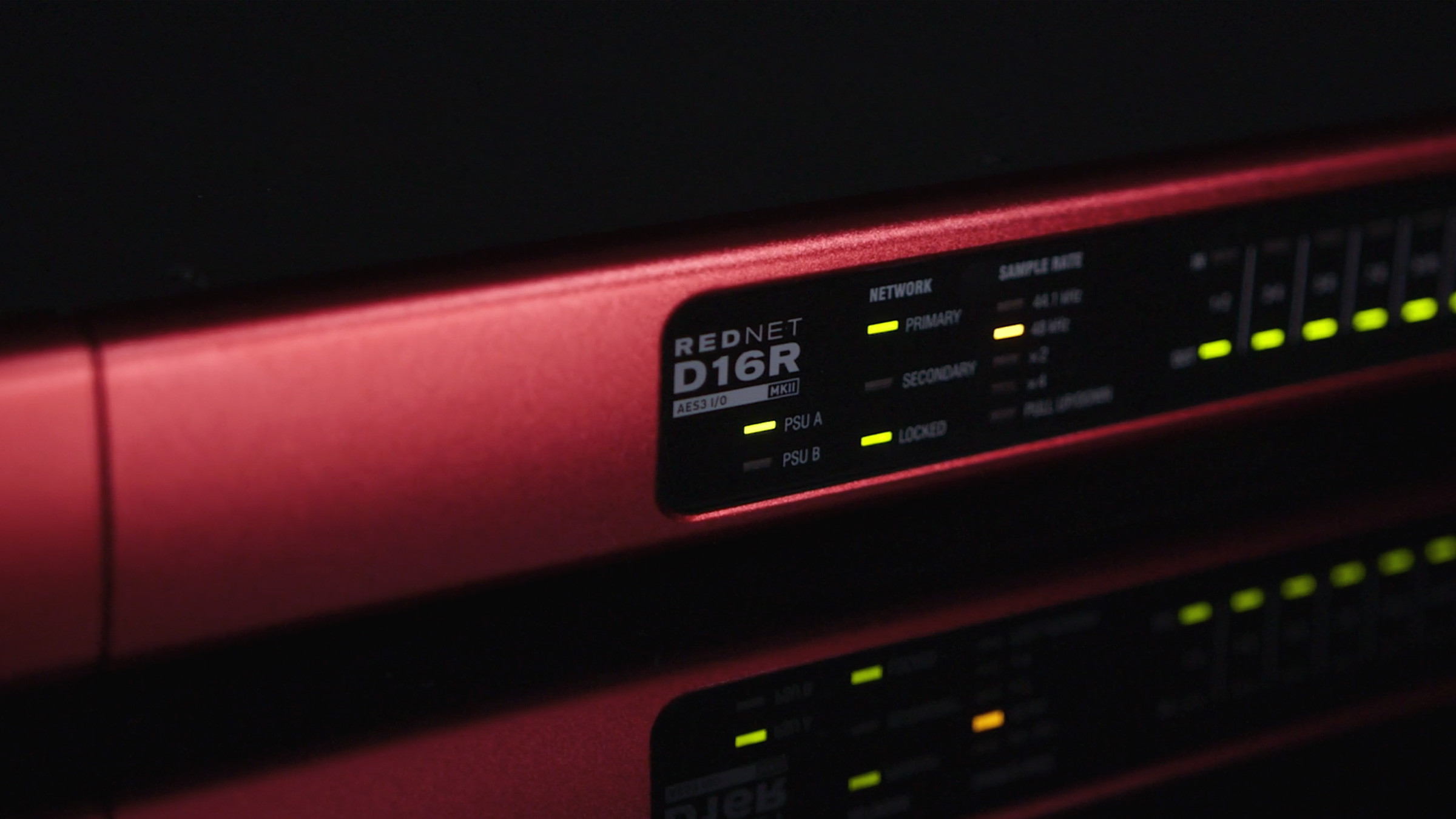

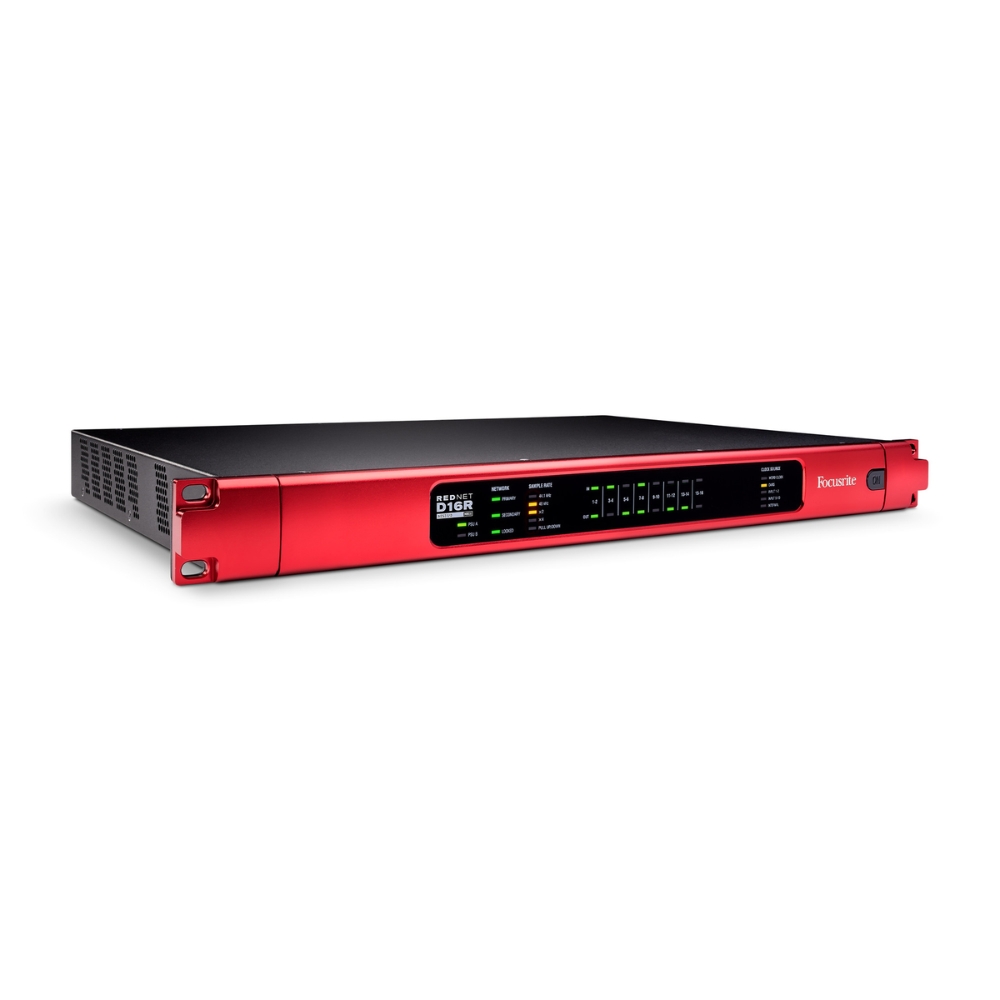

The RedNet D16R MKII is a 16-channel bi-directional digital interface for Dante networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MK2 features a power supply and Ethernet redundancy with auto switchover in case of failure.

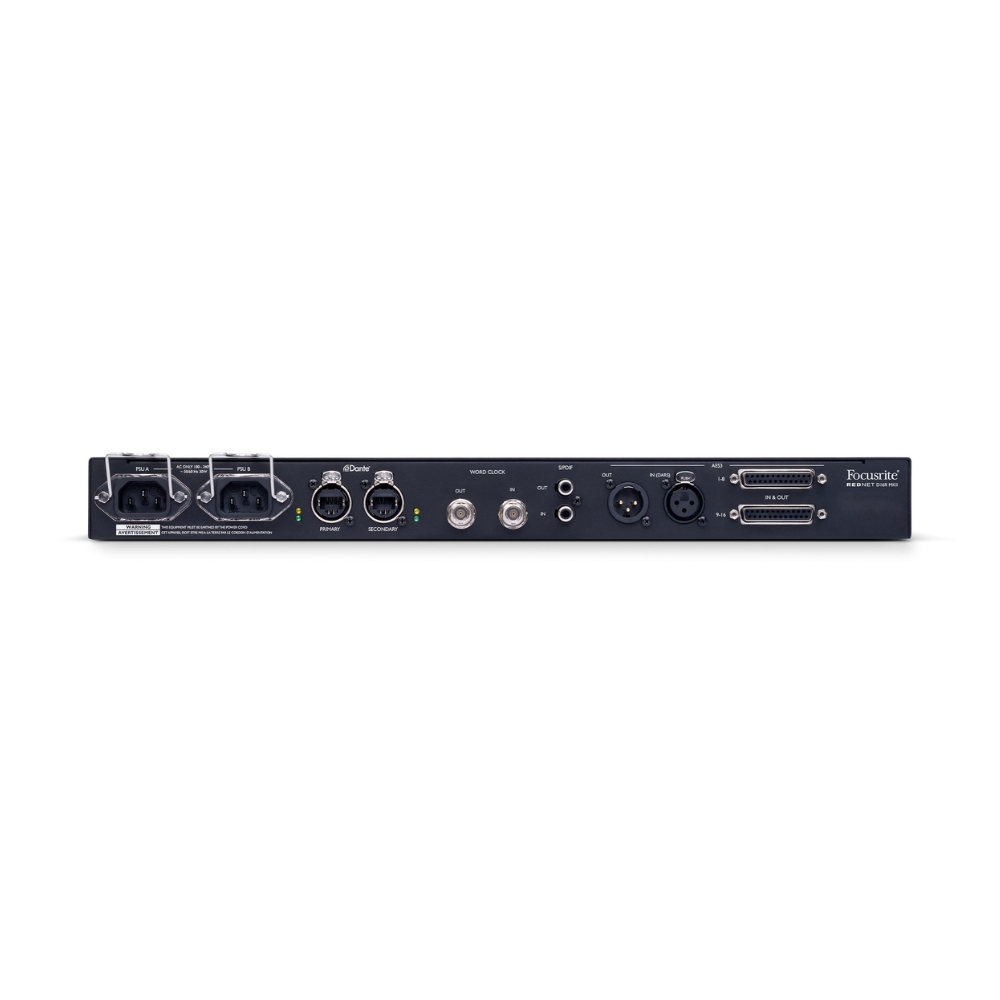

Various connection options make RedNet D16R MK2 a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made. Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to the house clock, or syncing external equipment to the Dante network.

KEY HIGHLIGHTS

16×16 AES3 I/O with Independent Level Control

The RedNet D16R MkII is a 16-channel bi-directional AES3 interface for Dante® networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MkII features a power supply and Ethernet redundancy with auto switchover in case of failure.

Various connection options make RedNet D16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made.

Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to the house clock, or syncing external equipment to the Dante network.

Brainworx bx_console

The Focusrite Studio Console reborn in your DAW

The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx’s bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.

Enjoy 3 Years of Warranty

All Focusrite products are built to the highest standards and are designed to provide many years of reliable performance.

FEATURES

• 16-channel bi-directional digital interface for Dante networks.
• Individual input and output channel level control using RedNet Control software.
• Dual PSUs with locking IEC inlets.
• Dual locking EtherCON connectors for Primary and Secondary network connections.
• Power supply and Ethernet redundancy with auto switchover in case of failure.

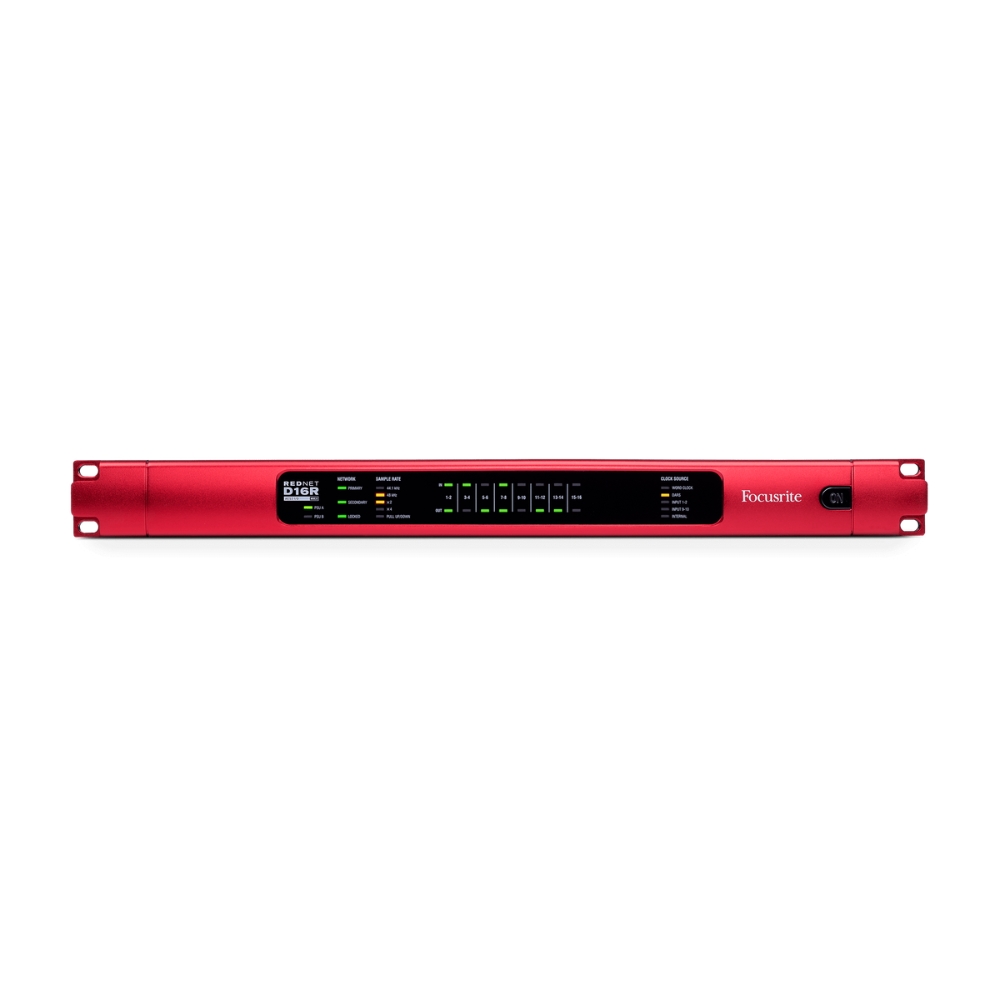

• Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
• Sample rate conversion on all input channels.
• Two DB25 connectors with AES59 standard configuration; each carries eight channels of AES3 I/O.
• RCA connectors for two-channel S/PDIF input and output.
• XLR connections for alternate AES3 I/O and DARS input.
• BNC connectors for Word Clock input and output.
• Compact 1U chassis allows maximum functionality in minimum rack space.
• Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
• Remote routing and control using RedNet Control and Dante Controller.

TECHNICAL SPECS

Input/Output Trim

Input Trim: -78 to 0dB in 1dB steps (per channel)

Output Trim: -78 to 0dB in 1dB steps (per channel)

Input Sample Rate Converters

Sample Rate Range: 32Hz to 214kHz

Gain Error: -0.3dB

Dynamic Range: Greater than 138dB (-60 dBFS method)

THD + N: Less than -130dB (0.00003%); 0 dBFS input

Latency: 11 to 45 samples (network and input sample rate dependent)

Digital Performance

Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit

Clock Sources: Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master

External Word Clock Range: Nominal sample rate ±7.5%

AES / EBU

Channel Count: 2 x 2 S/PDIF Channels (reduces AES/EBU input channels)

Input & Output: 2 x DB25 connectors (AES59 Combined I/O / Tascam Digital)

Alternate Input (Optional DARS): 1 x Female XLR (replaces DB25 channels 1-2)

Alternate Output: 1 x Male XLR (duplicates DB25 channels 1-2)

S/PDIF

Channel Count: 2 x 2 S/PDIF Channels (reduces AES/EBU input channels)

Input: 1 x RCA phono socket (replaces DB25 channels 3-4)

Output: 1 x RCA phono socket (switchable, duplicates any DB25 channel pair)

Word Clock

Input: 1 x BNC 75Ω port (switchable termination)

Output: 1 x BNC 75Ω port

PSU & Network Connections

PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30VA

Network: 2 x EtherCON NE8FBH-S, also compatible with standard RJ45 connectors (Accomodates rugged EtherCON NE8MC*. Does not intermate with Cat 6 cable connector NE8MC6-MO and NKE65* cable)
