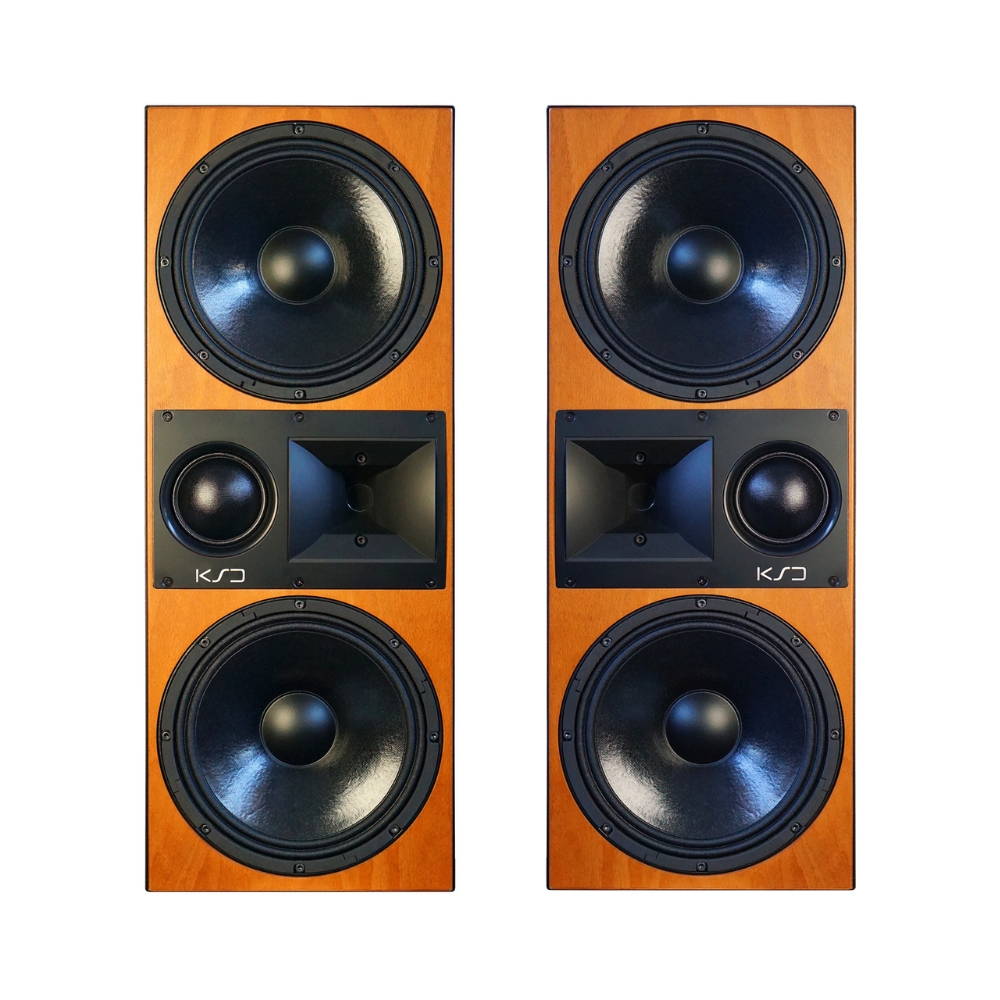

KSD_A500_-_3-Way_Active_Main_Reference_Monitor_Cherry_PAIR_-_1_Front

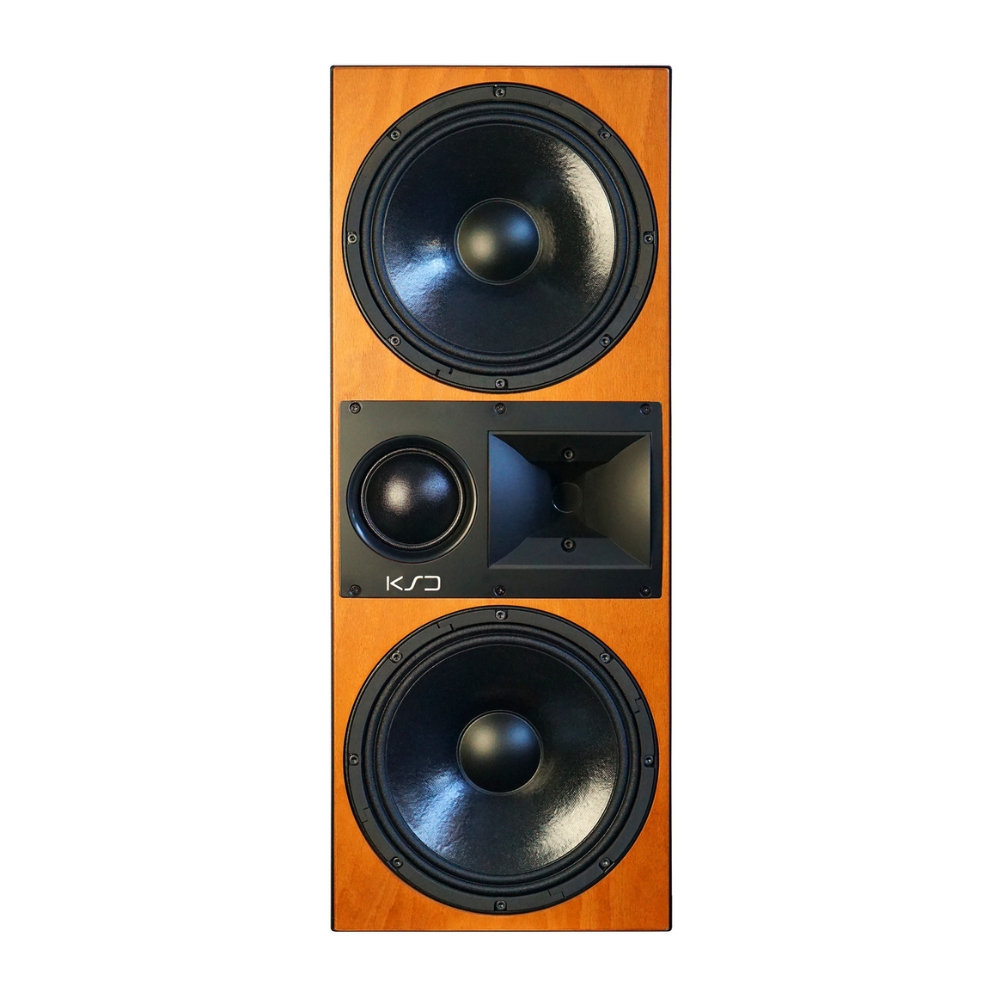

KSD_A500_-_3-Way_Active_Main_Reference_Monitor_Cherry_PAIR_-_2_Front_Left

KSD_A500_-_3-Way_Active_Main_Reference_Monitor_Cherry_PAIR_-_3_Front_Right

KSD A500 – 3-Way Active Main Reference Monitor (Cherry) PAIR

Name: KSD A500 – 3-Way Active Main Reference Monitor (Cherry) PAIR
Brand: KSdigital
SKU: KSD-A500-Cherry

$18,999.00

The Main Active Monitor for All Applications.

Flagship 3-way active main reference monitor of the KSdigital A-Class, engineered for uncompromising resolution, powerful output, and accuracy thanks to proprietary phase-linear FIRTEC™ technology. Featuring dual 10″ bass drivers, a dedicated 3″ dome midrange, and a horn-loaded compression tweeter, the A500 delivers time-correct sound reproduction with exceptional depth, clarity, and dynamic integrity – making it ideal for tracking, mixing, and mastering in demanding professional environments.

Cherry finish.

*Sold as a Pair.

SKU: KSD-A500-Cherry Categories: Active Monitors, MONITORING

Brands: KSdigital

Brand: KSdigital

Description

KSD A500 – 3-Way Active Main Reference Monitor (Cherry) PAIR

OVERVIEW

The A500 is the primary monitor in the KSdigital A-Class, featuring a double 10″ bass and a horn-supported tweeter. It functions as a classic 3-way reference monitor, providing high sound pressure and accurate tonal reproduction through KSD’s time-correct sound conversion. The A500 offers an unprecedented level of resolution in the sound image. Proprietary phase-linear FIRTEC™ filters create a precise virtual stage in the panoramic image, setting it apart from other monitors in its class. The dedicated 3″ dome midtone driver brings exceptional detail and clarity to the placement of vocals in the mix.

Similar to the legendary ADM20, the A500 ensures that all frequencies reach the sound engineer’s ear simultaneously, without any delay. This tonal neutrality and timeliness make it suitable for use in all stages of professional production processes, whether it be recording, as a mixed monitor, or as a final reference in mastering.

The two 10″ high-performance bass drivers produce ample bass energy even in larger control rooms, while the patented 1″ compression driver delivers outstanding dynamics and resolution across a wide and deep sweet spot. The 80°x60° horn ensures a linear frequency response, effectively concealing any housing edges and resulting in a remarkably quiet sound.

The design of the amplifiers and power supplies guarantees loud reproduction with minimal distortion. Another notable feature is the converter-free connection of the 3 PWM power amplifiers, each with 250 W RMS power. This direct connection eliminates converter losses and ensures accurate resolution.

Whether digitally connected to the workstation via the analog input with a 24-bit / 192 KHz AD converter or losslessly connected to the workstation, the A500 seamlessly integrates into any studio setup.

The high and low shelves, conveniently accessible on the amp, allow for quick adjustments to the bass and treble, which can be further refined with the optional KSD RC Remote using additional (phase linear) filters, including 6 parametric EQs, delay, level control, and more.

When digitally connected, the KSD RC also provides an M/S listening matrix for separate monitoring of mid or side signals, as well as volume control.

KEY HIGHLIGHTS

Phase-Linear FIRTEC™ Sound Conversion

KSD’s proprietary FIRTEC™ filters ensure time-correct sound reproduction, meaning all frequencies reach your ears simultaneously for precise imaging, depth accuracy, and tonal neutrality.

Dual 10″ Low-Frequency Authority

Two high-performance 10″ bass drivers provide extended low-end power and control, delivering clean, authoritative bass even in larger control rooms.

Dedicated Midrange Precision

A true 3-way architecture with a dedicated 3″ dome midrange driver ensures exceptional vocal clarity, separation, and mid-band detail—critical for mix decisions.

Horn-Controlled High-Frequency Clarity

The 80°x60° horn-loaded compression driver produces wide, stable imaging and a deep sweet spot while maintaining smooth, linear high-frequency response.

Converter-Free Direct Digital Drive

Three PWM power amplifiers are directly connected without converter losses, preserving resolution and ensuring authentic program material reproduction.

Stereo & Immersive Workflow Integration

With advanced digital connectivity and optional remote control functions including M/S matrix monitoring, the A500 integrates seamlessly into modern studio workflows.
