Ex Machina Soundworks TERRA – Professional 3-Way Coaxial Active Reference Monitor (Single)

OVERVIEW

TERRA is the primary reference monitor from Ex Machina Soundworks, designed for engineers who demand accuracy. A three-way coaxial design delivers flat frequency response from 40Hz–30kHz (±1.5dB) with ±15° phase coherence and 90° x 90° conical coverage, maintaining stable imaging even off-axis. TERRA’s monocoque aluminum cabinet is engineered to be acoustically invisible – no resonance, no colouration, just your mix. Individual driver calibration and zero-phase digital crossovers ensure perfect time alignment across the entire spectrum. TERRA is complete on its own, with optional GRAVITY subwoofers available when deeper extension or higher SPL is required.

KEY HIGHLIGHTS

Who is it for?

Project studios upgrading from prosumer monitors. Commercial facilities needing professional accuracy without a $10K+ investment. Engineers in need of mixes that translate outside the studio and on the street.

Why is it Different?

Most monitors collapse off-axis, smear transients at crossover points, or let cabinet resonance colour the sound. Terra addresses these issues at the system level – phase-coherent crossovers, controlled dispersion, and a cabinet that simply doesn’t talk back. What you hear is your mix, nothing else.

Applications

• Stereo tracking, mixing and mastering
• Music production and critical listening
• Film and game audio nearfield monitoring
• Professional project and commercial studios
• Reference monitoring where translation is critical

Quick Points

• Professional accuracy at $5K, not $10K+.
• Wide sweet spot – imaging remains intact as you reach for a knob and move.
• Zero-phase crossovers mean clean transients and pinpoint imaging.
• The cabinet doesn’t ring or flex – just your mix.
• Terra is complete on its own. Gravity is for when you need more volume and bass.
• Same DSP and measurement approach as our previous line, now more accessible.
• Every unit is individually calibrated and updated over time.

Technical

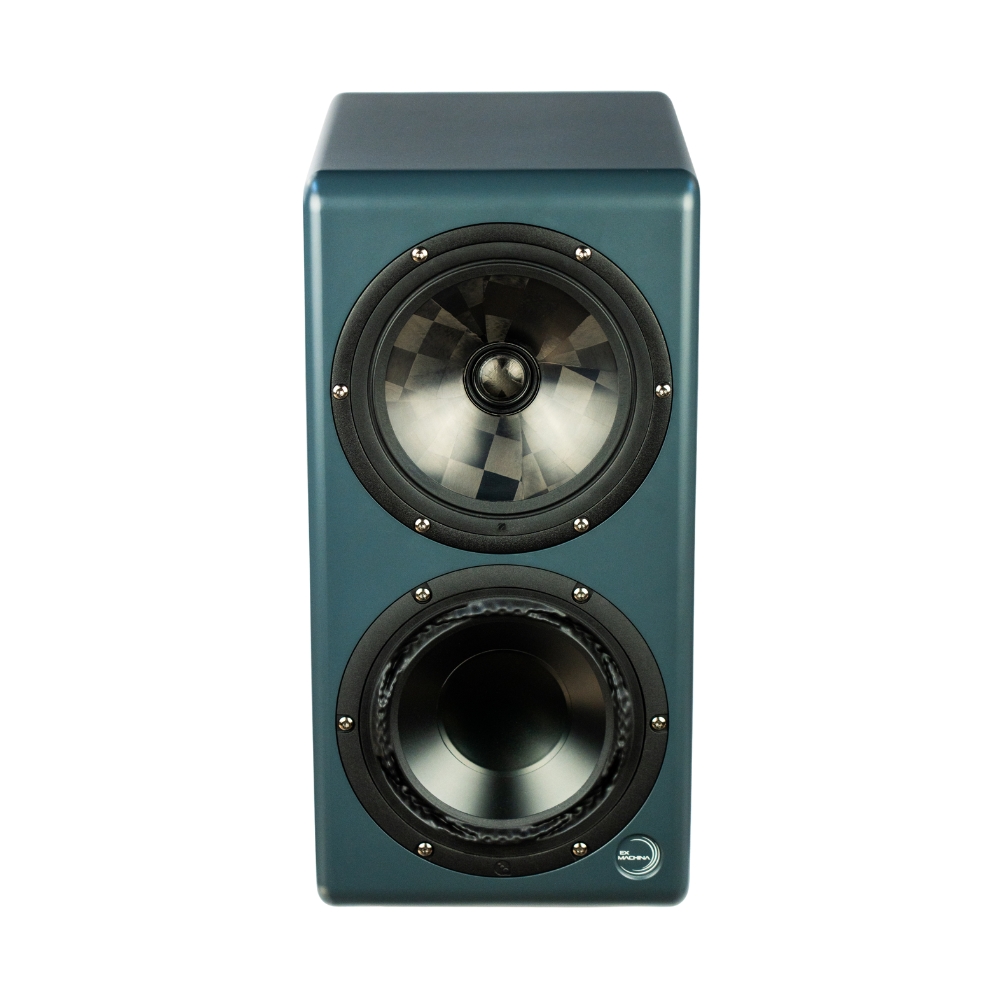

• Three-way design: 18cm coaxial mid/tweeter + 18cm PuriFi woofer
• Zero-phase LR4 digital crossovers at 200Hz and 2kHz
• Integrated Hypex NcoreX amplification
• ADSP-21569 SHARC+ DSP with ESP32 co-processor
• Pure monitoring DSP – linearises the speaker, not the room

FEATURES

• 3-way coaxial architecture with true point-source imaging
• ±1.5dB frequency response from 40Hz–30kHz (F6 at 30Hz)
• ±15° phase coherence across the entire passband
• 90° x 90° conical coverage for a wide, stable sweet spot
• Zero-phase LR4 digital crossovers eliminate time-domain smearing
• Monocoque aluminum cabinet engineered to be acoustically inert
• Individual driver-level measurement and calibration
• Pure monitoring DSP that linearises the speaker – not room correction voicing
• Over-the-air firmware and calibration updates via WiFi

SYSTEM INTEGRATION & CALIBRATION

Each TERRA monitor is individually measured and calibrated at the driver level before shipping. Zero-phase digital crossovers ensure perfect time alignment across all drivers, preserving transient accuracy and imaging precision. TERRA uses pure monitoring DSP to linearise the loudspeaker itself – not to compensate for the room. Over-the-air firmware and calibration updates allow TERRA’s performance to improve over time as Ex Machina’s measurement models and algorithms advance.

TECHNICAL SPECS

Monitor Configuration: 3-way coaxial active reference monitor

Frequency Response: ±1.5dB 40Hz–30kHz (F6 at 30Hz)

Phase Response: ±15° 30Hz–30kHz

Max SPL @ 1m: 108dB @ 1kHz, 100dB @ 50Hz

Drivers: 18cm coaxial + 18cm PuriFi woofer

Coverage: 90° x 90° conical

Crossovers: 200Hz, 2kHz zero-phase LR4 digital

Amplification: Integrated Hypex NcoreX

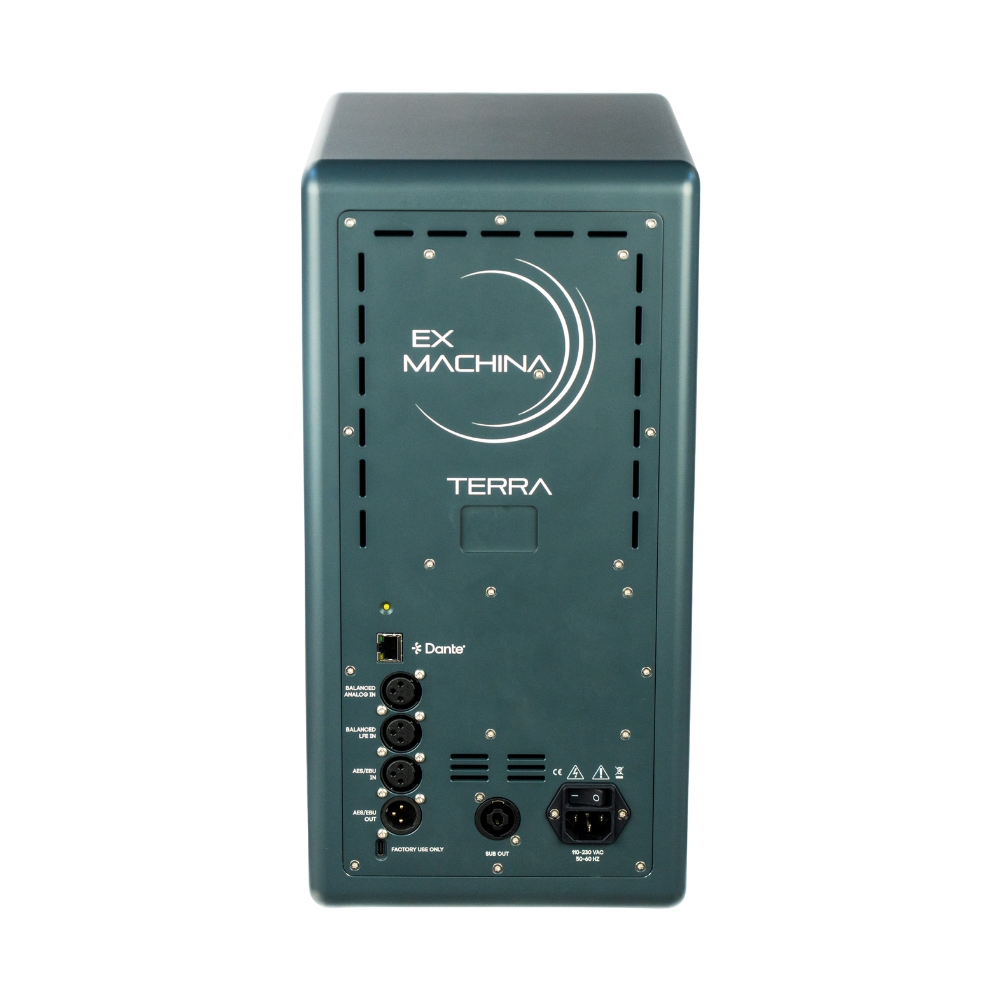

Connectivity: XLR, AES/EBU, optional Dante Pro S1

Dimensions: 406 × 280 × 203mm

Weight: 21.8kg (48 lbs) per monitor

Warranty: 6 years

Support & Updates:

• Individual Driver-Level Calibration
• Over-the-Air Firmware and Calibration Updates
