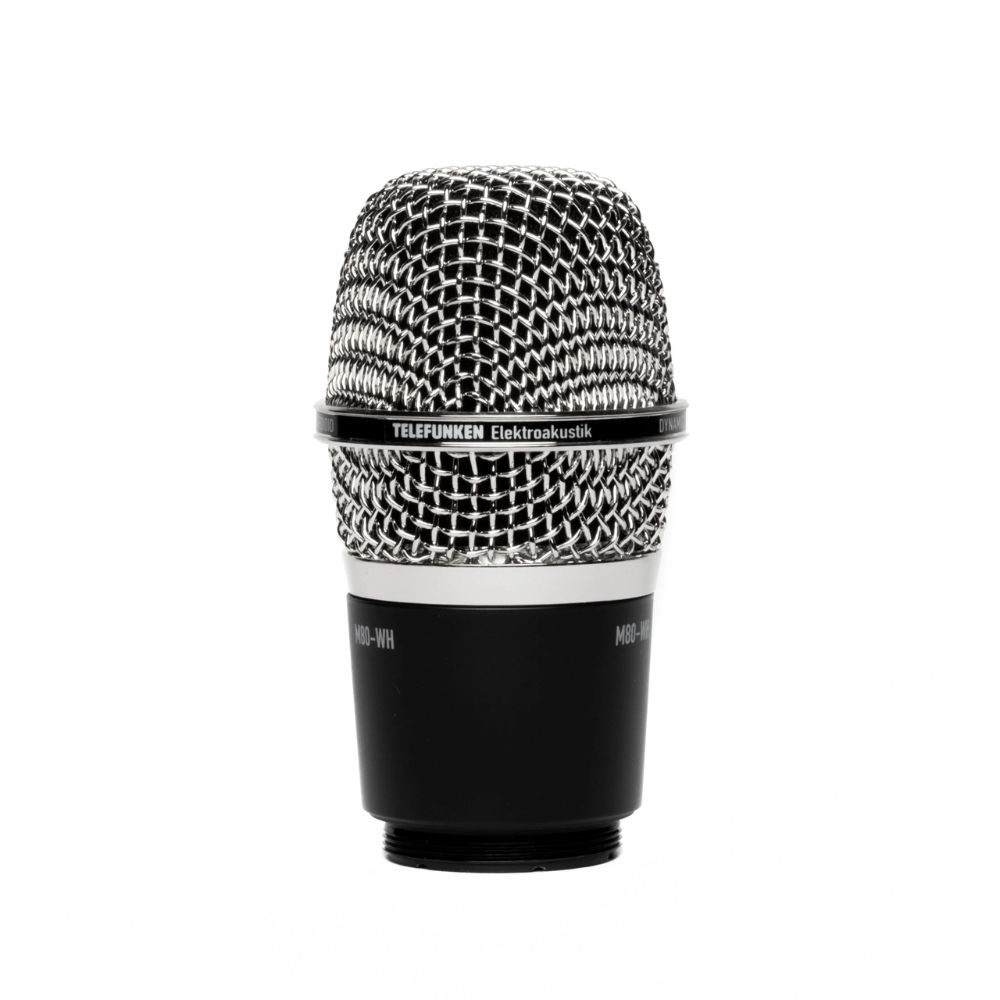

Telefunken M80-WH Wireless Mic Capsule – Chrome

OVERVIEW

The M80-WH brings the M80’s condenser-like performance, minimal proximity effect, and superior feedback rejection to the Shure® wireless transmitter platform. Featuring the same low mass diaphragm and custom wound output transformer as the handheld M80 Standard and low-profile M80-SH, the M80-WH provides the impressive sound quality and reliability one expects from a Telefunken Dynamic Series microphone. This product is intelligently designed to minimize handling noise and seamlessly mate to your wireless system of choice.

FEATURES

• Same detailed, condenser-like performance as the wired M80
• Prestine audio quality with a wide frequency response and high SPL handling
• Supercardioid polar pattern provides excellent feedback rejection
• Low mass diaphragm reduces proximity effect
• Custom-wound impedance-matching audio transformer
• Mates with many industry-standard wireless transmitters
• Designed and hand assembled in the USA

TECHNICAL SPECS

Type: Dynamic

Polar Pattern: Supercardioid

Frequency Range: 50 Hz – 18 kHz, ±3 dB

Capsule: 25mm Dynamic Moving Coil

Transformer: TELEFUNKEN Elektroakustik T80

Sensitivity: 1.54 mV/Pa, ±1 dB

Output Impedance: 325 Ω

Maximum SPL (for 1% THD): 135 dB

Dimensions/Size: 90 mm L x 48 mm Dia

Weight: 165 g
