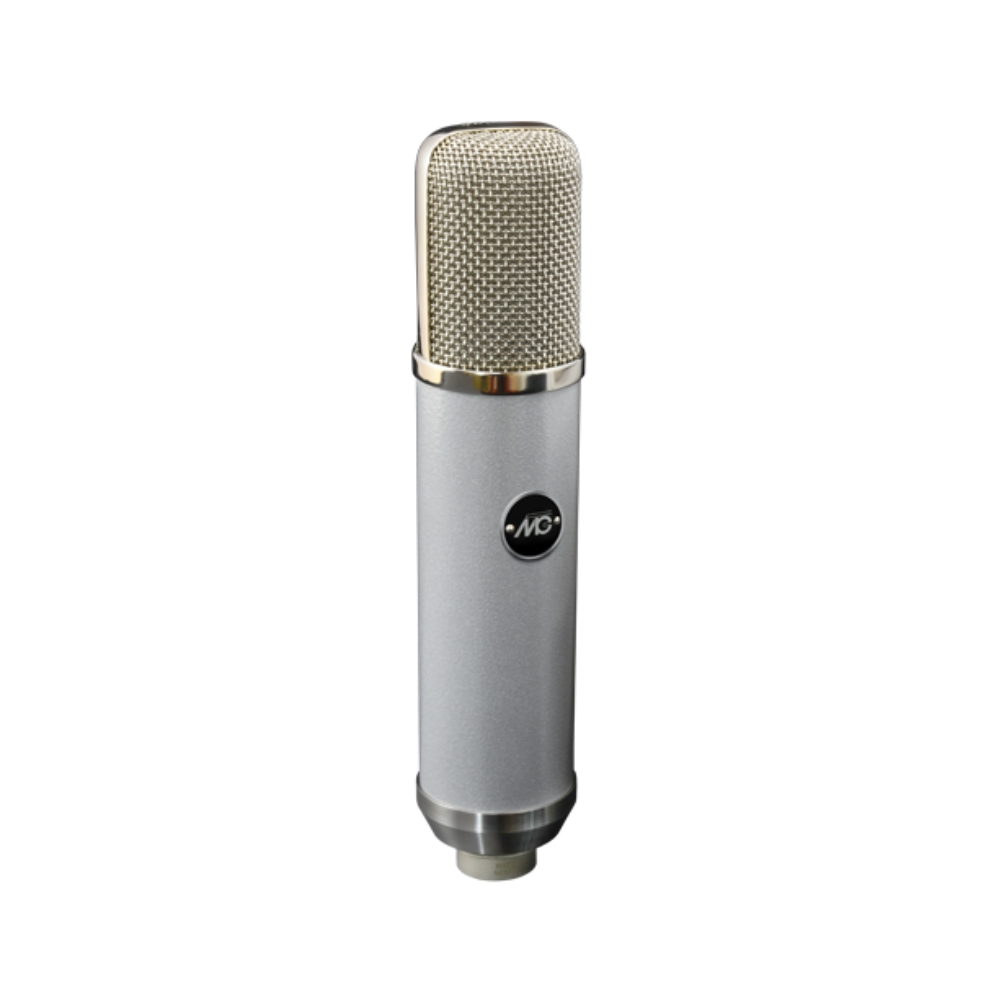

Microtech Gefell UM 57 – Vintage Studio Condenser Microphone w/ Original M7 Capsule

OVERVIEW

The Microtech Gefell UM 57 stands as a true icon in the world of professional audio, faithfully reissued with its original M7 capsule design to preserve the unmistakable sonic signature that shaped countless classic recordings. At its core lies a large-diaphragm capsule with hand-crafted, gold-plated PVC diaphragms, delivering a smooth, natural response with exceptional detail and warmth. This is the sound of heritage – rich in character, yet precise enough for modern production demands.

Driven by a carefully selected EF86 vacuum tube configured as a triode, the UM 57 offers a harmonically rich and musical response that solid-state microphones simply cannot replicate. The included UN 57 power supply not only delivers stable operating voltages but also enables remote switching between omnidirectional, cardioid, and figure-eight polar patterns, giving engineers full control over spatial capture and tonal balance.

Finished with a distinctive hammered patina, the UM 57 embodies both visual and sonic craftsmanship. Supplied as a complete system – including power supply, connection cable, elastic suspension, and protective suitcase – this microphone is a premium solution for studios seeking vintage authenticity with uncompromising build quality and performance.

KEY HIGHLIGHTS

Legendary M7 Capsule Sound

At the heart of the UM 57 is the original M7 large-diaphragm capsule, known for its smooth frequency response and musical warmth. Its gold-plated PVC diaphragm captures sound with depth and character that has defined generations of recordings.

True Tube Character

Equipped with an EF86 vacuum tube, the UM 57 delivers rich harmonic detail and a natural compression that enhances vocals and instruments with a timeless analog feel.

Three Selectable Polar Patterns

Switch effortlessly between omnidirectional, cardioid, and figure-eight patterns via the external power supply, allowing precise control over room ambience and source focus.

Complete Premium System

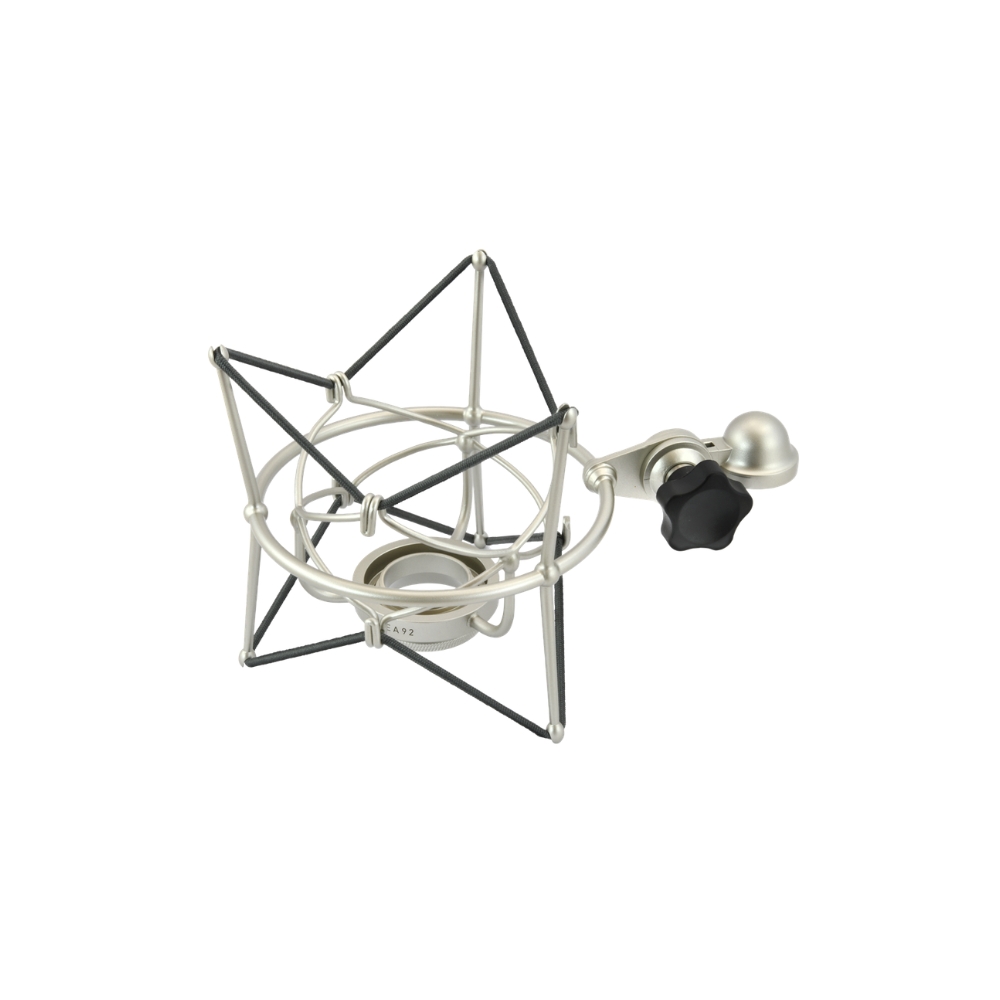

The UM 57 comes as a full studio package, including the UN 57 power supply, connection cable, EA 92 elastic suspension, and a protective suitcase – ready for professional use.

Iconic Vintage Reissue

This is not just inspired by the original – it is the original design, reissued with meticulous attention to detail, preserving the authentic sound that shaped an era.

FEATURES

• Large-diaphragm condenser microphone design
• Original M7 capsule for classic tonal character
• Gold-plated PVC diaphragm for smooth, detailed response
• Selectable polar patterns: omni, cardioid, figure-of-8
• Vacuum tube circuitry for rich harmonic warmth
• EF86 tube selected for musical sonic performance
• External power supply with remote pattern switching
• Versatile for vocals, instruments, and studio applications
• Premium build quality with vintage-inspired finish
• Includes elastic suspension shock mount for isolation
• Complete system with cable and dedicated power supply
• Supplied in a protective suitcase for transport and storage

TECHNICAL SPECS

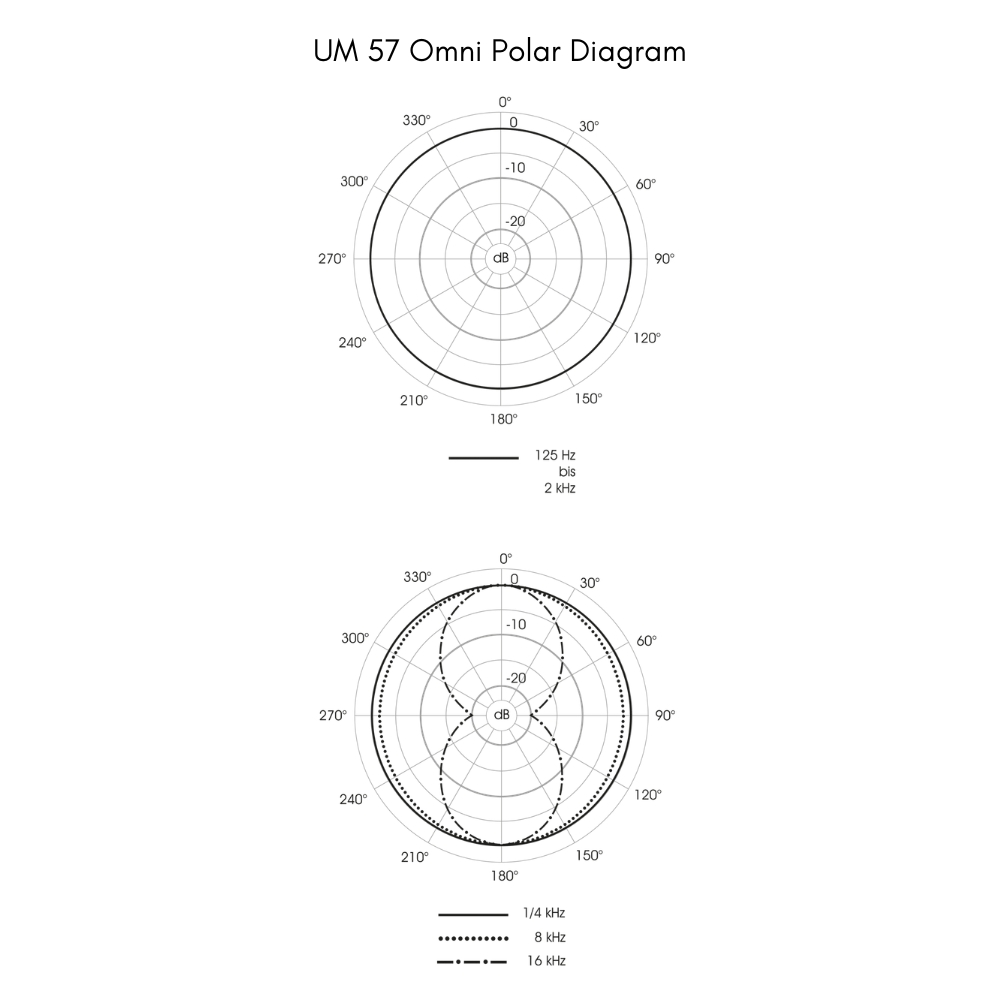

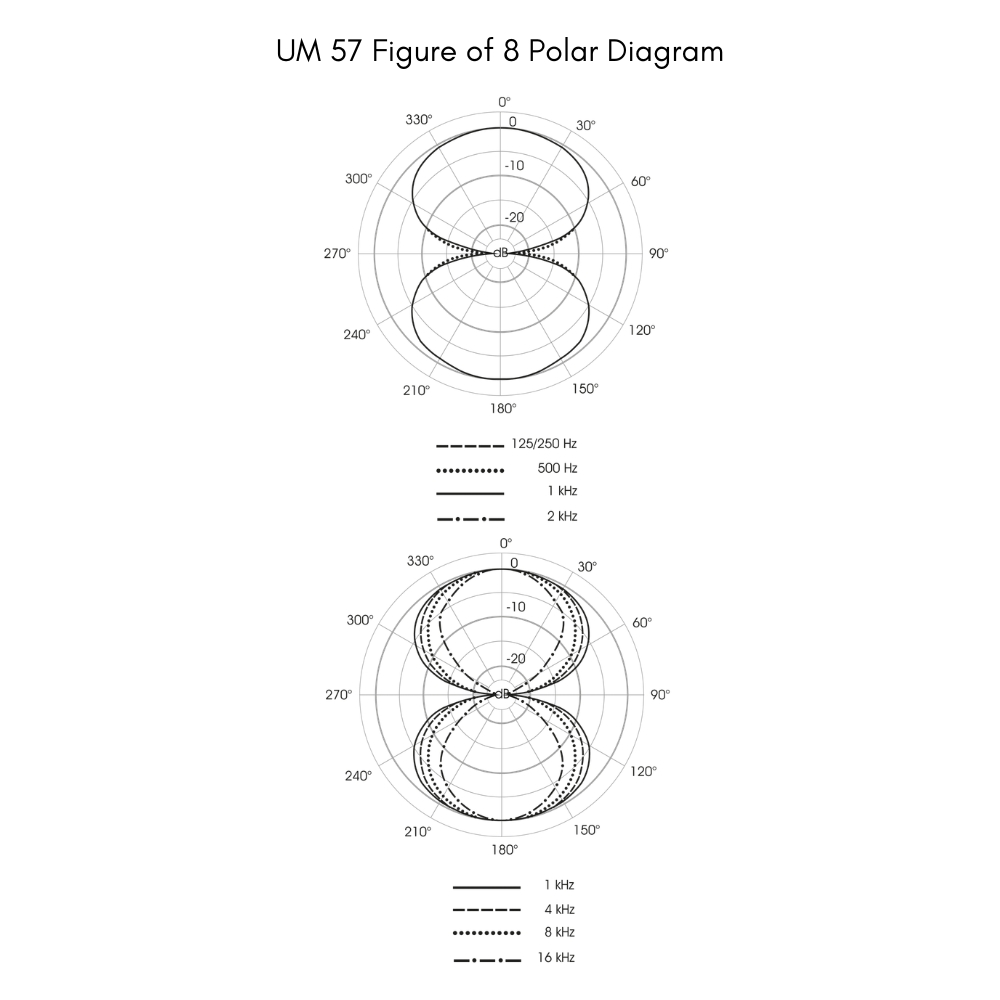

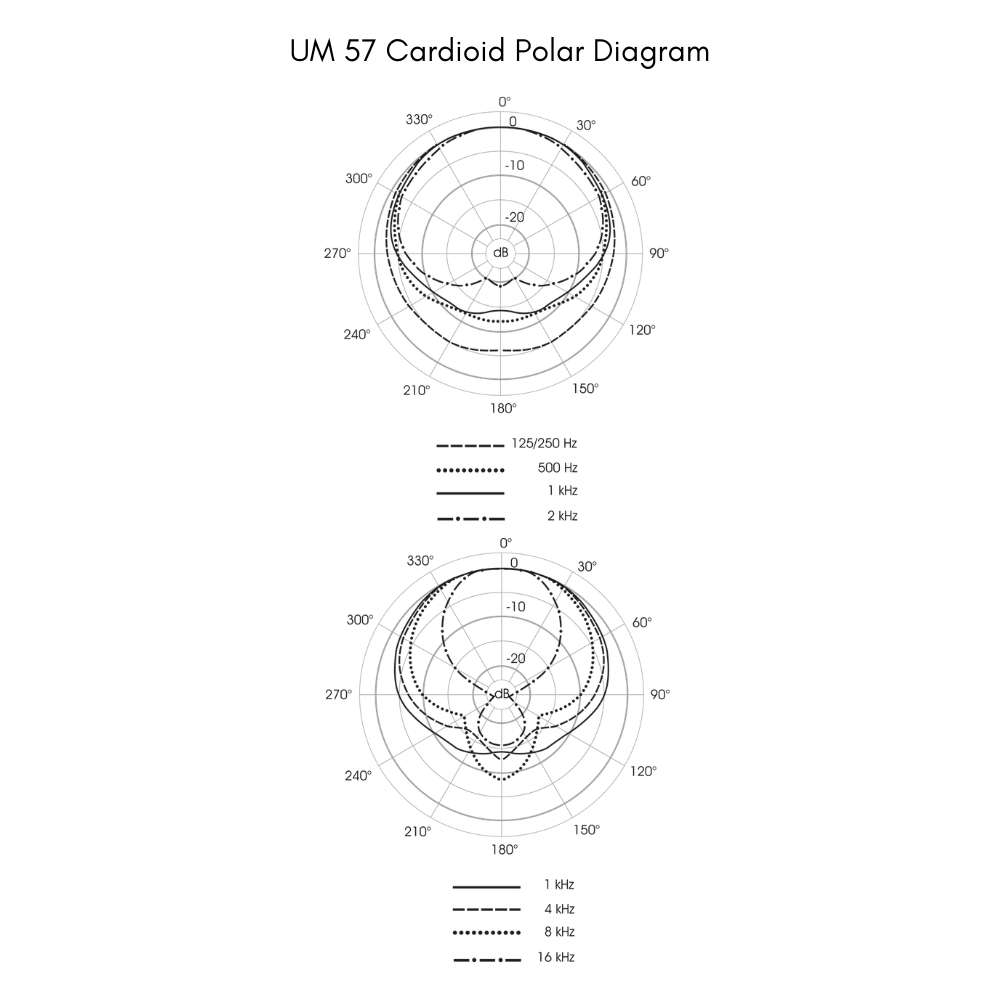

Polar Pattern		Omni, Cardioid, Figure of 8
Acoustic Operating Principle		Pressure Gradient Transducer

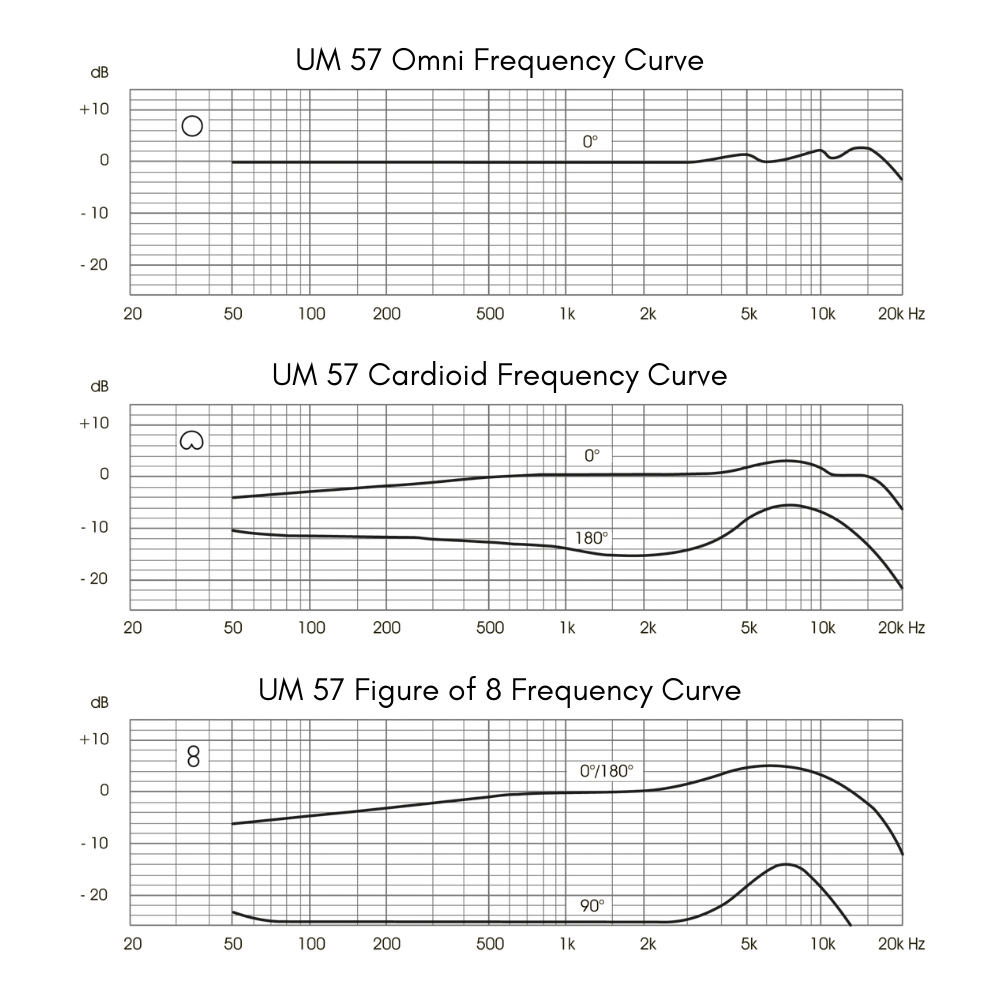

Frequency Range		20 Hz to 20,000 Hz
Sensitivity at 1 kHz		17 mV/Pa
Output Impedance		200 Ohm
Noise Level	DIN EN 60268-4	16 dB(A)
	CCIR 468-4	24 dB
Signal-to-Noise Ratio	A-Weighted	78 dB
	CCIR Weighted	70 dB
SPL for THD 0.5 %		120 dB
Dynamic Range		104 dB
DC Power Supply		120 V –
Anode Current		1 mA –
Heater Voltage		5,8 V –
Heater Current		200 mA –
Tube (Low-Noise)		EF 86
Output Connector:	Microphone	7-pin
	Power Supply	XLR3M
Length: Diameter:		197 mm 42 mm
Weight:		430 g

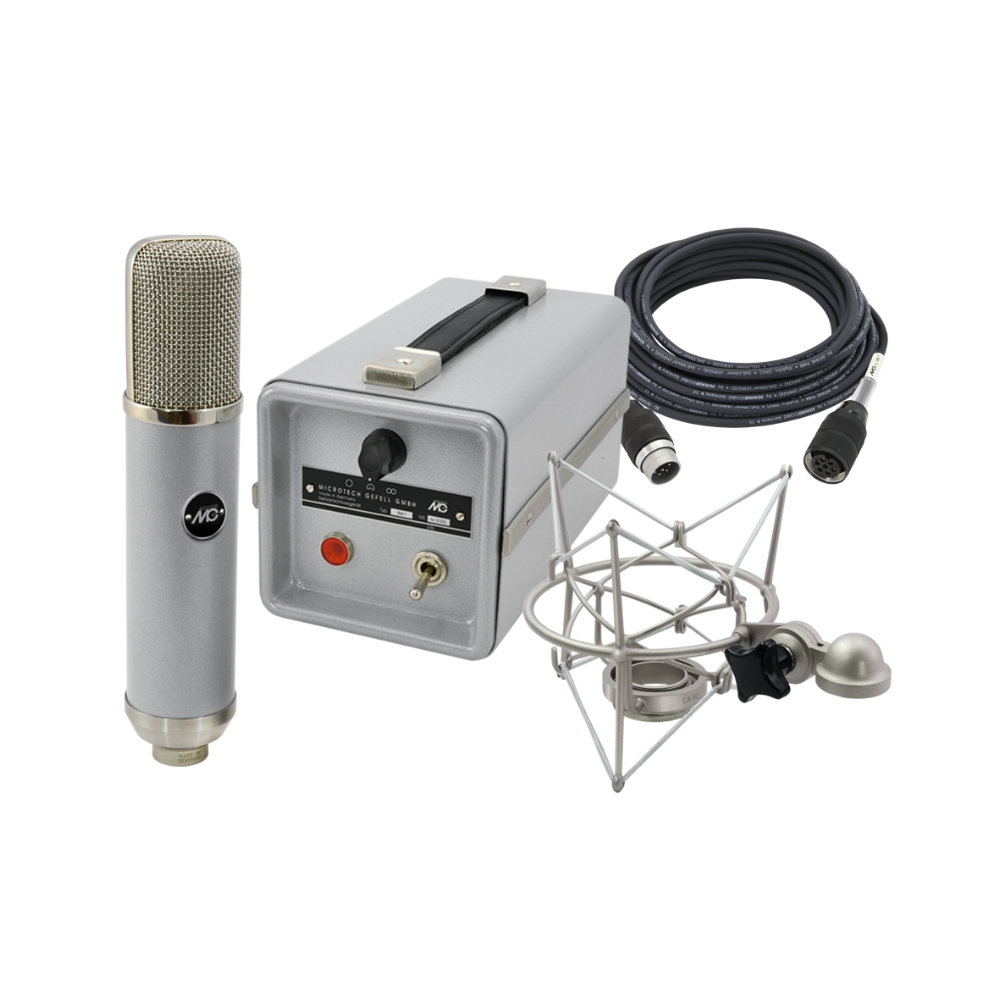

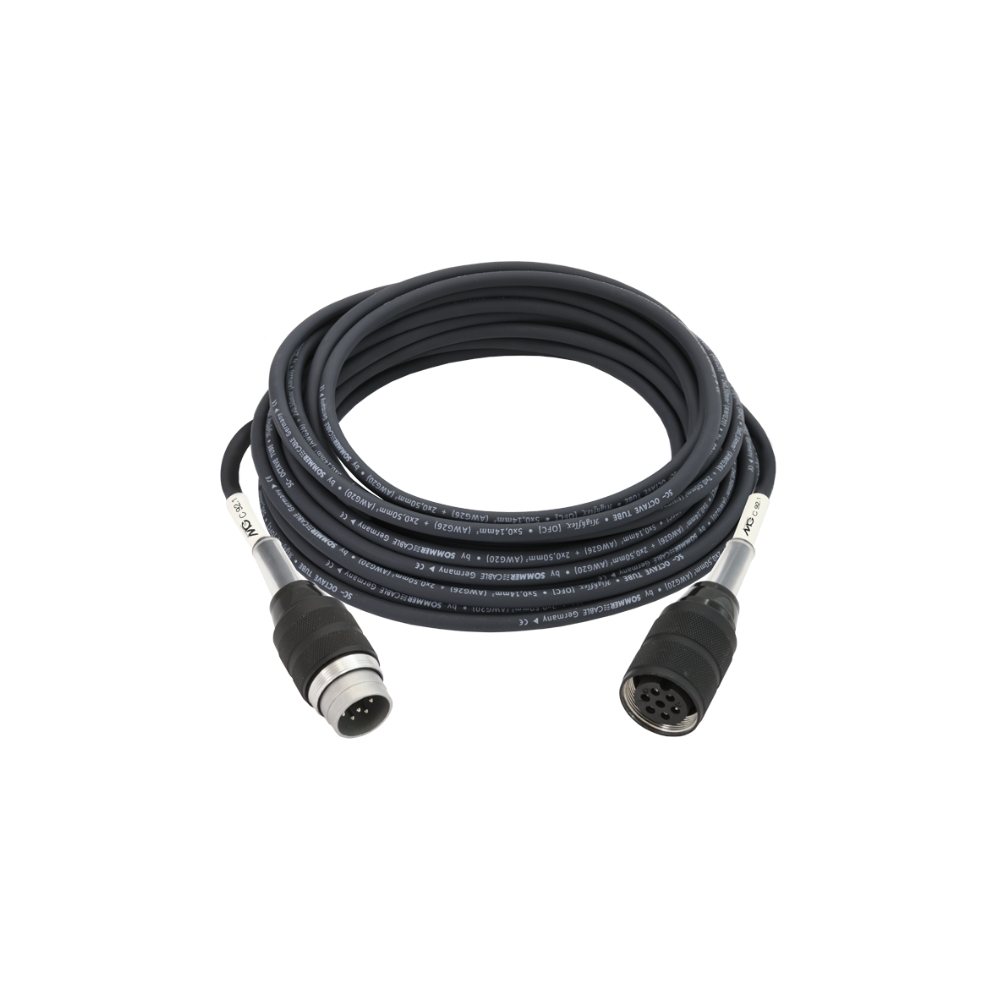

Contents:		1 x UM 57 Vintage Studio Microphone 1 x UN 57 Power Supply 1 x C Tube Connection Cable 1 x EA 92 Elastic Suspension Shockmount 1 x Travelling Suitcase
