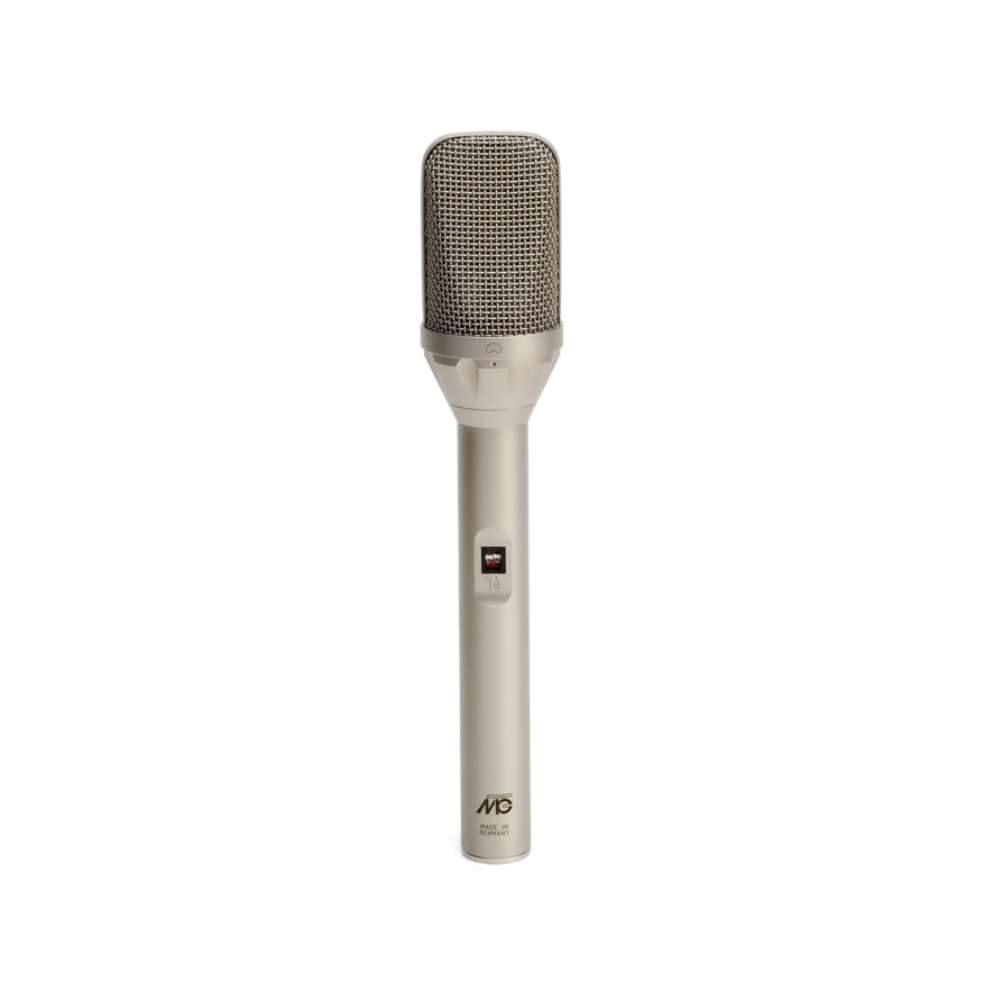

Microtech Gefell MT 71 S – Large-Diaphragm Cardioid Condenser Studio Microphone

OVERVIEW

The Microtech Gefell MT 71 S encapsulates nearly a century of German mic-making heritage in a single, reliable package. Its large dual-diaphragm M7 capsule – featuring two gold-plated PVC membranes on a brass backplate – ensures exceptional clarity and a smooth presence boost around 7 kHz, making it ideal for vocal and instrumental detail.

Thanks to its transformerless, symmetrical output stage, the MT 71 S offers superb transient response, high RFI rejection, and extended dynamic range while minimizing self-noise. Additional features include a switchable -10 dB pad for handling loud sources and a bass roll-off at 90 Hz to tame proximity effect. Built for precision and reliability, it’s perfect for broadcast, studio, and field recording environments.

KEY HIGHLIGHTS

Iconic M7 Large-Diaphragm Capsule:

Dual gold-plated diaphragms deliver crystal-clear presence and rich audio character.

Transformerless Design:

Clean, colorless signal with excellent transient response and low self-noise.

Built-in Pad & Bass Roll-Off:

Includes a -10 dB pad and 90 Hz roll-off switch for flexible use with loud sources or proximity-heavy recording.

Professional Clarity & Range:

Wide dynamic range (up to ~120 dB), low noise (14 dB-A), and high SPL handling (134–144 dB).

Broadcast-Grade Build Quality:

Engineered for clean reproduction of solo vocals and instruments in broadcast and studio settings.

Frequency Curves

Polar Diagrams

FEATURES

• Large-diaphragm M7 capsule with dual PVC diaphragms

• Transformerless symmetrical output stage

• Fixed cardioid polar pattern

• Switchable -10 dB pad

• Bass roll-off at 90 Hz (-10 dB)

• Phantom-powered via XLR (48 V)

• Side-address pressure-gradient condenser

• Satin nickel (or black matte) finish

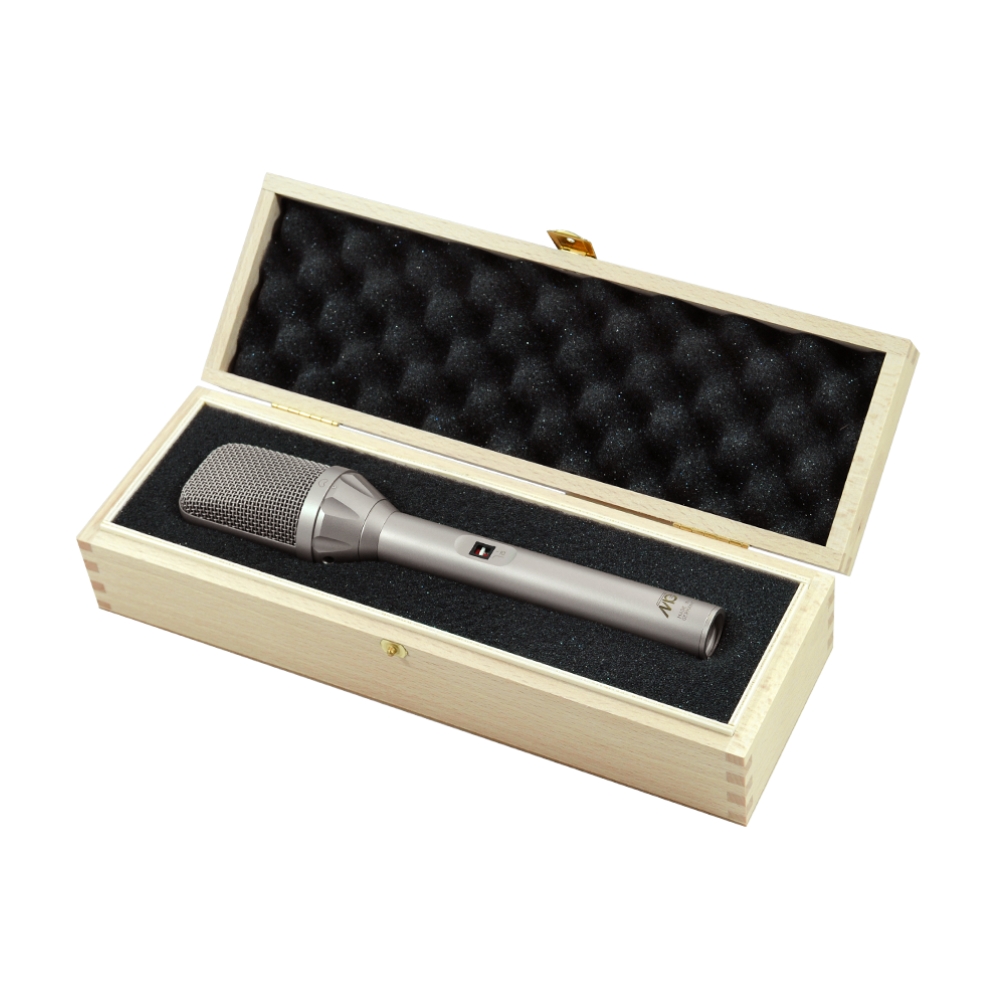

• Deluxe wooden presentation case included

TECHNICAL SPECS

Polar Pattern: Cardioid (fixed)

Acoustic Principle: Pressure-gradient transducer (dual-diaphragm)

Frequency Range: ~20 Hz to 20 kHz

Sensitivity (1 kHz): ~13 mV/Pa ±3 dB

Pad: -10 dB switch

Bass Roll-off: -10 dB at 90 Hz

Impedance: 150 Ω

Noise Level: 14 dB-A (DIN), 22 dB (CCIR)

SNR: ~80 dB A-weighted

Max SPL @ 0.5% THD: 134 dB (144 dB with pad)

Dynamic Range: ~120 dB

Current Consumption: ~3 mA at 48 V

Connector: Gold-plated XLR3M

Dimensions: 217 mm length, ø42/21 mm

Weight: ~285 g

Finish Options: Satin nickel

Includes: Wooden case

Optional Accessories: Shock mount, pop screen, etc.
