KERWAX K-24F – Large Diaphragm FET Condenser Microphone

OVERVIEW

The KERWAX K-24F is a boutique large diaphragm FET condenser microphone designed for engineers and producers who demand clarity and authenticity in their recordings. Drawing inspiration from the legendary Schoeps CMC series circuits, it has been adapted for a large 34 mm CK12-style capsule to capture the perfect balance of detail, transparency, and tonal warmth.

Ideal for vocals and acoustic instruments, the K-24F delivers a smooth, never overly sibilant response, while its ability to handle sound pressure levels up to 140 dB makes it versatile enough for louder sources as well. With its transformerless design, cardioid polar pattern, and handcrafted French build quality, the K-24F brings studio-grade performance and refined character to every session.

KEY HIGHLIGHTS

Transparent, Detailed Sound:

Captures vocals and instruments with exceptional clarity, depth, and natural tone.

Inspired Circuitry, Modern Design:

Based on Schoeps CMC series circuits, adapted for large capsules with a CK12-style diaphragm.

Versatile Performance:

Excels on vocals, acoustic instruments, and high-SPL sources like drums or amps.

Smooth & Controlled Response:

Rich tonal balance without harsh sibilance, even in demanding sessions.

Handcrafted in France:

Built with precision and care using premium, locally sourced components.

FEATURES

• Large Diaphragm FET Condenser: Delivers transparent, natural sound
• 34 mm CK12 Capsule Type: Inspired by vintage capsule designs for richness and detail

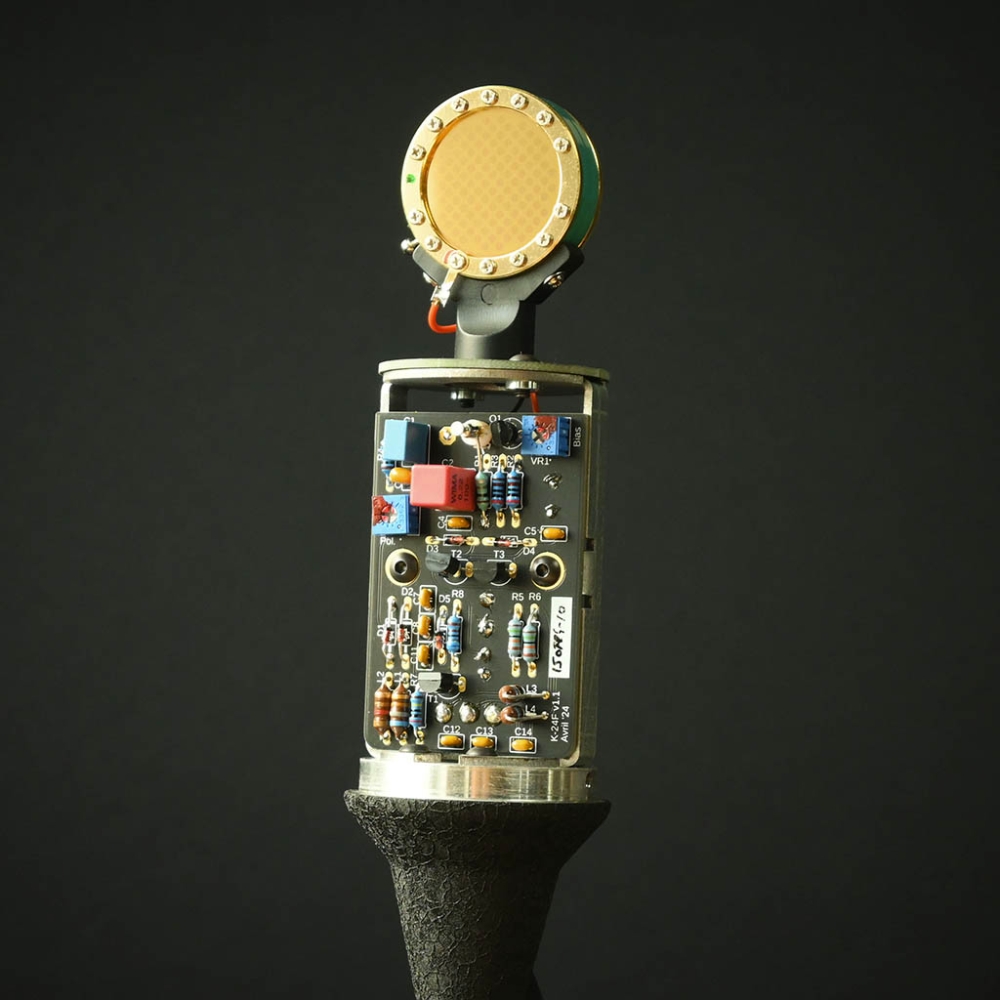

• Schoeps-Inspired Circuitry: Adapted for large diaphragm performance
• Cardioid Polar Pattern: Focused pickup with excellent room rejection
• Handles High SPLs: Up to 140 dB for versatile studio applications
• Transformerless Design: Ensures clean, accurate signal reproduction
• Smooth Vocal Capture: Clear and detailed without excessive sibilance
• Handcrafted Build: Vermiculated black painted body, designed and made in France

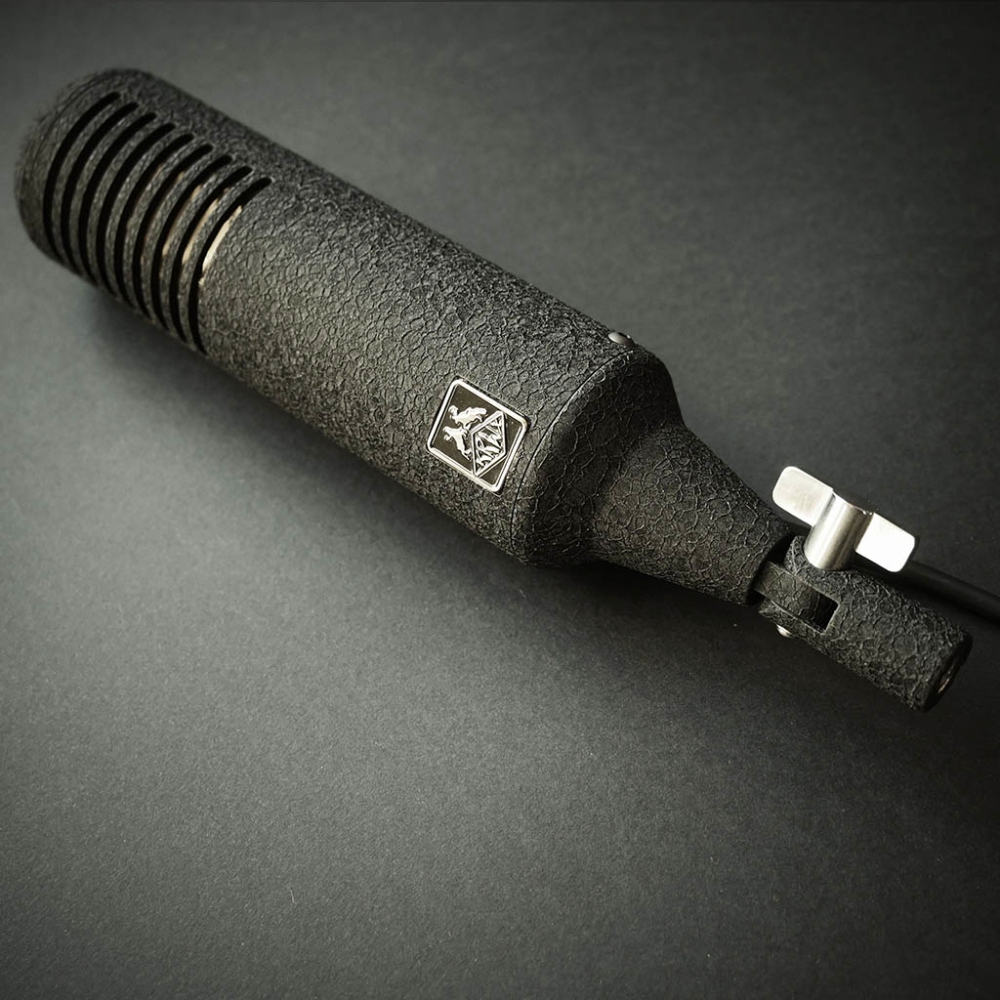

• Swivelmount with Adapter: Easy positioning and compatibility with mic stands

TECHNICAL SPECS

Acoustic Principle: Large diaphragm FET condenser

Circuit Design: Transformerless, inspired by Schoeps CMC series

Capsule: 34 mm CK12 capsule type

Polar Pattern: Cardioid

Frequency Response: 20 Hz – 20 kHz

Sensitivity: 15 mV/Pa

Output Impedance: 200 Ohms

Maximum SPL: 140 dB

Power Requirement: 48 V phantom power

Output Connector: Male XLR 3 pin (Pin 2 Hot)

Finish: Vermiculated black painted body

Mounting: Swivelmount with 3/8” to 5/8” adapter

Weight: 800 g

Packaging: Cardboard box
