Tonelux Dynalux – High-Performance Dual-Channel Analog Rackmount Compressor

OVERVIEW

The Tonelux Dynalux redefines analog compression with its powerful blend of innovation and musicality. Developed by Paul Wolff and the Tonelux engineering team, this dual-channel rackmount compressor combines precision dynamics control with the brand’s signature warmth and detail. Its all-discrete design features Tonelux TX-240 op-amps, TX-260 output stages, and TX-100 transformers, delivering the unmistakable clarity, punch, and depth that define the Tonelux sound.

The Dynalux’s TYPE control allows engineers to fade between classic feedback and modern feed-forward compression styles – offering the perfect balance between smooth and aggressive dynamics. Its built-in Wet/Dry MIX knob makes true in-module parallel compression effortless, eliminating latency and phase issues associated with DAW-based workflows.

Tonelux’s proprietary Tilt™ and IPN (Inverse Pink Noise) filters in the sidechain EQ help reduce pumping while maintaining spectral balance, allowing the detector to “hear” like the human ear. Combined with the Auto Makeup Gain, ultra-fast X5 attack switch, and intelligent multi-stage release circuit, the Dynalux delivers unmatched control, flexibility, and sonic excellence. Whether used in dual mono or stereo link mode, this unit brings world-class compression and tone shaping to every session.

KEY HIGHLIGHTS

Signature Tonelux Sound:

Built around proprietary TX-240 op-amps, TX-260 output stages, and TX-100 transformers, the Dynalux delivers the rich, open, and detailed tone that defines Tonelux.

Hybrid Compression Engine:

The unique TYPE control allows smooth blending between feedback and feed-forward compression – from vintage warmth to modern precision.

True Parallel Compression:

A dedicated Wet/Dry MIX knob enables instant in-module parallel compression for pristine, latency-free blending of dry and compressed signals.

Intelligent Side-Chain EQ:

Tonelux’s Tilt™ and IPN filters shape the sidechain response, controlling low-end pumping while adding top-end clarity.

From Subtle to Extreme:

Variable ratios from 1.5:1 to 20:1 – plus the unique “OVER:” setting – allow everything from light glue to heavy transient shaping.

Dynamic Flexibility:

Ultra-fast attack with the X5 switch and three-stage auto release ensure natural, musical compression on any source.

Dual Mono or Stereo Link Operation:

Use the Dynalux as two independent channels or link them with adjustable VARILINK control for perfectly matched stereo compression.

Comprehensive Metering:

Four VU meters display input, output, and gain reduction levels, providing clear visual feedback in any workflow.

FEATURES

• Signature Tonelux Sound – Proprietary Tonelux TX-240 op-amp, TX-260 output, and TX-100 transformer for rich, detailed tone.
• Hybrid Compression Styles – TYPE control blends feedback warmth with feed-forward precision.
• Parallel Power – Built-in Wet/Dry MIX knob for instant in-module parallel compression.
• Smart Side-Chain EQ – Tonelux Tilt™ filter keeps bass tight and highs open. An IPN filter to have the detector “hear” like a human ear.
• From Gentle to Extreme – Ratios from 1.5:1 to 20:1, plus “Over” mode for explosive transient shaping.
• Dial In Your Dynamics – Ultra-fast to slow attack/release options with automatic makeup gain.
• Stereo Linkable – Linkable for 2-channel use with adjustable link control.
• Extensive Metering – 4 VU meters onboard for monitoring gain reduction, and selectable input or output levels.

TECHNICAL SPECS

Two separate channels of compression housed in a 2U Rack unit.

Completely discreet design with special Tonelux op amps.

Transformer Output – Not in BYPASS mode.

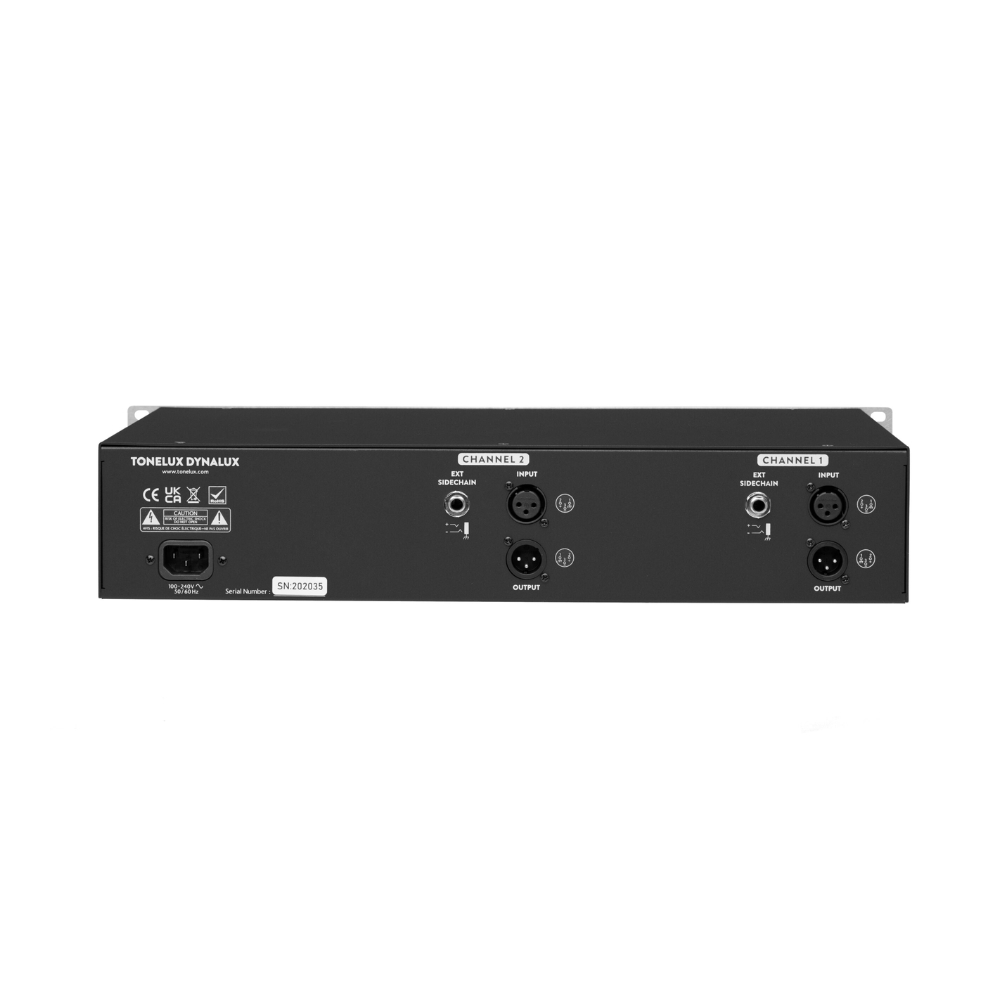

External Sidechain inputs for each channel.

Sidechain TILT and IPN Filters.

Variable Threshold from -20VU to +20VU.

Variable Ratio levels from 1.5:1 to 20:1 to Over Compress with Autogain selectable.

Variable Attack and Release.

Transition of feed-forward and feed-back compression.

Wet/Dry Mix Control and Gain Make-Up control for Parallel Compression.

Dual Mono – Stereo Mode Compression

Variable Link (VARILINK) compression control between Channel 1 and 2.

Dual Analog VU Meters per channel – Input/Output (Selectable) and Gain Reduction.

Bypass switch – allows Input to Output direct connection, default on power outage.

Quiescent Noise <-95dBu (Dynamics OUT and not Bypassed)

Self -Noise in compression <-92dBu (Dynamics IN and not Bypassed)

Frequency Response @-3dBu: <5 Hz to 70 KHz.

DOWLOADS

User Manual
