Neve® StarNet ADA24 – Mastering-Grade 24×24 Dante™ Analogue AD/DA Converter

OVERVIEW

The Neve® StarNet ADA24 sets a new benchmark for Dante™-based analogue conversion, combining mastering-grade audio quality with rock-solid reliability for professional studios and mission-critical facilities. Developed through extensive blind listening tests and iterative circuit refinement, the ADA24 delivers ultra-transparent 32-bit, 192 kHz conversion with outstanding dynamic range – preserving every detail, transient, and nuance of the original signal without colouration.

Equipped with 24 balanced analogue inputs and 24 balanced analogue outputs on industry-standard DB25 connectors, the ADA24 integrates effortlessly with patchbays, large-format consoles, summing mixers, and outboard gear. Its analogue output stages are derived from Neve’s flagship 88RS console, providing wide bandwidth, low noise, and the ability to drive long cable runs with complete confidence. Selectable analogue headroom at +18, +24, or +26 dBu ensures seamless alignment with both modern and vintage analogue systems.

Built for demanding production environments, the ADA24 features precision low-jitter clocking, word clock I/O, and fully redundant Dante networking for uninterrupted audio delivery. A clear front-panel OLED display, comprehensive metering, and remote output control via the Neve ADA24 Remote App provide intuitive monitoring and system management. Whether deployed in a studio control room, broadcast facility, live sound rack, or distributed audio network, the StarNet ADA24 delivers uncompromised performance and long-term reliability.

KEY HIGHLIGHTS

Mastering-Grade Conversion for Dante™ Workflows

The StarNet ADA24 delivers exceptional sonic accuracy with 32-bit integer resolution and support for sample rates up to 192 kHz. Its high-performance converters achieve up to 119 dBFS dynamic range (ADC) and 122 dBFS (DAC), ensuring detailed, uncoloured conversion across every channel.

Selectable analogue headroom at +18, +24, or +26 dBu allows optimal alignment with any professional system, from modern converters to classic analogue consoles, ensuring the ADA24 integrates cleanly into a wide variety of operating environments.

Professional Analogue I/O with 88R-Derived Output Stages

Featuring 24 balanced analogue inputs and 24 balanced analogue outputs via industry-standard DB25 connectors, the ADA24 is designed for effortless connection to patchbays, summing mixers, large-format consoles, and outboard equipment.

The analogue output path uses the same balanced line-amplification technology found in Neve’s flagship 88RS console, offering:

• Analogue bandwidth in excess of 100 kHz
• Ability to drive long cable runs without degradation
• Exceptional common-mode rejection and low noise

This ensures pristine analogue performance whether installed in a control room, machine room, or remote rack.

Precision Clocking & Low-Jitter Performance

A low-drift crystal oscillator and precision PLL deliver stable, low-jitter clocking essential for critical recording and broadcast applications. The ADA24 can operate as a reliable system master clock, with 75Ω BNC word clock input and output enabling synchronisation across complex studio or facility-wide setups.

Combined with DAC jitter-elimination technology, the ADA24 ensures conversion accuracy and long-term clock stability under demanding conditions.

Redundant Dante Networking for Mission-Critical Systems

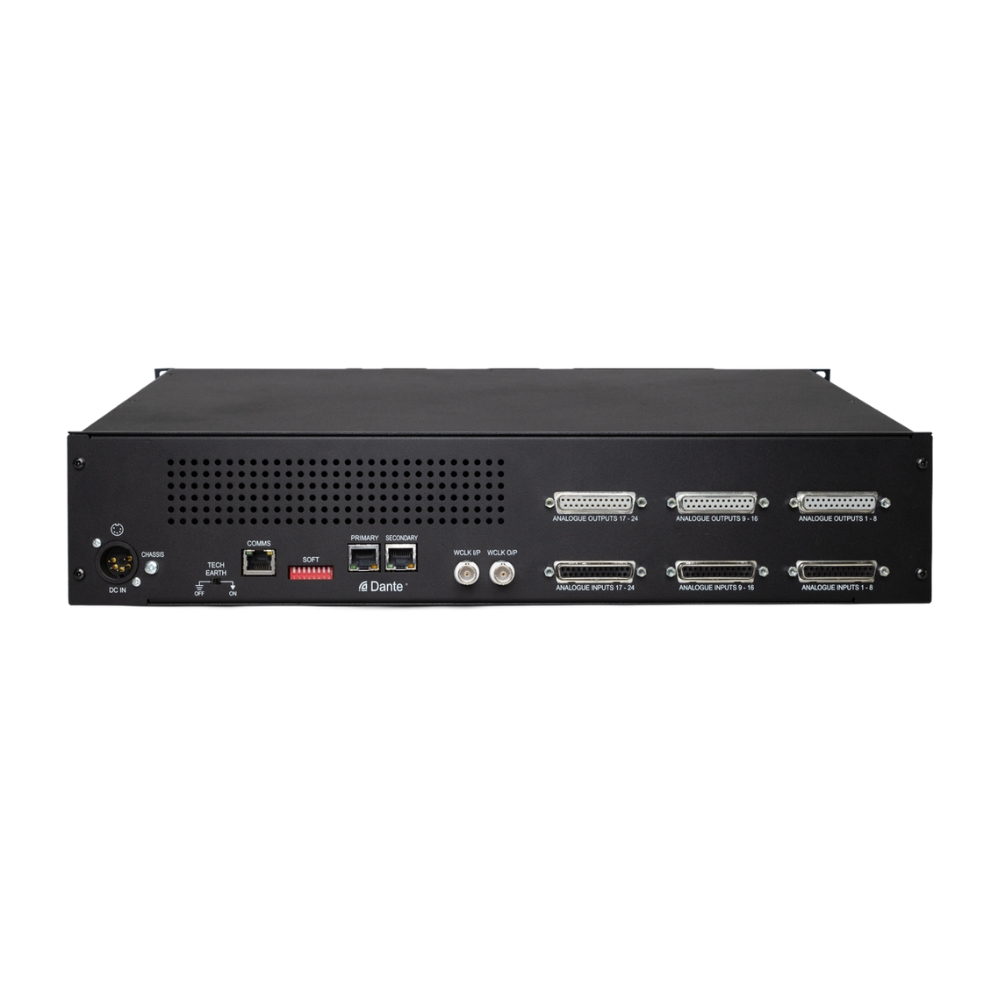

Dual rear-panel Dante Ethernet ports provide:

• Primary & Secondary redundancy for uninterrupted operation
• Switched-mode daisy-chaining for multi-unit networks
• Smooth integration into complex distributed audio systems

In broadcast, live, and large-scale installations, redundancy ensures continuous audio delivery even in the event of a network fault, essential for mission-critical environments.

Clear Monitoring, Control & Remote Output Management

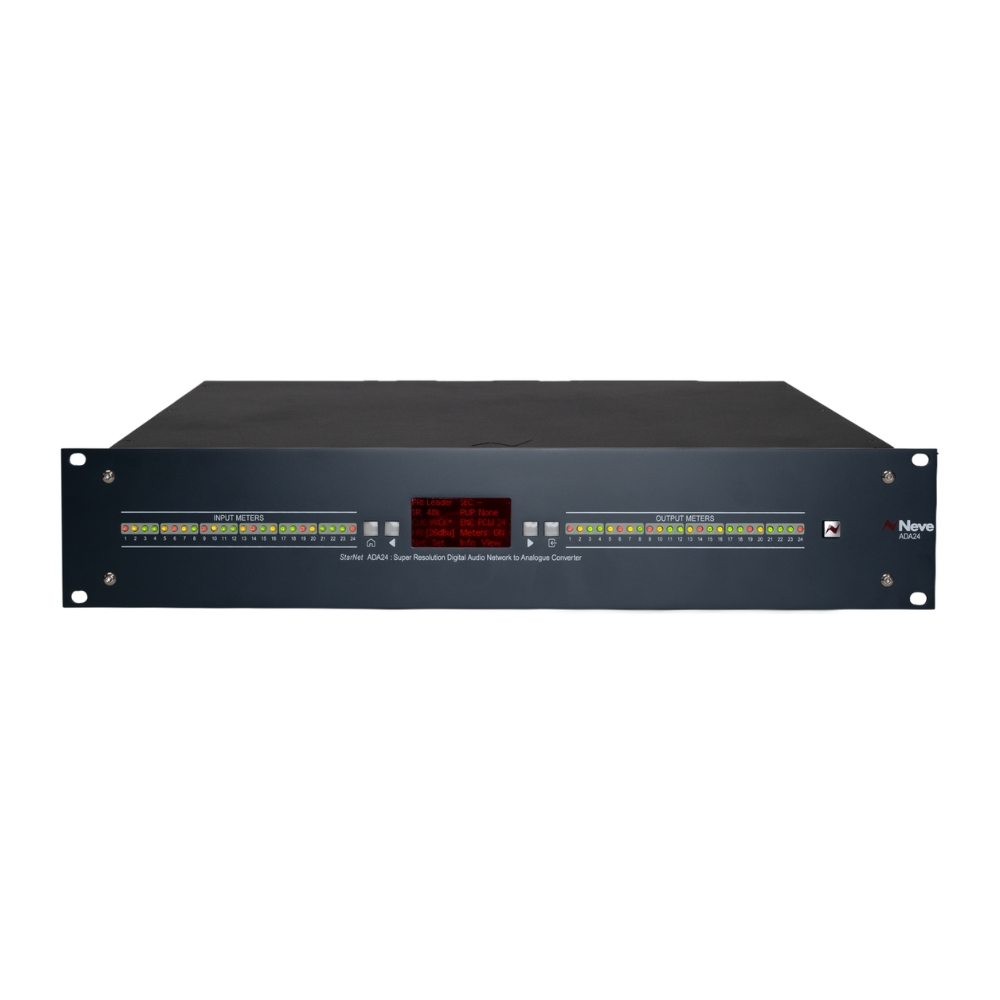

A front-panel OLED display provides immediate visibility of system parameters, including sample rate, bit depth, clock source, network status, and full metering for all analogue I/O. Dedicated LEDs indicate signal presence and clipping across all 24 input and output channels.

Using the Neve ADA24 Remote App, engineers can remotely manage output attenuation and muting across the network, offering enhanced protection for speakers, amplifiers, and sensitive analogue equipment.

Engineered for Reliability

An external universal-voltage power supply and fan-assisted airflow ensure efficient thermal management and stable long-term operation, even in tightly packed racks or high-demand technical facilities.

FEATURES

• Mastering-grade 24×24 analogue AD/DA conversion over Dante™
• 32-bit integer resolution with sample rates up to 192 kHz
• Exceptional dynamic range: >119 dBFS (ADC) and >122 dBFS (DAC)
• Selectable analogue headroom: +18, +24, or +26 dBu
• 24 balanced analogue inputs and 24 balanced analogue outputs via DB25
• Analogue output stages derived from Neve 88RS console technology
• Wide analogue bandwidth exceeding 100 kHz
• Precision low-jitter clocking with word clock I/O
• Dual Dante Ethernet ports for primary/secondary redundancy
• Daisy-chain capable for scalable networked audio systems
• Front-panel OLED display with full system status and metering
• Remote output attenuation and muting via Neve ADA24 Remote App
• External universal-voltage PSU for global operation
• Engineered for studio, broadcast, live sound, and post-production use

TECHNICAL SPECS

General Specifications:

• 24 x Analogue Line Inputs (2x D-Sub 25-pin Tascam Configuration)
• 24 x Analogue Line Outputs (2x D-Sub 25-pin Tascam Configuration)
• Word Clock Sync In/Out
• Selectable Headroom from +18, +24, +26dB
• 2 x Dante Ethernet ports (Primary & Secondary)
• 1 x Communications Ethernet port
• External PSU
• Voltage: 90-240V
• Current: 0.14A @240V, 0.33A @90V
• Heat Dissipation: 30 watts

Audio Performance:

• Headroom: Selectable +18, +24, or +26dBu
• Distortion: (THD+N): Typically 0.0008% (measured at 1kHz  +26dBu setting 2Hz to 92kHz filter)
• Dynamic Range ADC: >119dBFS
• Dynamic Range DAC: >122dBu
• General Noise: <-96dBu (A-wtg)
• Frequency Response: +/- 0.1dBu 5Hz – 22kHz (+/- 3dBu 2Hz – 92kHz)

Dimensions:

• Width: 483mm (19 inches)
• Height: 88mm (3.5 inches)
• Depth: 350mm (13.78 inches)

Weight: 5.075 kg (7.9 lbs)
