Merging Technologies ANUBIS PRO SPS – Professional RAVENNA/AES67 Audio Interface & Monitor Controller

OVERVIEW

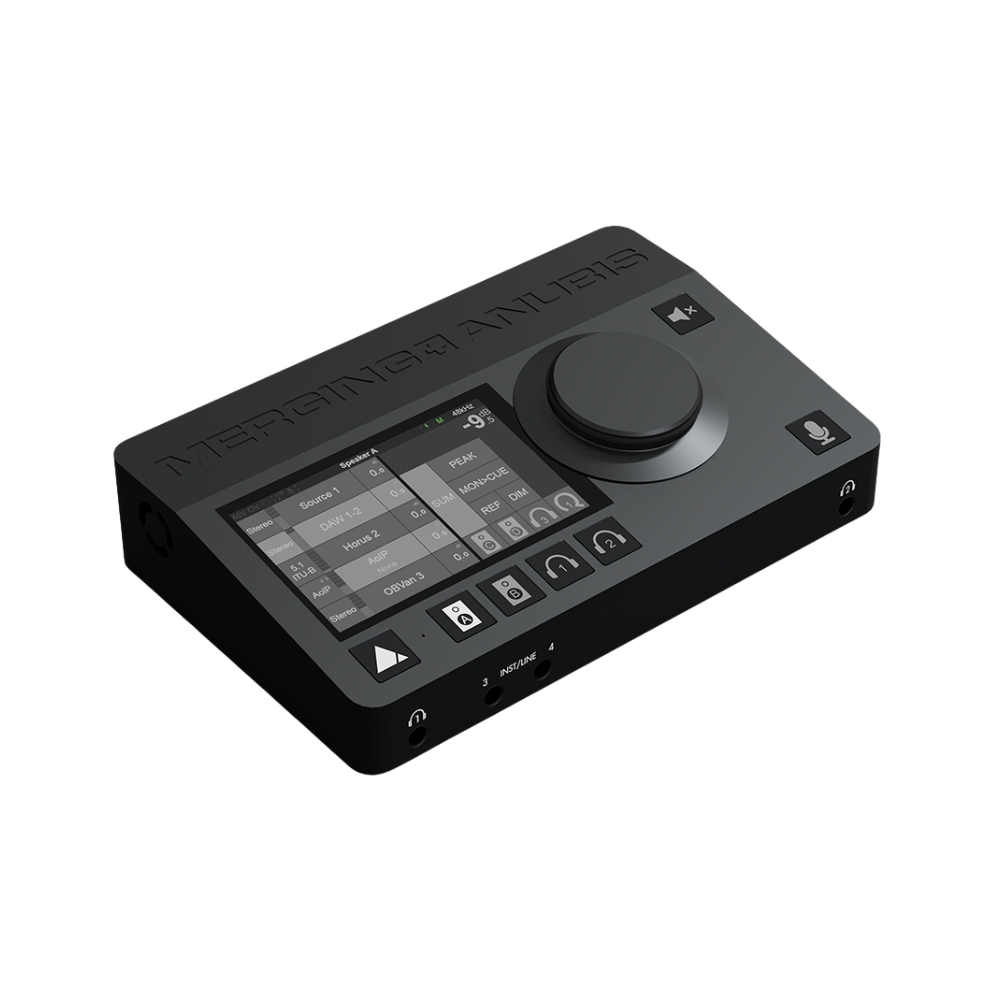

The Merging Technologies ANUBIS PRO SPS is a reference-grade network audio interface that combines pristine AD/DA conversion, comprehensive monitor control and powerful DSP into one remarkably compact desktop unit. Designed and assembled in Switzerland, it delivers mastering-quality audio performance with support for 32-bit PCM audio up to 192kHz, making it an outstanding solution for professional recording studios, broadcast facilities, post-production, immersive audio and mobile recording applications. The SPS model further enhances reliability by incorporating ST 2022-7 Seamless Protection Switching, providing redundant network connectivity for mission-critical AoIP workflows.

Featuring two premium microphone/line preamps, two additional instrument/line inputs, four balanced analogue outputs and two independent mastering-grade headphone amplifiers, ANUBIS PRO SPS delivers exceptional sonic performance with ultra-low distortion, wide dynamic range and flexible routing. Its intuitive capacitive touchscreen, multifunction rotary encoder and configurable hardware controls provide immediate access to monitoring, talkback, cue mixes and routing, while remote operation via web browser or tablet offers complete workflow flexibility.

Built around the RAVENNA/AES67 networking standard, ANUBIS PRO SPS integrates seamlessly into modern IP-based audio infrastructures while remaining fully scalable through Merging’s Hapi and Horus systems. Whether serving as a compact recording interface, monitor controller, broadcast audio terminal or immersive monitoring hub, it delivers the uncompromising performance and reliability that have made Merging Technologies a benchmark in professional audio.

KEY HIGHLIGHTS

Reference-Grade Network Audio Interface

ANUBIS PRO SPS combines mastering-quality analogue circuitry with high-performance AD/DA conversion to deliver exceptional audio quality for recording, monitoring, broadcast and post-production workflows.

2022-7 Seamless Protection Switching

Designed for mission-critical broadcast environments, the SPS version supports ST 2022-7 Seamless Protection Switching, providing redundant network paths for uninterrupted audio over IP operation.

Professional Monitor Controller

More than simply an interface, ANUBIS features an advanced monitor controller with speaker selection, talkback, cue mixes, surround monitoring, bass management and immersive audio support.

Premium Microphone Preamps

Two mastering-grade microphone preamps deliver ultra-low noise, exceptional headroom and transparent audio capture, complemented by dedicated instrument and line inputs for maximum recording flexibility.

Intuitive Touchscreen Workflow

A high-resolution capacitive touchscreen, multifunction rotary encoder and programmable hardware buttons provide fast, intuitive operation without relying on external software.

Built for RAVENNA & AES67 Networks

Native RAVENNA/AES67 connectivity enables seamless integration into modern networked audio systems while allowing expansion with additional Merging Technologies interfaces and converters.

Swiss Engineering

Designed, assembled and tested in Switzerland, ANUBIS PRO SPS is engineered to the exacting standards expected from one of the world’s most respected professional audio manufacturers.

FEATURES

• Professional network audio interface, monitor controller and DSP monitoring system
• Supports PCM recording and playback up to 32-bit / 192kHz
• Native RAVENNA/AES67 Audio-over-IP networking
• ST 2022-7 Seamless Protection Switching (SPS) for redundant network operation
• Compatible with NMOS-managed broadcast infrastructures
• Two mastering-grade microphone/line preamps with up to 66dB gain
• Two dedicated instrument/line inputs for guitars, basses and synthesisers
• Four balanced analogue line outputs
• Two independent mastering-quality stereo headphone outputs
• Integrated DSP mixer with ultra-low-latency monitoring
• Comprehensive monitor controller with speaker management and cue mixing
• Configurable touchscreen interface with multifunction rotary encoder
• Built-in talkback microphone and flexible talkback routing
• Remote control via tablet or web browser
• Standalone operation without requiring a computer
• Expandable through Merging Hapi and Horus networked audio systems
• Supports mono, stereo, surround and immersive monitoring workflows
• Premium machined anodised aluminium enclosure
• Powered via PoE or external DC supply
• Designed, assembled and tested in Switzerland.

TECHNICAL SPECS

General

Product Type: Professional Network Audio Interface & Monitor Controller

Audio Networking: RAVENNA / AES67

Network Redundancy: ST 2022-7 Seamless Protection Switching (SPS)

Maximum Resolution: 32-bit PCM

Sample Rates: 44.1kHz to 192kHz

DSP Processing: Integrated ultra-low-latency DSP mixer

Operation: Standalone or computer-connected

Remote Control: Web browser and tablet compatible

Built-in Talkback Microphone: Yes

Analogue Inputs

2 × Mic/Line Combo XLR/TRS Inputs

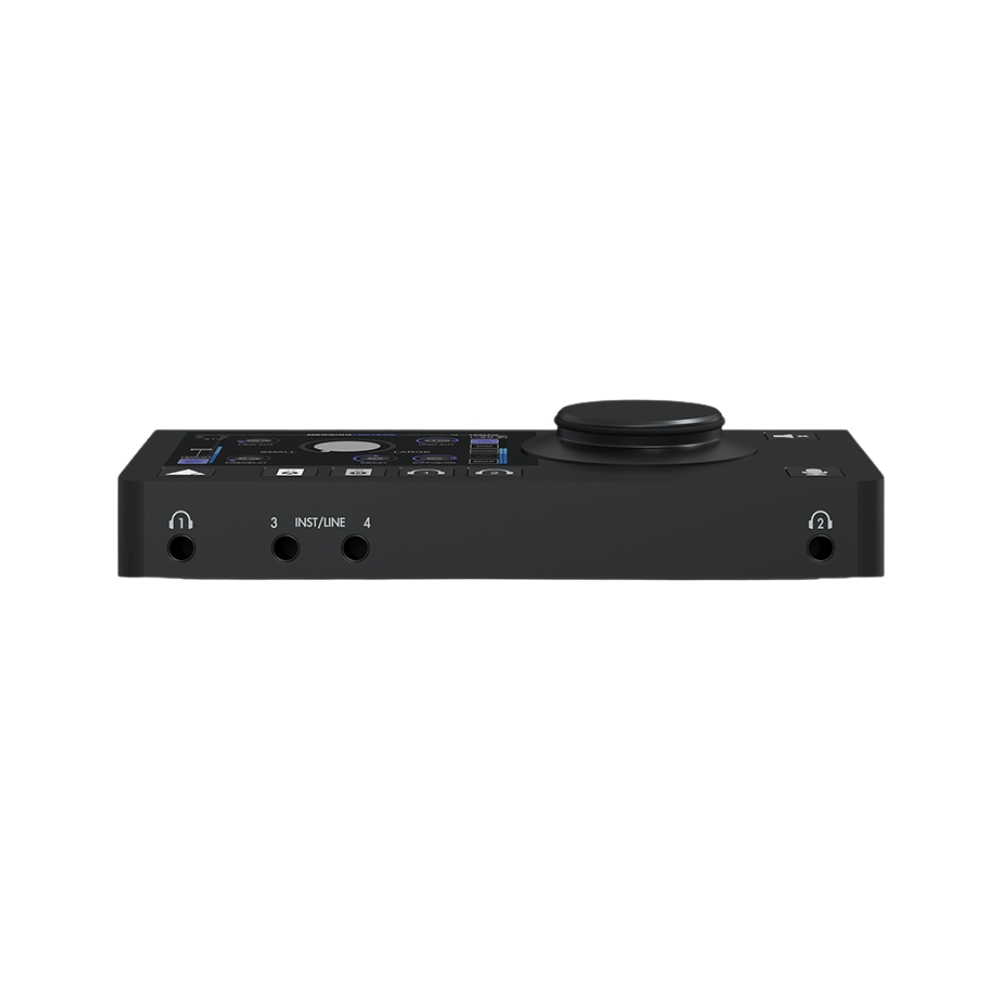

2 × Instrument/Line ¼” Inputs

Microphone Gain: 0–66dB

Phantom Power: +48V (switchable)

High-Pass Filter: 80Hz

Phase Reverse: Per channel

Analogue Outputs

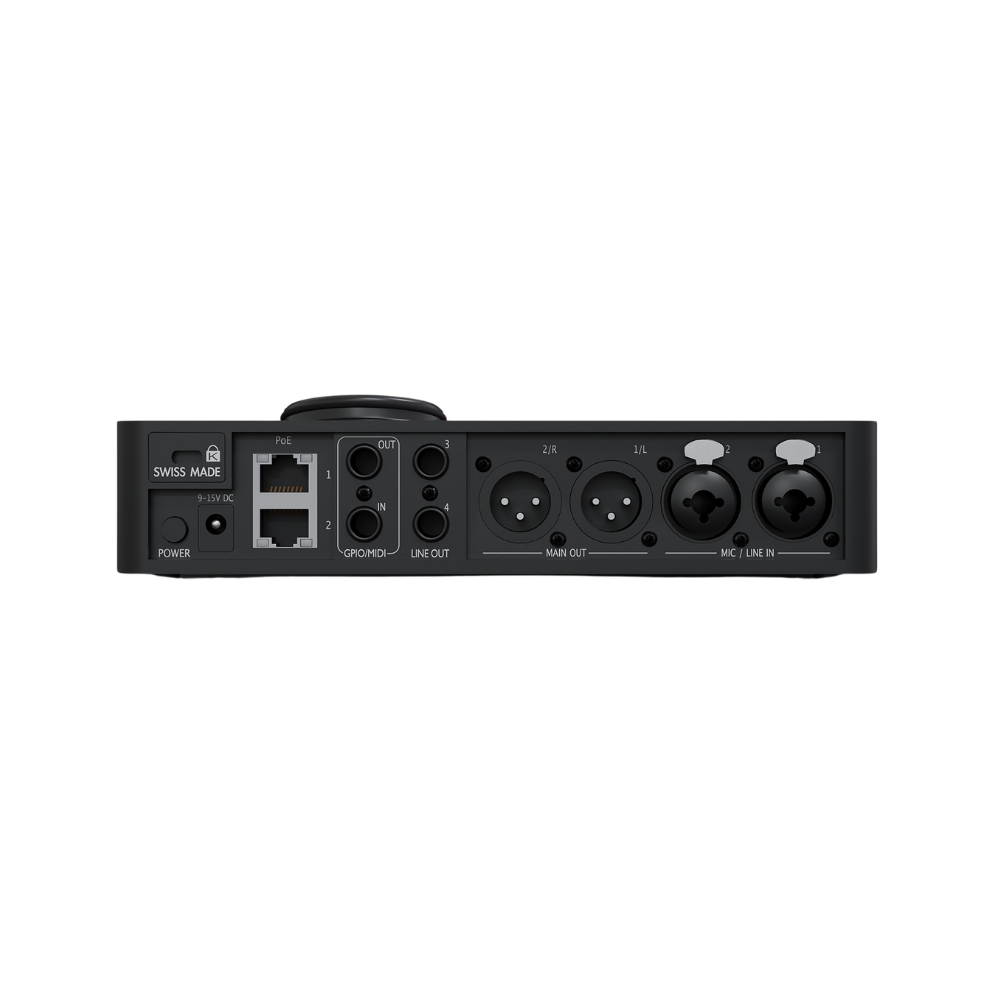

2 × Balanced XLR Main Outputs

2 × Balanced ¼” TRS Line Outputs

2 × Independent Stereo Headphone Outputs

Audio Performance

Dynamic Range:

• Mic Inputs: Up to 137dB (A-weighted)
• Line Inputs: Up to 139dB (A-weighted)
• Instrument Inputs: Up to 136dB (A-weighted)
• Outputs: 123dB (A-weighted)

THD+N:

• Mic Inputs: <0.0003%
• Line Outputs: <0.0003%

Equivalent Input Noise: Better than -125dBu (A-weighted)

Connectivity

1 × Gigabit Ethernet (RAVENNA / AES67)

GPIO / MIDI I/O

PoE compatible

External DC Power Input

Monitoring

Advanced Monitor Controller

Multiple Speaker Set Management

Cue Mixes

Bass Management

Surround & Immersive Audio Monitoring

Talkback Functions

Downmix Support

User Interface

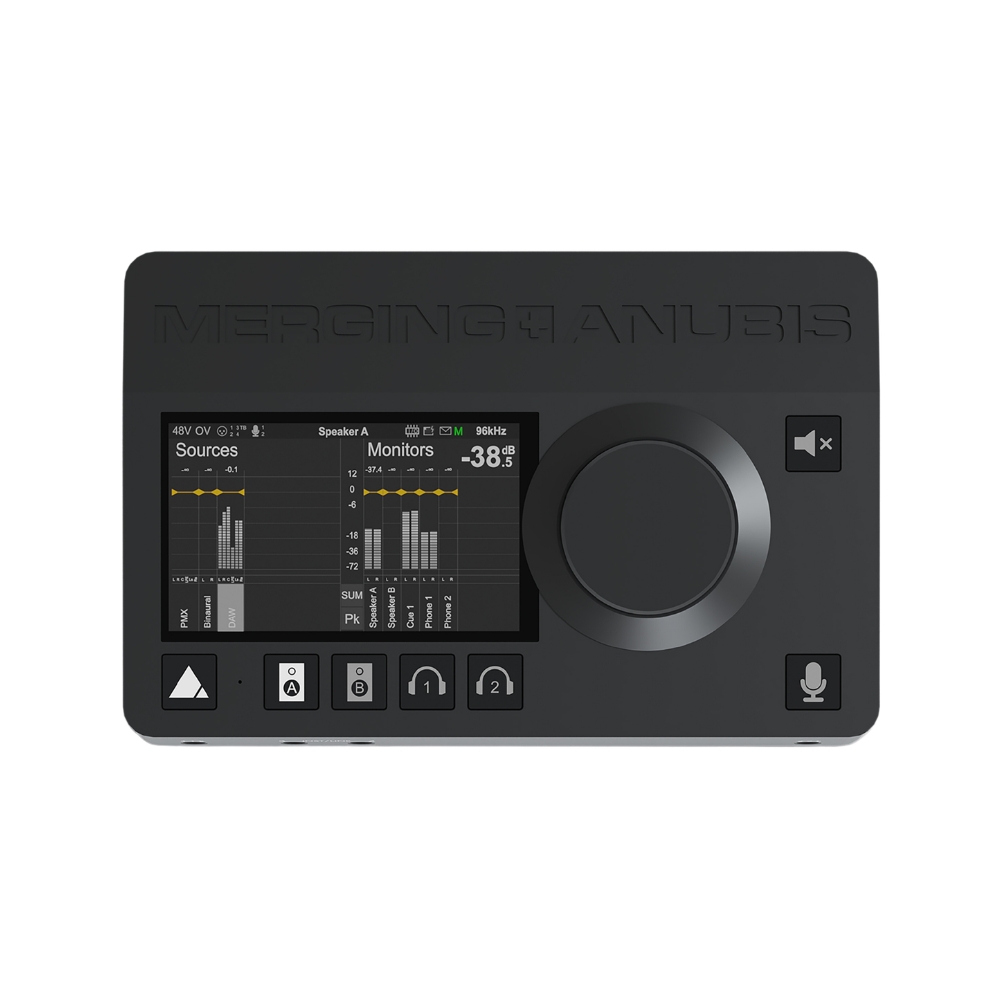

Capacitive Colour Touchscreen

Multifunction Rotary Encoder

RGB Backlit Hardware Buttons

Standalone Operation

Physical

Housing: Precision-machined anodised aluminium

Dimensions:

• Width — 200mm
• Depth — 128mm
• Height — 40mm

Weight: 950g

Country of Origin: Designed and assembled in Switzerland.
