Telegrapher GORILLA-S – Active Analog 3-Way Midfield Studio Monitor – Crow Black (Pair)

OVERVIEW

The Telegrapher GORILLA-S is an analog, active three-way midfield monitor that delivers powerful bass, accurate midrange, and crisp high-end clarity for a superior, detailed listening experience.

Designed for audio professionals who demand precision and accuracy in mixing and mastering, GORILLA-S features a unique combination of rich analog warmth, dedicated amplification for each frequency range, and a sealed enclosure for exceptional transient response.

The GORILLA-S is identical to the GORILLA in terms of sound characteristics, except that it includes two woofers, providing dramatic headroom and a 6 dB boost. It can be used as a centre speaker alongside two GORILLAs, or as a left or right speaker in a stereo setup.

GORILLA-S features dedicated drivers for low, mid, and high frequencies, ensuring comprehensive and clear reproduction across the audio spectrum and enabling precise adjustments during mixing and mastering. Additionally, each driver has its own built-in amplifier that’s optimised for the driver’s specific frequency range. This leads to greater efficiency and control over the sound output, ensuring powerful and nuanced audio.

The sealed enclosure contributes to an impressive transient response and the ability for GORILLA-S to reproduce audio signals with high fidelity and minimal phase distortion. The result is clean, accurate sound that’s particularly beneficial for critical listening and detailed audio work. The sealed enclosure also enhances GORILLA-S’s ability to deliver tight, precise bass and a balanced soundstage, crucial for assessing the depth and positioning of instruments in a mix.

GORILLA-S offers an all-analog design that provides warm, rich sound, ensuring that audio retains its natural qualities to deliver a rich, musical, and engaging listening experience.

Available in five (5) beautiful colours, featuring a premium, soft-touch, silky matte finish:

• Crow Black
• Telegrapher Gray
• Jaipur Orange
• Menton Yellow
• Trooper White

Sold as a Pair

FEATURES

• Active analog 3-way midfield studio monitors (pair)
• Dual 8.5″ woofers for increased headroom and a 6 dB boost
• Powerful bass, accurate midrange and crisp high-end clarity
• Designed for professional mixing and mastering
• Three dedicated amplifiers per speaker
• Class D amplification
• 2 x 500 W + 100 W amplifier power per speaker
• 4-driver, 3-way design
• 2 x 22 cm / 8.5″ rigid black anodised aluminium cone woofers
• 12 cm / 4.5″ patented paper cone mid driver
• 2.5 cm / 1″ coated textile diaphragm tweeter
• Maximum power rating: 1200 W
• RMS power rating: 480 W
• Sealed enclosure for excellent transient response and minimal phase distortion
• Active analog crossover
• All-analog design for rich, warm and musical sound
• Tight, precise bass and balanced soundstage
• Frequency response: 35 Hz – 20 kHz
• Peak SPL: 113 dB @ 1 metre
• Max SPL (Peak): 117 dB
• Balanced analog XLR input
• Unbalanced analog RCA input
• Can be used as a centre speaker with two GORILLA monitors
• Can be used as a left or right speaker in a stereo setup
• Amplifier protection with automatic shutdown and LED alerts for electrical faults, high-frequency signals, overheating and sustained clipping
• User-selectable standby mode
• One carrying box per speaker
• Available in five (5) premium soft-touch matte finishes: Crow Black, Telegrapher Gray, Jaipur Orange, Menton Yellow, and Trooper White

TECHNICAL SPECS (Per Monitor)

Frequency Response: 35 – 20 kHz

f3: 61.5 Hz

f6: 50.5 Hz

Enclosure Type: Sealed

Crossover Type: Active, Analog

Peak SPL: 113 dB (@ 1 meter)

Max SPL (Momentary): TBD

Max SPL (Peak): 117 dB

Amplifiers: 3 per speaker

Amplifier Type: Class D

Amplifier Power: 2 x 500 W + 100 W

Amplifier THD + N: %0.0018 + %0.0016

Input: Balanced (Analog) XLR or Unbalanced (Analog) RCA

Number of Drivers: 4 (3-Way)

• Woofers: 2 x 22 cm / 8.5” – Rigid Black Anodised Alu Cone
• Mid Driver: 12 cm / 4.5” – Patented Paper Cone
• Tweeter: 2.5 cm / 1” – Coated Textile Diaphragm

Safety: Shutdowns and LED Alerts*

Power Rating Max: 1200 Watts

Power Rating RMS: 480 Watts

Min Voltage: 110-120 Volts AC +-%10

Max Voltage: 200-240 Volts AC +-%10

Voltage Frequency: 47-63 Hz

AC Connector: 3-pin IEC 250 Volts AC, 10A Male

Stand By: User controllable (On 120 min / Off)

Dimensions (H x W x D): 32 cm x 68 cm x 30 cm

Weight: 31 kg

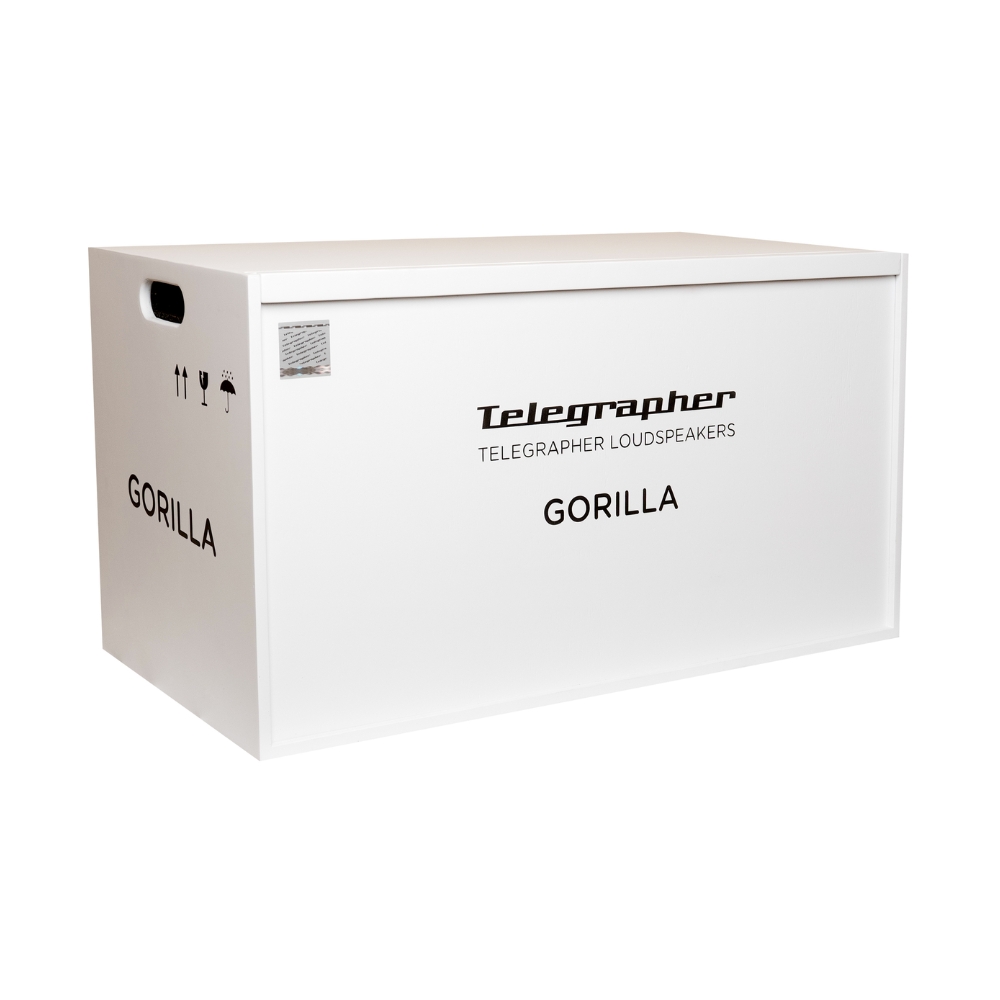

Carrying Box: One box per speaker

*Amplifiers automatically shut down in response to electrical failures, high-frequency signals, or overheating, signalled by a red LED. A white LED indicates normal operation, and red flashing warns of audio clipping. Continuous clipping triggers a protective shutdown.
