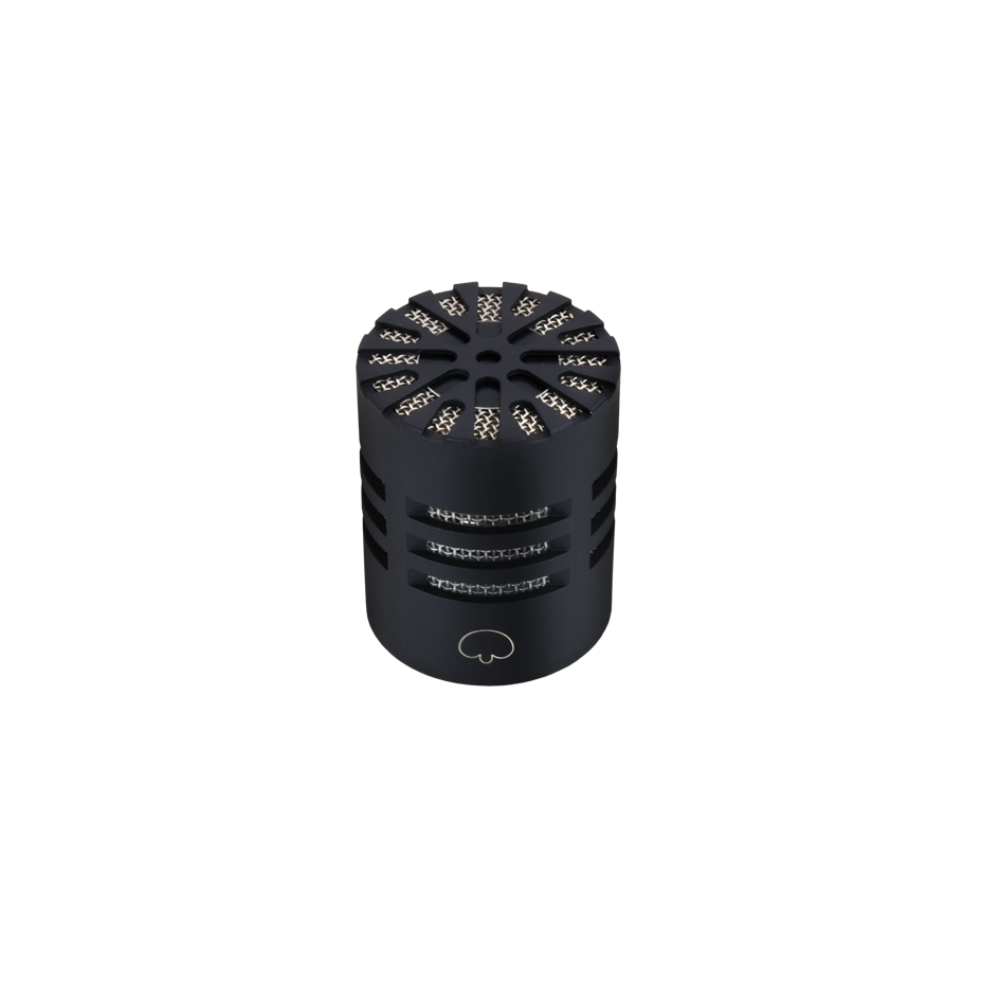

Microtech Gefell M 41 – Condenser Microphone Capsule (w/ Supercardioid Polar Pattern) for the Generation 4 Modular Microphone System

OVERVIEW

The Microtech Gefell M 41 is a supercardioid capsule engineered for applications where maximum directionality and isolation are required. Its tighter pickup pattern compared to a standard cardioid allows it to focus precisely on the desired sound source while effectively minimising ambient noise and bleed from surrounding elements. This makes it particularly valuable in complex recording environments and live sound situations.

Featuring a high-quality PE diaphragm, the M 41 delivers detailed and consistent sound reproduction with excellent transient response. Its clarity and precision make it well-suited for speech, vocals, and instrument recording where articulation and definition are essential.

As part of the Generation 4 modular system, the M 41 offers seamless integration with compatible microphone amplifiers, allowing engineers to quickly adapt their setup for different recording scenarios without compromising audio quality.

KEY HIGHLIGHTS

Tight Supercardioid Pickup

Provides highly focused sound capture with strong rejection of off-axis noise, ideal for controlled recording environments.

Enhanced Source Isolation

Reduces bleed from surrounding sources, making it perfect for live sound and multi-source recording setups.

High Clarity and Detail

Captures subtle nuances with precision, ensuring accurate and articulate recordings.

Modular Compatibility

Easily interchangeable with other capsules, offering flexibility for a wide range of applications.

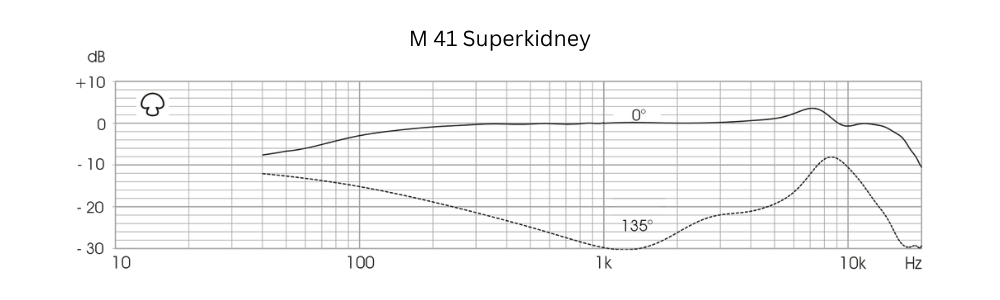

FREQUENCY RESPONSES

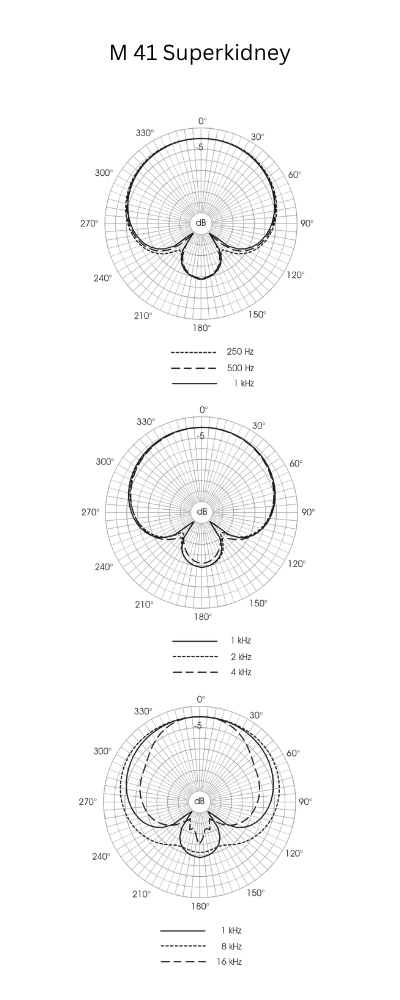

POLAR PATTERN DIAGRAMS

FEATURES

• Small-diaphragm condenser capsule
• Supercardioid polar pattern
• PE diaphragm construction
• High directionality and isolation
• Clear and detailed sound reproduction
• Ideal for live, broadcast, and studio use
• Compatible with the Generation 4 modular system
• Compact and lightweight design

TECHNICAL SPECS
