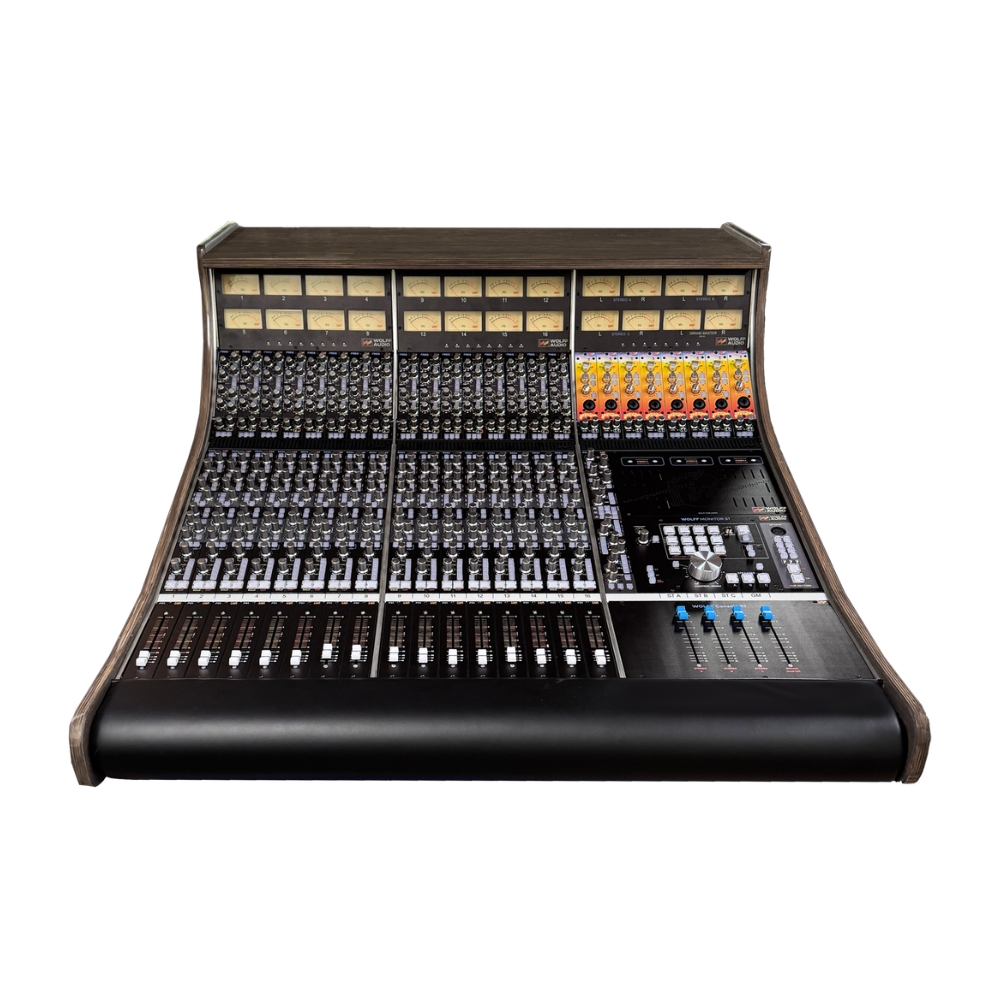

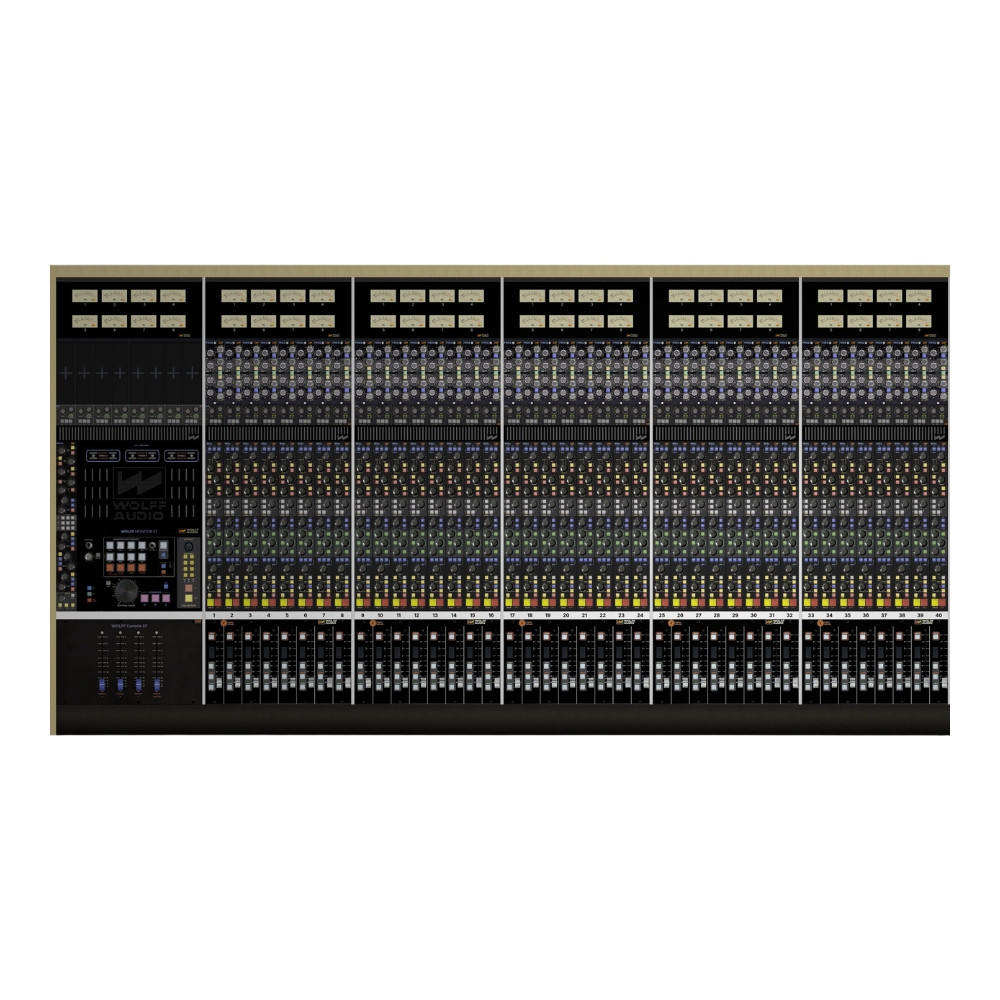

Wolff Audio Console ST-40 – 40-Channel Analog Console w/ FX Returns, 40 Wolff Audio Preamps & 40 FREQ EQs

OVERVIEW

The Wolff Audio Console ST‑40 represents over four decades of console design expertise distilled into a modern flagship analog mixing desk. Designed by renowned engineer Paul Wolff, the ST Series consoles combine pristine audio quality with an extremely flexible workflow tailored for modern production environments.

Each of the ST-40’s 40 channels is equipped with a Wolff microphone preamp and FREQ equalizer, delivering clean, detailed capture while preserving the natural character of the source. The console’s balanced internal circuitry operates at +4 dBu, providing exceptional headroom, low noise, and excellent interference rejection. With three simultaneous inputs per channel, extensive routing, and localised summing architecture, the ST-40 offers the power and flexibility required for complex recording and mixing sessions.

The console is equally comfortable in fully analog workflows or hybrid DAW environments. Its inline architecture allows seamless transitions between tracking and mixing, while modular tone cards in the mix buses enable engineers to shape the sonic signature of the console to emulate classic desk styles. With integrated 500 Series expansion, customizable layout options, and modular bucket construction, the ST-40 can be configured to suit studios of virtually any size or workflow.

“We share an obsessively crazy commitment to creating the best tools you never imagined” — Paul Wolff

KEY HIGHLIGHTS

Flagship Analog Console Design

Designed by Paul Wolff, the ST-40 embodies decades of console design innovation, delivering world-class analog performance for professional recording and mixing environments.

40 Wolff Preamps and FREQ EQ Modules

Each channel includes a Wolff microphone preamp and FREQ EQ, providing pristine capture, flexible tone shaping, and the musical character expected from high-end analog consoles.

Advanced Routing and Summing

Every channel features extensive routing options with three simultaneous inputs, multiple buses, inserts with blend control, and flexible summing architecture for complex production workflows.

Hybrid DAW Workflow Integration

The inline console design allows seamless switching between tracking and mixing, making the ST-40 ideal for hybrid studios combining analog hardware with digital audio workstations.

Modular Tone Cards for Mix Bus Character

Engineers can install different tone cards in the stereo mix buses, enabling the console to emulate the sonic characteristics of classic analog desks.

Fully Modular and Customizable Architecture

Using a bucket-based modular design, the console can be configured with different channel counts, module combinations, and layout options to suit any professional studio.

FEATURES

• 40-channel analog recording console
• 40 x Wolff microphone preamps
• 40 x FREQ EQ modules
• Inline console design for tracking and mixing
• Three simultaneous inputs per channel
• Three stereo mix buses
• Eight sends (two mono, one stereo assignable)
• Insert points with blend control
• Integrated 500 Series expansion capability
• Customizable mix bus tone cards
• Analog or LCD metering options
• Balanced internal circuitry with high headroom
• Localised summing architecture for low noise
• Modular bucket construction for customization
• Designed and built in the USA

TECHNICAL SPECS

Model: WOL-ST40

Console Type: Analog recording and mixing console

Channels: 40

Mic Preamps: 40 Wolff preamps

EQ: 40 FREQ EQ modules

Stereo Buses: 3

Aux Sends: 8 (2 mono, 1 stereo assignable buses)

Inputs per Channel: 3 simultaneous inputs

Operating Level: +4 dBu

Metering: Analog VU (channel and master)

500 Series Expansion: Integrated

Tone Cards: IC, IC, IC (configurable options available)

Master Section: 802M Stereo Master

Monitoring: Monitor ST

Master Fader: Included

VU Bridge: Included

FX Module: Included

Faders: Manual 100mm

Construction: Modular bucket architecture

Manufacturing: Built in Santa Barbara, California, USA
