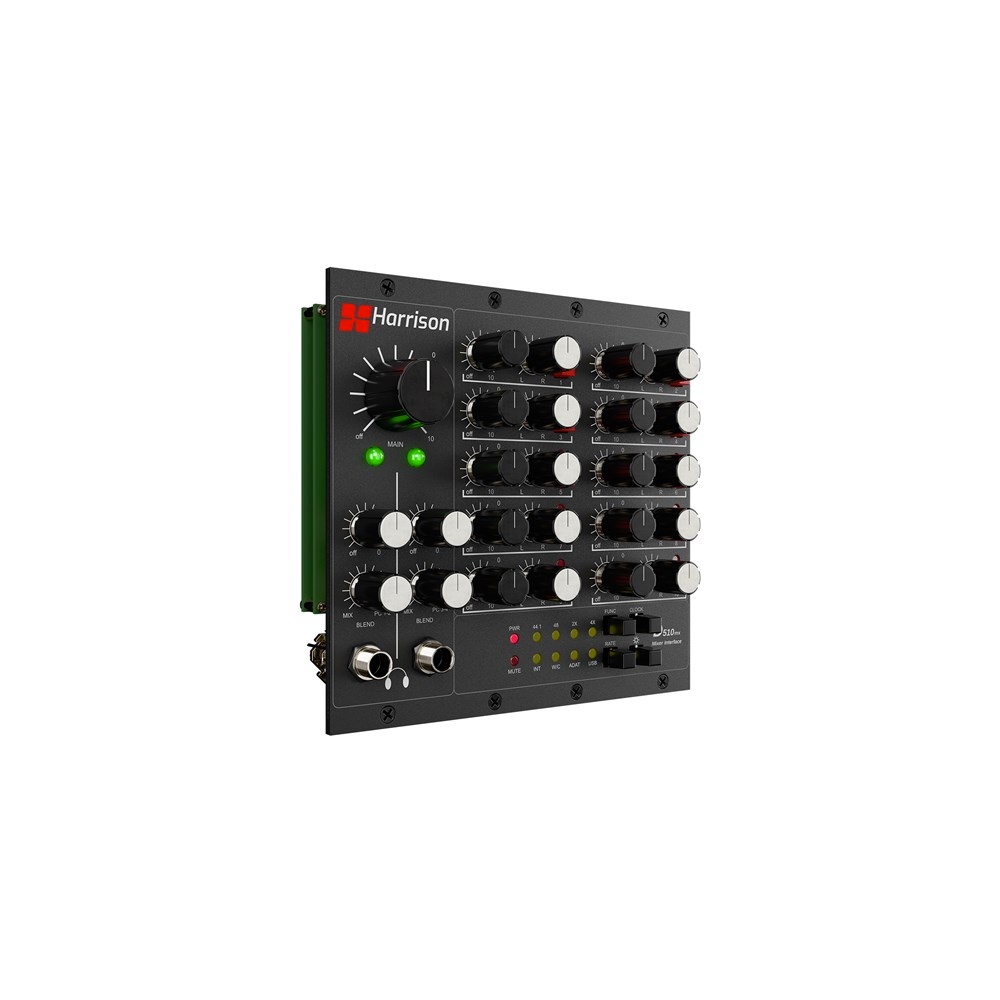

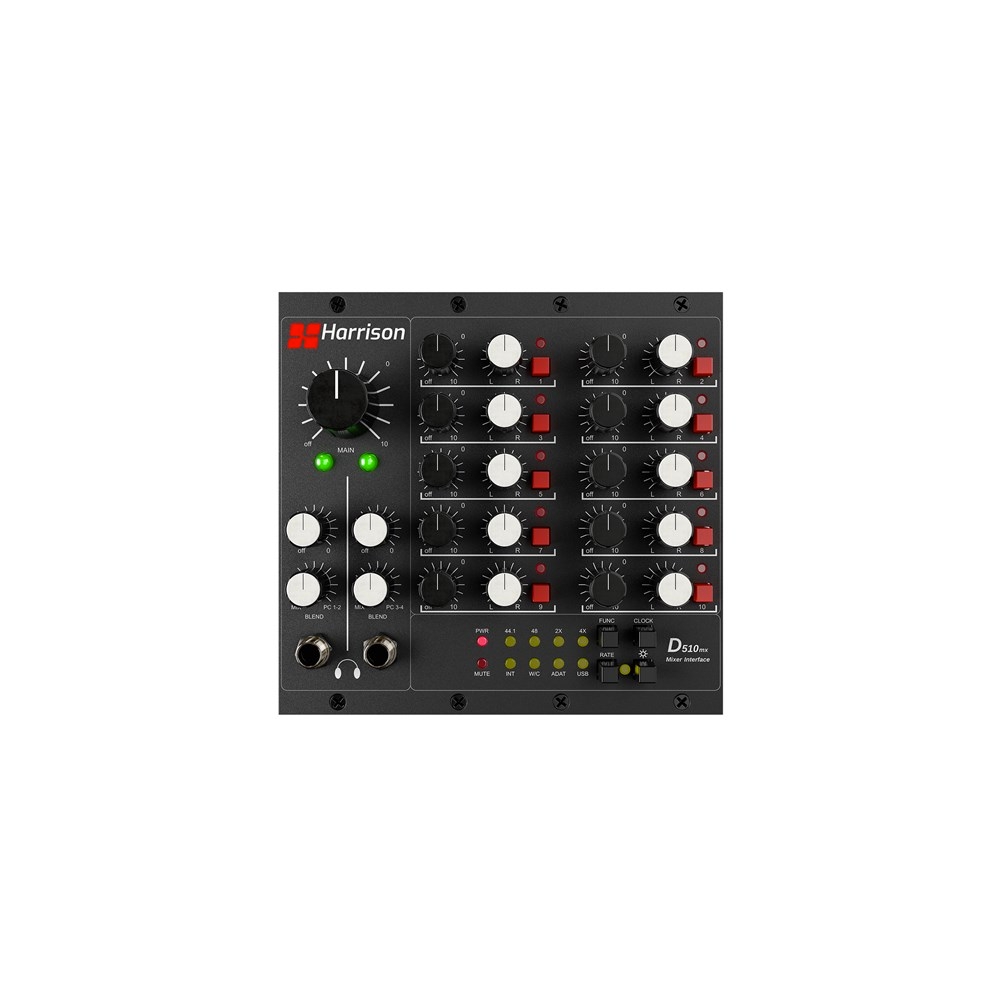

Harrison D510MX – 500 Series 10×2 Analog Summing Mixer Module

OVERVIEW

BUILD YOUR CUSTOM 500 SERIES ANALOG SUMMING MIXER

Pair the D510r with the optional D510mx mixer module to transform your system into a powerful 10×2 analog summing mixer. Designed to integrate into two slots of the Harrison D510r 500 Series rack, the D510mx gives you the flexibility to create stereo mixdowns from any of the eight remaining 500 Series module slots, alongside the two analog inputs to slots 9 and 10. With level and pan controls on each channel, plus dual independent headphone outputs with ‘blend,’ get the renowned weight and ‘3D’ depth that Harrison analog summing brings to productions while enhancing your headphone monitoring capabilities.

When used in combination with the D510dante audio interface card, the dual headphone outputs can create monitor mixes from either the direct analog output or from any connected device on the Dante network.

With an almost infinite number of configurations, the Harrison D510 rack paired with the D510mx mixer module can create an extremely powerful (and portable) eight-channel tracking system housed in only 3U – we said it was flexible!

KEY HIGHLIGHTS

Turn Your 500 Series Rack into an Analog Mixer:

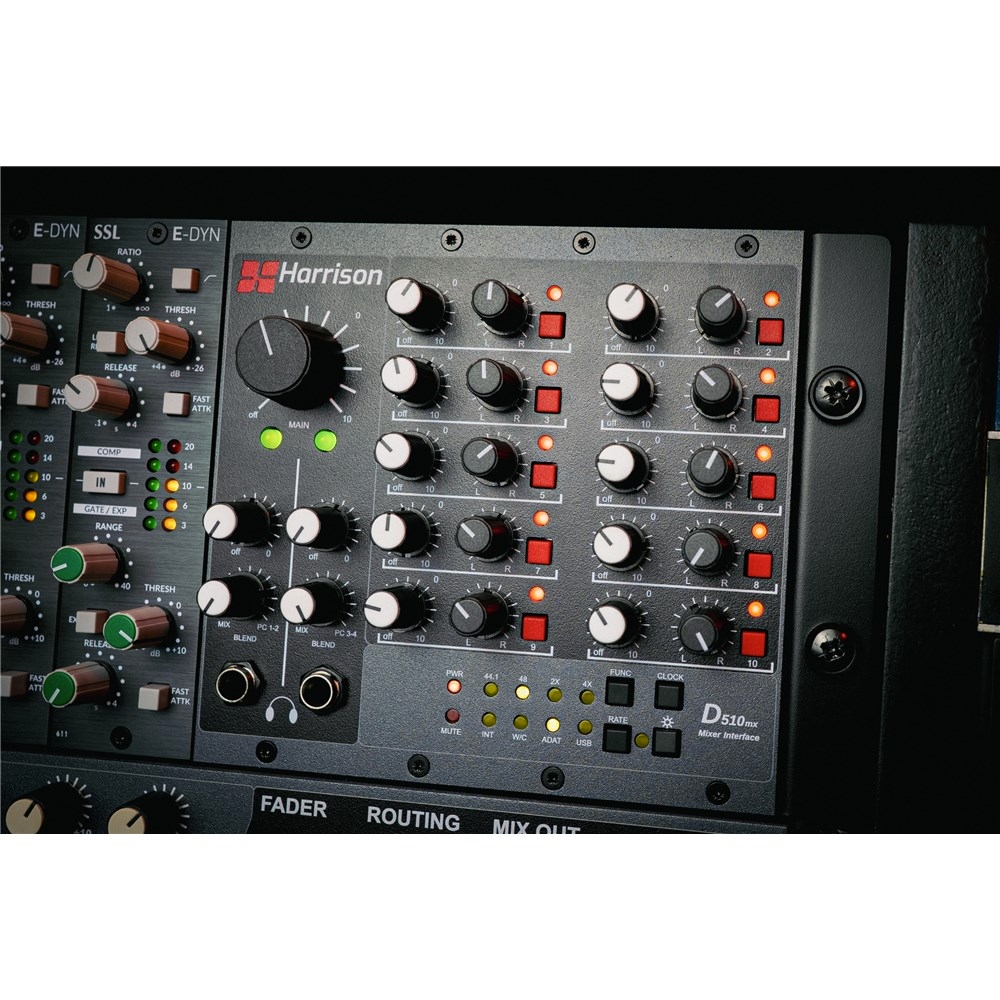

The D510MX installs into two slots of the Harrison D510r, instantly converting the system into a full-featured 10×2 analog summing mixer. Create stereo mixdowns from eight 500 Series module slots plus two dedicated analog inputs for a truly flexible hybrid workflow.

Legendary Harrison Analog Summing:

Experience the unmistakable weight, width, and three-dimensional depth Harrison is known for. The D510MX enhances digital mixes with rich analog character while maintaining exceptional clarity, ultra-low distortion, and wide dynamic range.

Precision Level & Pan Control Per Channel:

Each summing channel features intuitive level and pan controls with a musical -3 dB pan law, giving you hands-on control over stereo imaging and balance – perfect for stem mixing, hardware inserts, and hybrid productions.

Advanced Dual Headphone Monitoring:

Two independent headphone outputs with blend control provide flexible monitoring for tracking, mixing, and overdubs. When paired with the optional D510Dante interface, headphone mixes can be sourced from analog inputs or directly from the Dante network.

Compact, Portable, and Exceptionally Flexible:

With near-limitless routing options, the D510MX enables the creation of a powerful eight-channel Harrison tracking or summing system in just 3RU, making it ideal for studios, mobile rigs, and live recording environments.

FEATURES

• 10×2 analog summing mixer module for the Harrison D510r
• Occupies two slots in the D510r 500 Series rack
• Stereo mixdown from eight 500 Series module slots
• Two additional analog inputs via slots 9 and 10
• Classic Harrison analog summing depth and clarity
• Level and pan controls on each channel
• Musical -3 dB pan law
• Dual independent headphone outputs with blend control
• Compatible with the optional D510Dante AoIP interface
• Ultra-low noise and distortion with high headroom
• Designed for hybrid mixing, tracking, and portable rigs

TECHNICAL SPECS

D510mx Inputs:

• Minimum Gain: <= -81 dB
  • Noise A-Weighted @ Min Gain: < -87 dBu

• Unity 0 dB
  • THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%
  • Noise A-Weighted @ No Gain: < -87 dBu

• Maximum Gain: 11.5 dB
  • THD+N, 1kHz 0dBu @ Max Gain: < 0.003%
  • Noise A-Weighted @ Maximum Gain: < -85 dBu

• Maximum Input Level: +24 dBu
• Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB
• Pan – 3dB Pan Law

Optional Dante Inputs (when D510dane interface is installed):

• Maximum Input Level: +24 dBu
• Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB

Main Outputs:

• Maximum Output Level – +24 dBu
• Minimum Gain: <= -85 dB
  • Noise A-Weighted @ Min Gain: < -97 dBu
• Unity 0 dB
  • THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%
  • Noise A-Weighted @ No Gain: < -87 dBu
• Maximum Gain: 9.5 dB
  • THD+N, 1kHz 10 dBu @ Max Gain: < 0.003%
  • Noise A-Weighted @ Maximum Gain: < -78 dBu

Headphone Outputs:

• Maximum Output Level – +21 dBu
• Minimum Gain: <= -78 dB
  • Noise A-Weighted @ Min Gain: < -87 dBu
• Maximum Gain: 0 dB
  • THD+N, 1kHz 20 dBu @ Max Gain: < 0.004%
  • Noise A-Weighted @ Maximum Gain: < -82 dBu

Signal Metering:

• 3x tri-colour LED signal presence
  • Green: >= -14 dBu, + 4 dBu
  • Orange: >= +4 dBu, +18 dBu
  • Red: >= + 18 dBu

Connectors: 2 x TRS Stereo Headphone Outputs
